Stainless Steel Fitting

Stainless Steel Butt Welded Tee

    Material: ASTM 304, 304L, 316,etc.


    Standard: ANSI B16.9, MSS SP 43,etc.


    Type: Straight or Reducing Tee

Specification of Straight Tee:


1.Item: Butt Welded Straight Tee
2.Specification: NPS1/2 inch-NPS48 inch
3.OD (D): 21.3 - 1219
4.Center to End (C): 25 -889
5.Center to End (M): 25 - 838
6.Material: ASTM 304, 304L, 316, 316L, 321, etc.
7.Standard: ANSI B16.9, MSS SP 43, DIN 2615, etc.

 Specification of Reducing Tee:


 1. Item: Butt Welded Reducing Tee
2. Specification: NPS1/2 inch-NPS48 inch
3. OD (D): 26.7 - 1219
4. OD(D1): 21.3 - 1168
5. Center to End (C): 29 - 889
6. Center to End (M): 29 - 838
7. Material: ASTM 304, 304L, 316, 316L, 321, etc.
8. Standard: ANSI B16.9, MSS SP 43, DIN 2615, etc.

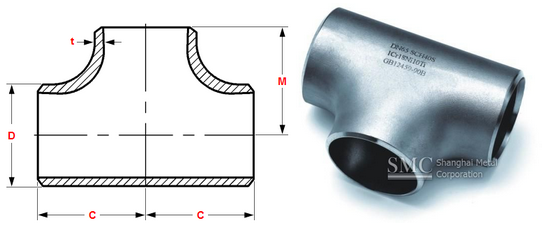

Straight Tee

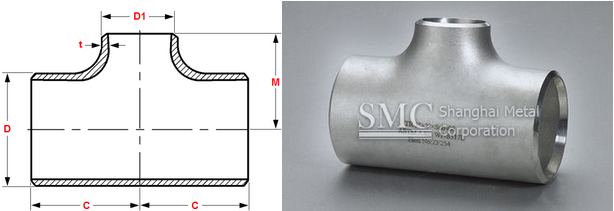

Reducing Tee

Package of Stainless Steel Pipe Fitting:


The stainless steel pipe fitting products are packed according to the international standards and regulations as well as to customer's requests. We would take great care to avoid any damage during storage or transportation of the stainless steel flanges.

Application of Stainless Steel Butt Welded Tee:


Electricity, Petroleum, Gas, Petrifaction, Chemical Industry, Ship, Heating, Papermaking, Metallurgy
