Stainless Steel Fitting

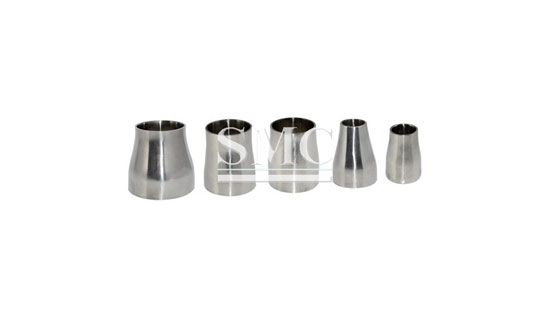

Stainless Steel Reducer

    Standard: ASME B16.9, MSS SP-43, etc


    Thickness: SCH5S-SCH80S, etc


    Size: Seamless Pipe Reducer: 1/2"~32" DN15~DN800

          Welding Pipe Reducer: 6"~60" DN150~DN1500

Specifications of Stainless Steel Reducer:


Size:
Seamless Pipe Reducer: 1/2"~32" DN15~DN800
Welding Pipe Reducer:6"~60" DN150~DN1500
Wall Thickness:
sch10, sch20, sch30, std, sch40, sch60, xs, sch80, sch100,
sch120, sch140, sch160, xxs, sch5s, sch20s, sch40s, sch80s
Max. Thickness: 200mm
Materials:
Stainless steel: ASTM/ASME A403 WP 304-304L-304H-304LN-304N
ASTM/ASME A403 WP 316-316L-316H-316LN-316N-316Ti
ASTM/ASME A403 WP 321-321H ASTM/ASME A403 WP 347-347H
Standards:

ASME B16.9, MSS SP-43, DIN 2605 and JIS B2313

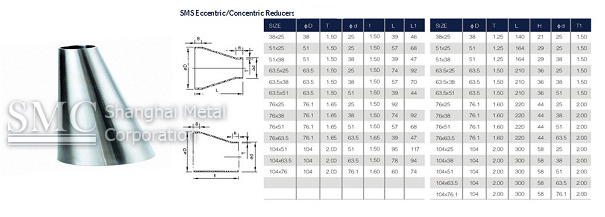

Types of Stainless Steel Reducer:


Reducer is a kind of fitting that can be used for reducing piping size. There are 2 types reducer as follows:

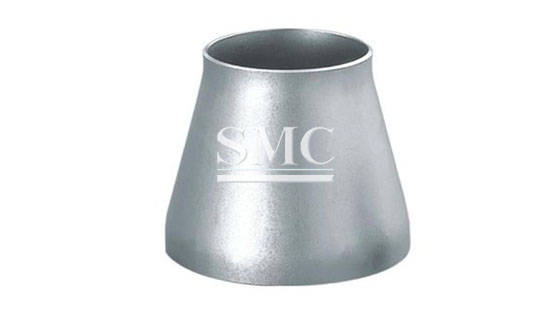

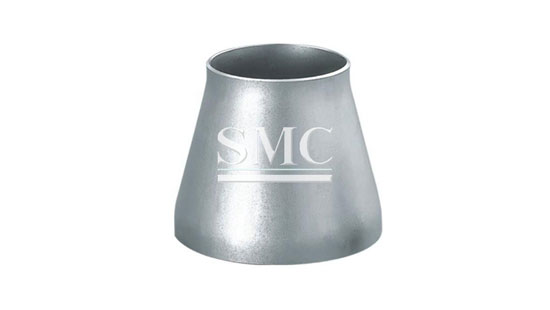

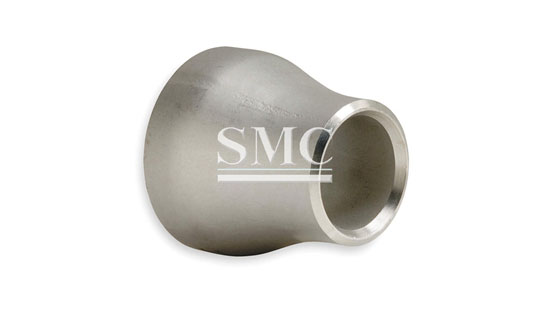

a. Concentric reducer: have a central axis (centerline) of the section between the large and small.

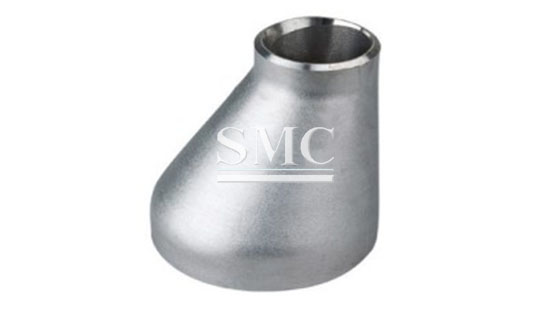

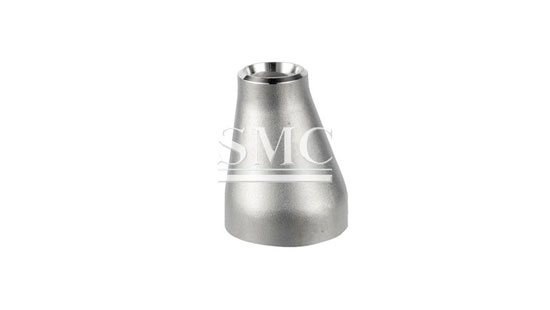

b. Eccentric reducer: the central axis has a different (offset) between a large section and small.

Concentric reducer is most commonly used and often eccentric reducer used in piping in about pump and pipe rack area.

Package of Stainless Steel Pipe Fitting:


non-fumigation wooden cases / pallets as per customers' specification

The stainless steel pipe fitting products are packed according to the international standards and regulations as well as to customer's requests. We would take great care to avoid any damage during storage or transportation of the stainless steel pipe fittings.

Application of Stainless Steel Reducer:


Pipe reducers are mainly used in the following areas:

1. Pipe reducer is useful when there is a requirement on change of fluid flow rate.

2. It is used for pump inlet to prevent cavitation.

3. It is fit for the connectors of instruments, such as flowmeter and control valve.



Industries served

our pipe reducers have found many applications in a wide range of industries, such as electricity, petroleum, natural gas, chemical, shipbuilding, heating, papermaking, metallurgy and so on.
