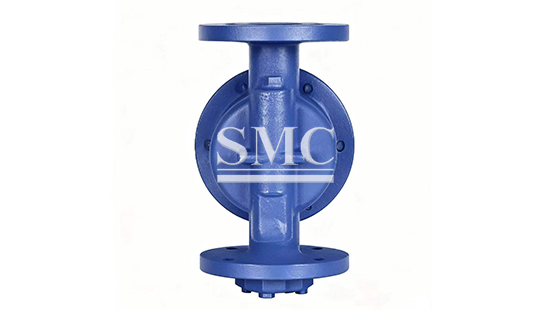

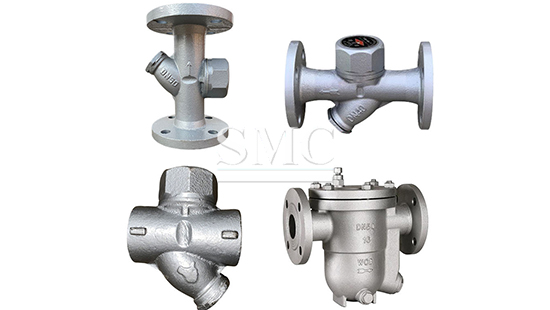

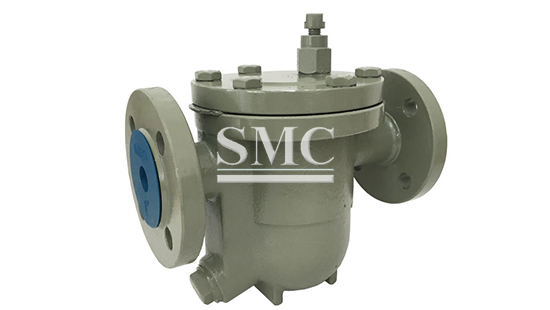

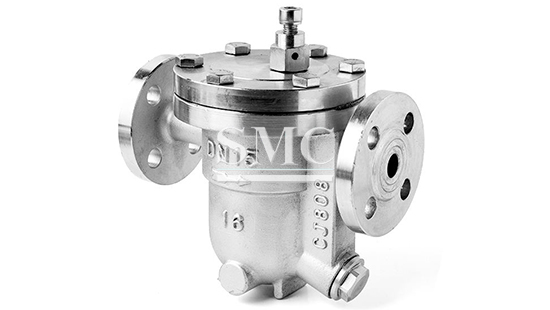

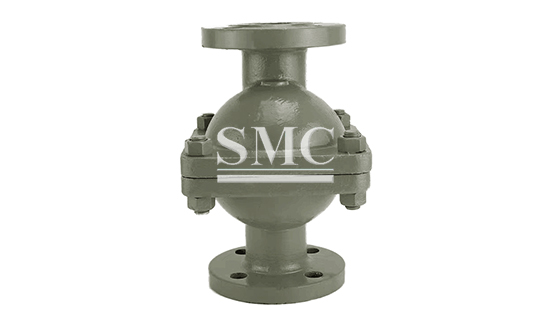

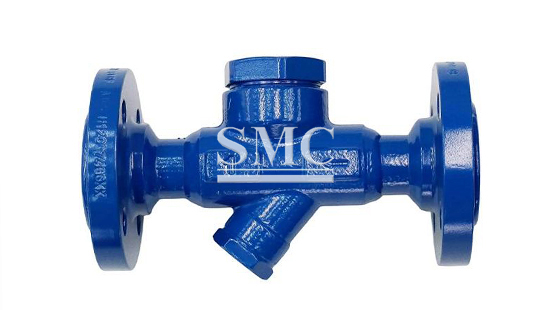

Steam Trap Valve

Material:Carbon steel, Stainless steel

Nominal diameter: DN15~DN150

Applicable media: Water, oil, air, steam, corrosive liquids

Operating temperature: 80~450℃

Product Detail | Technical Information | Packaging

Product Detail

Shanghai Metal Corporation is experienced manufacturer of steam trap valve in China since 1980s.

The steam trap valve is a type of valve, also known as a trap or drain valve, that quickly removes condensed water, air, and carbon dioxide gas from a steam system while automatically preventing steam leakage to the maximum extent possible.Widely used in industrial steam equipment, dryers, and various other industries such as petrochemicals, metallurgy, papermaking, and food large heat exchangers and other equipment are particularly suitable for working environments with high condensate flow rates.

If you want to know more about steam trap valve price, please feel free to contact us, we will reply you within 24 hours.

Material: Carbon steel, Stainless steel
Size: DN15~DN150
Normal pressure：0~4.0Mpa
Connection mode: Thread, Flange, Weld

1.Capable of continuous drainage, stable performance, large drainage volume, and small water leakage.
2.Capable of continuously discharging saturated water, resulting in less stagnant condensate in the equipment and faster temperature rise, the heating temperature is stable.
3.There is an automatic cold air exhaust device, no steam lock phenomenon, and the work is balanced without noise.

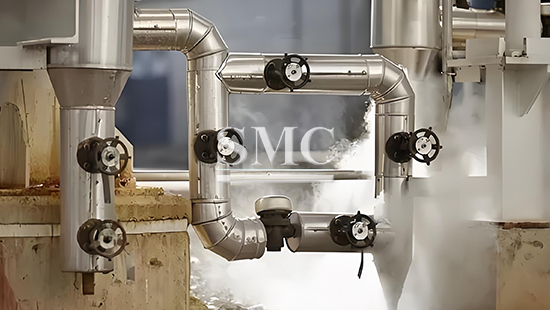

1.Petrochemical industry
2.Metallurgy industry
3.Food industry
4.Paper industry

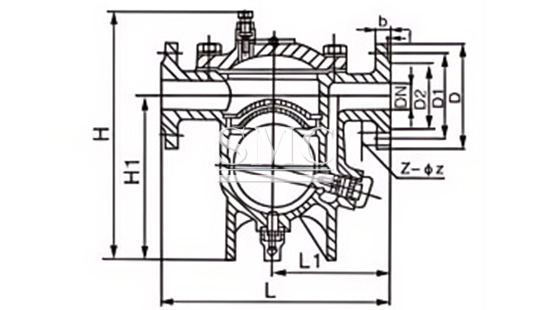

Technical Information of Steam Trap Valve:

Type	Main overall dimensions
Type	DN	L	H	D	D1	D2	b	f	Z-φd
16 CS41H-25C-B 40	15	195	195	95	65	45	14	2	4-φ14
	20	195	200	105	75	55	14	2	4-φ14
	25	215	225	115	85	65	14	2	4-φ14
16 CS41H-25C-D 40	25	270	245	115	85	65	14	2	4-φ14
	32	270	250	135	100	78	16	2	4-φ18
	40	280	290	145	110	85	16	3	4-φ18
	50	290	300	160	125	100	16	3	4-φ18
16 CS41H-25C-F 40	50	410	380	160	125	100	16	3	4-φ18
	65	410	380	180	145	120	18	3	8-φ18
	80	430	420	195	160	135	20	3	8-φ18
	100	430	440	215	180	155	20	3	8-φ18
	125	480	510	245	210	185	22	3	8-φ18
	150	480	510	280	240	210	24	3	8-φ23

Packaging of Steam Trap Valve:

Products of Shanghai Metal Corporation are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)SMC Standard

2)Customization
