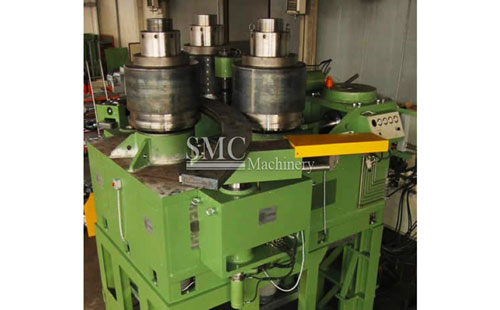

Section Bending Machines
Max bending thickness: 8mm
Suitable material: carbon steel, stainless steel, aluminium, copper
Suitable form: strip, section structure, pipe
Introduction and applications of Section Bending Machines:
Section Bending Machines are also known by the names such as Profile Bending Machine, Three Roll Bender, Angle Roll Bending Machine, sometime even by names Tube Bending or Pipe Bending Machine; having applications in the following Industries for wide range of Curving or Bending operations.
-
Our Lines of Section Bending Machine are Equipped with Two Fixed Bottom Driving Rolls and One Top Roll which is Manually Adjusted. The Bottom Driving Rolls are powered by a Bi-Directional Electric Drive Motor Coupled with Gear Reducer. These Machines are simple and Easy to Use and Affordable both in the Initial Investment and Ordinary Service.
-
•Motorized Drive of both Bottom Rolls.
•Standard Roll Set.
•Hardened Precision Threaded Shaft.
•Adjustable Lateral Guides.
•Emergency Stop.
•Foot Pedal for Right and Left Rotation, Option of Reverse-Forward Starter.
•Manual Adjustment of Upper Roll.
•Hardened Rolls for Standard Profile.
Classifications of Section Bending Machines:
1.Hydraulic Section Bending Machine
2.Horizontal Section bender
3.Vertical Section bender
Specifications of Section Bending Machines:
1. Construction: Our Section Bending Machine has been constructed in the form of a versatile pyramid type machine and is widely used in fabrication shops. It has two power driven rolls with fixed axes. The third roll is adjustable as to its distance from the fixed rolls. For easy operations, the third roll adjustment is power actuated and push button controlled.
2. Drive: The main drive to fixed axis rolls is through a high capacity gearbox.
3. Frame: The main frame of our Section Bending Machine is an extremely robust and strong structure. It is properly designed with well-proportioned members and reinforcements.
4.Controls: For easy operation and supervision, the electric control panel is mounted on the side of the machine. The standard electrical circuit consists of forward-reverse control. Bending motor controls roll travel, limiting switch and indicator lamps. A separate floor mounted control panel is available as per specific requirement. For bending very small or thin walled work piece a power driven adjustable roll is available upon request.
5.Operation and maintenance: Our Section Bending Machines are of sturdy construction so they are very easy to maintain. Operation of the machine is simple and fast to help you achieve accurate coiling and bending with minimum effort.
