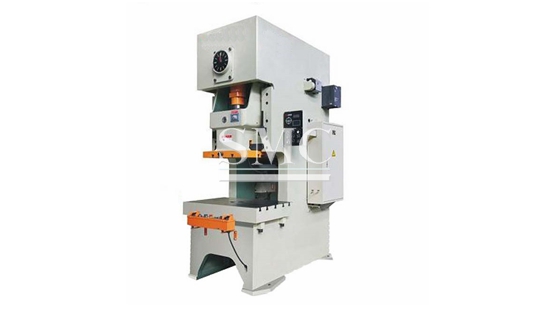

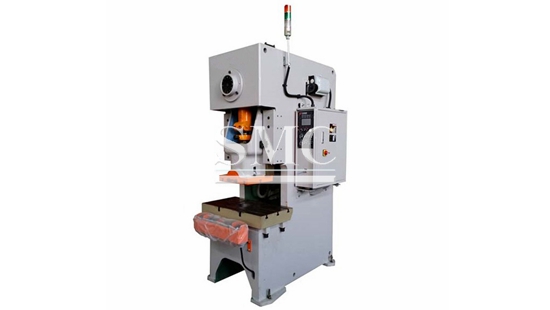

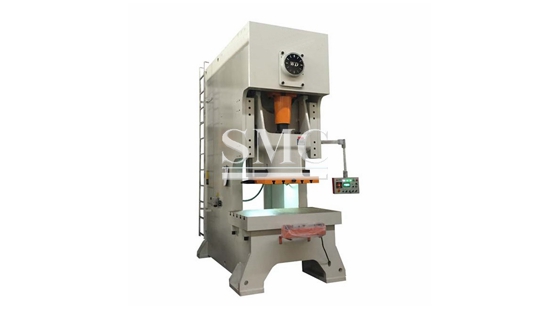

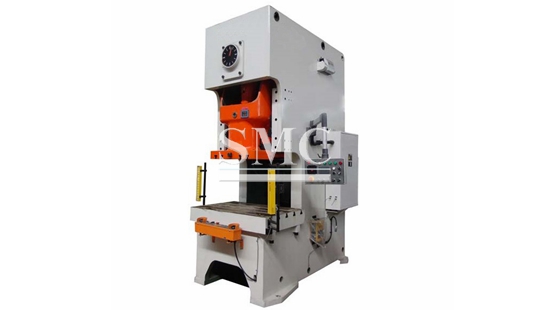

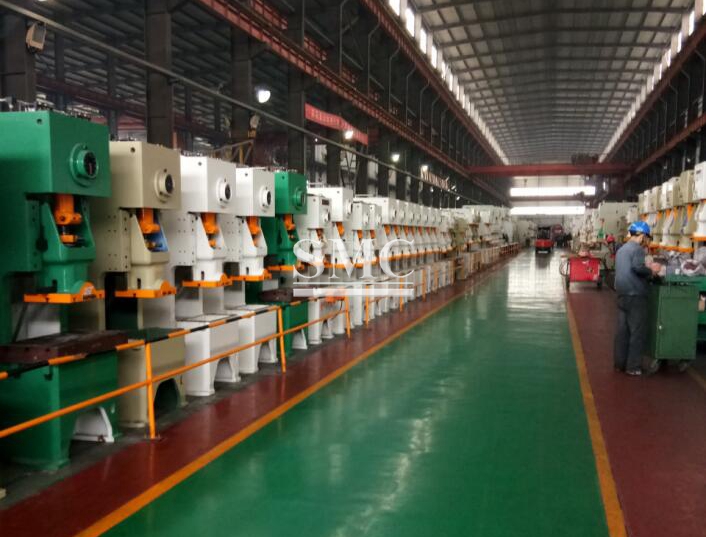

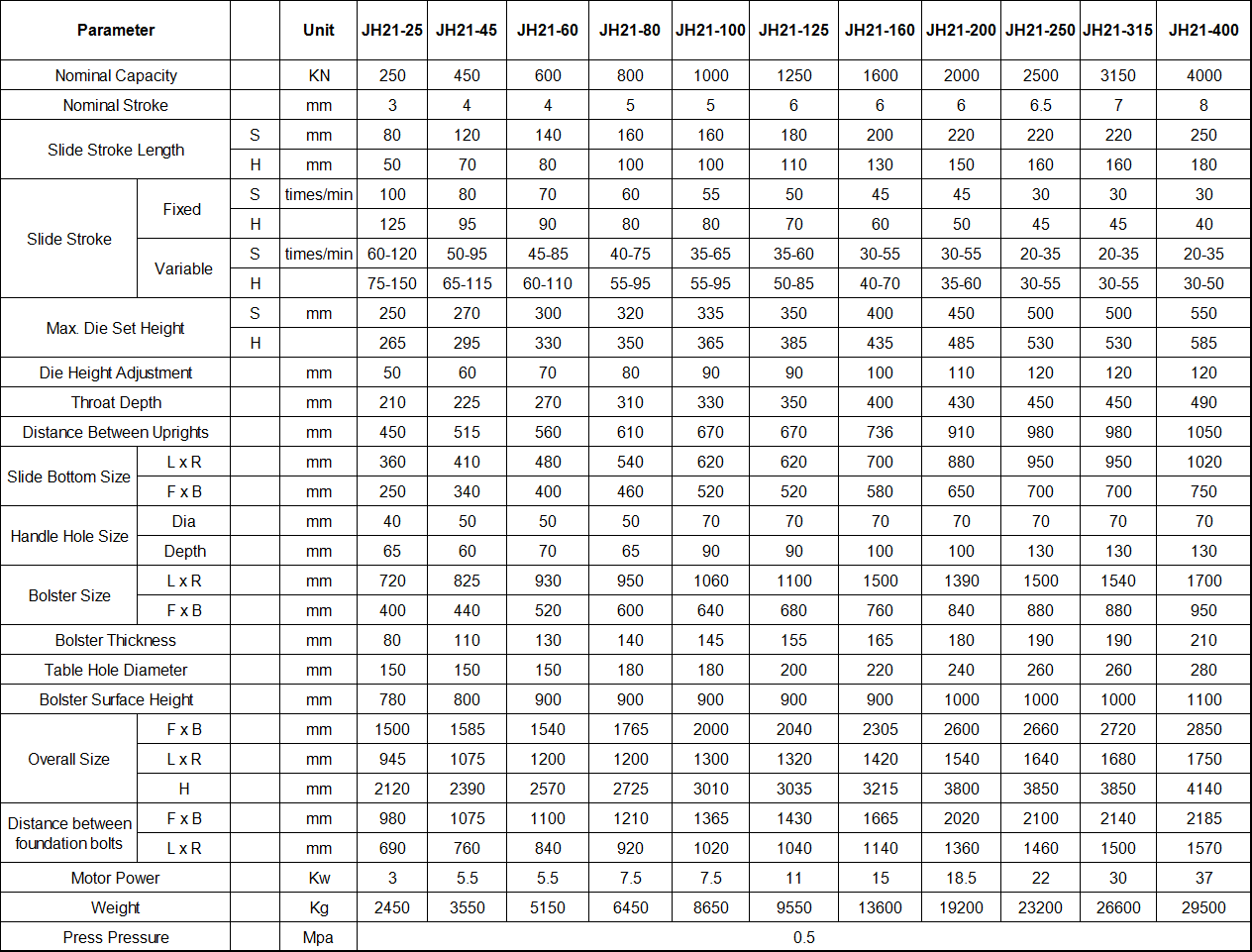

The JH21 C-frame single crank press is suitable to process the lightweight and thin materials through blanking, piercing, bending, forming, interlink with ROT line or transfer unit. Suitable for single and progressive die application, and it owns the capacity ranging from 25 ton to 400 ton.
The press use high torque and low noise wet clutch and brake.
The steel welded body ensures rigid frame with less deflection. High accuracy transmission gears and high rigidity crank ensure press long life and accuracy.
Forced lubrication system with default monitor ensures the operation reliability. User-friendly design and all-function electric control system enable the accessories to attach easily.
1. Steel welded body, tempering treatment or VSR(Vibratory Stress Relief), high rigidity, accuracy and stability;
2. Pneumatic dual balance cylinders, which balance the slide and punch weight to reduce noise and impact;
3. The crankshaft undergoes gringding treatment after high frequency quenching;
4. Lengthened six-face rectangle guide with a surface of bronze plate;
5. Vertical located crankshaft, compact structure;
6. PLC control and imported safety duplex valve;
7. Wet type combined multi discs friction clutch and brake;
8. Hydraulic overload protecting pump.
1) High Performance Wet clutch (Adopt advanced Japanese technology)
3) Hydraulic overload protecting pump
4) Touch screen
5) Cam controller
6) Die height adjusted motor (JH21-60 and upon models)
7) Auto lubrication system
8) Manual lubrication system
9) Double hand control panel
10) Electronic crankshaft angle indicator
11) Predetermined counter
12) Balance cylinders for slide and upper die
13) Work light
14) Joint for air
15) Joint for miss-feeding
1) Light curtain
2) Foot pedal
3) Die cushion
5) Variable speed motor
6) Auto feed shaft
7) Die quick change device
