Shanghai Metal Corporation is a professional manufacturer and supplier of roof making machine with high quality and reasonable price.
The roof making machine is mainly composed of left and right body, bottom connecting rod, top case cover, sliding seat, hexagonal runner, pulley, gear mechanism, sheave mechanism, cam mechanism, lubrication pump, oil circuit system, electronic control part, etc.
If you want to know more about roof making machine price please feel free to contact us, we will reply you within 24 hours
Forming shaft: 72mm diameter solid shaft
Forming wheel: hard chrome plating
Transmission mode: hydraulic motor
Number of forming rows: 11 rows
Fully automatic computer fixed-length cutting system: five batches of data can be set to work at the same time
Pump station motor: 3KW four-stage
Cutting die: Gr12
Forming speed: 15m/min
Pressing thickness: 0.2-0.8mm
Pressing width: 1000m
1. Adopt high-level automatic control software to realize production information management.
2. The entire unit automation control system adopts a highly integrated network, which makes the automation system superior in performance.
3. The machine has the advantages of operation, maintenance, maintenance, mechanical debugging, and easy mold replacement.
The products produced by Shanghai Metal's color steel tile presses have smooth and beautiful appearance, uniform paint patterns, high strength, and durability. They are widely used in industrial and civil buildings, such as factories, warehouses, machine garages, hangars, stadiums, exhibition halls, and theaters. Room surface and wall, etc.

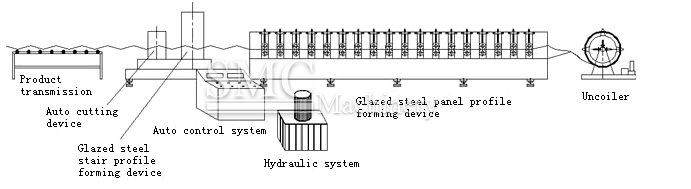

Producing Process Sketch of Roof Panel Roll Forming Machine:

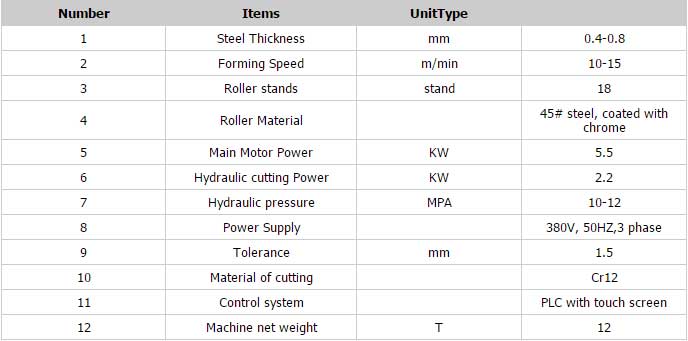

Main Technical Specification of Roof Panel Roll Forming Machine:
