Copper: ASTM C11000 and ASTM C10200

Ti: GR1, GR2, GR3, GR9, GR12, etc

OD: 6-114 mm

Thickness: 0.3mm -8.0mm

Length: up to 6 meters, precut

Shape: Square, rectangular, and round

Product Detail | Technical Information | Packaging

Product Detail

Shanghai Metal Corporation is a leading titanium clad copper tube manufacturer and supplier.

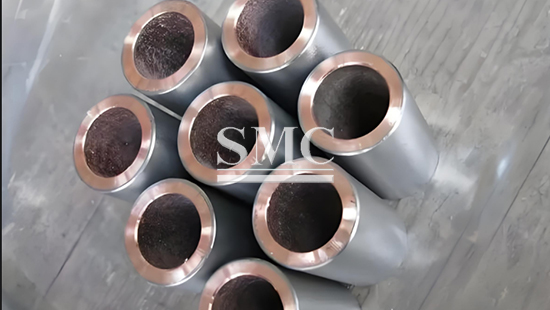

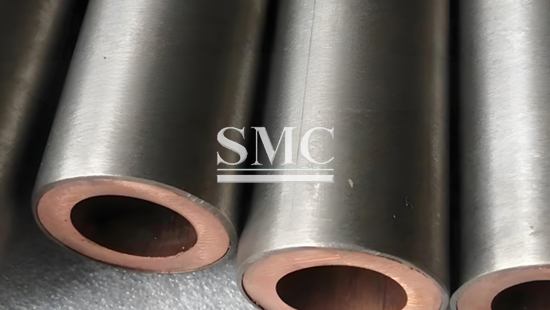

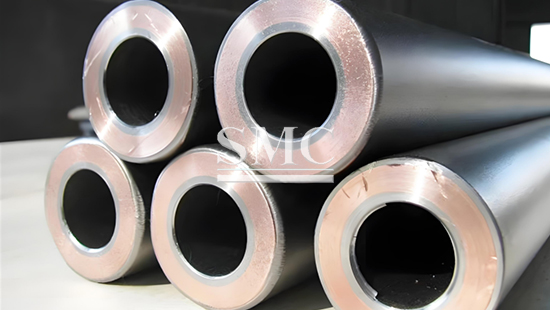

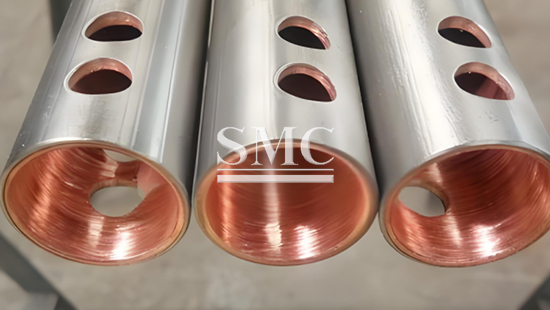

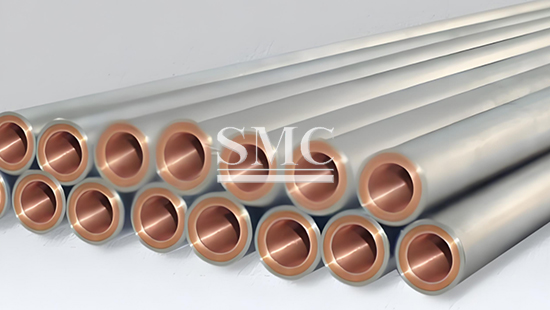

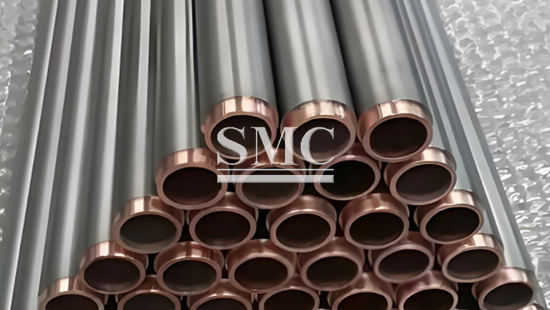

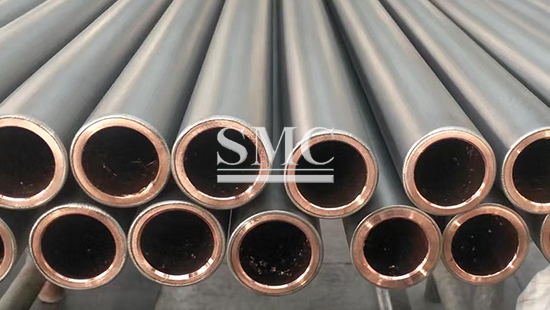

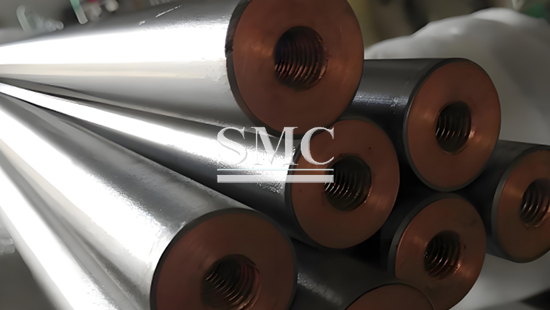

A titanium copper composite tube is a type of composite material made up of a tube with an inner layer of copper and an outer layer of titanium. The ti cu alloy is bonded together to create a material that combines the desirable properties of both metals. Titanium is known for its strength, low density, and excellent corrosion resistance. Copper, on the other hand, has excellent thermal and electrical conductivity. By combining the titanium copper alloy in a composite tube, the resulting material can exhibit the best properties of each metal. It commonly used in applications where high thermal conductivity is required along with corrosion resistance. These applications may include heat exchangers, power plants, and chemical processing facilities. The copper-titanium alloy tube can also be used in aerospace components, and marine applications. The manufacturing process for copper-titanium tubing typically involves bonding the ti cu alloy together using explosive welding or roll bonding techniques. The resulting composite material is then formed into tubes using standard tube-making processes. The finished titanium copper composite tubes are then tested for their mechanical and thermal properties to ensure they meet the required specifications.

If you want to know more about our titanium clad copper tube, please feel free to contact us, we will reply you within 24 hours.

Diameter: 0.5mm 0.8mm 1mm 1.6mm 2mm

Purity: 99.995%

Melting Point: 156.61°C

Density: 7.31g/cm3

Color: Silver White

1.Low processing costs

2.Big area of composite materials available with excellent metallurgical bonding by explosive welding process.

3.Copper Core and Great weldability for connecting, capping and joining,

4.Fantastic corrosion resistance in strongly corrosive solutions due to outside Titanium layer.

5.Excellent conductivity and fully ductile for shaping and forming due to OFHC (Oxygen-Free High Conductivity).

1. Electrolysis, electroplating,

2. Electrolysis,PCB

3. Hydrometallurgy, power

4. Chemical industry,

5. Water treatment,

6. Ocean engineering High Conductivity).

1.Chemical composition test

2.Physical properties test

3.Appearance defects inspection

4.Flattening test

5.Flaring test

6.Hydrostatic test

7.Air tightness test

8.Ultrasonic flaw detection

9.Eddy current testing

Chemical composition(%)

Grade	Fe	C	N	H	O	Al	V	Mo	Ni	Pd	Ti
Gr1	0.2	0.08	0.03	0.015	0.18	——	——	——	——	——	BAL
Gr2	0.3	0.08	0.03	0.015	0.25	——	——	——	——	——	BAL
Gr3	0.3	0.08	0.03	0.015	0.35	——	——	——	——	——	BAL
Gr7	0.3	0.08	0.03	0.015	0.25	——	——	——	——	0.12-0.25	BAL
Gr9	0.25	0.08	0.03	0.015	0.15	2.5-3.3	2.0-3.0	——	——	——	BAL
Gr12	0.3	0.08	0.03	0.015	0.25	——	——	0.2-0.4	0.6-0.9	——	BAL

Mechanical properties
Grade	Tensile strength(Mpa) min	Yield strength( Mpa)	Elongation (%)
Gr1	240	170-310	24
Gr2	345	275-450	20
Gr3	450	380-550	18
Gr7	345	485	15
Gr9	860	725	10
Gr12	483	345	18

Packing of Titanium Clad Copper Tube/ Pipe :

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization
