Construction and Decoration Materials

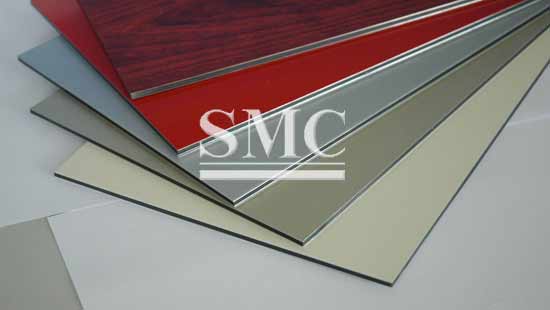

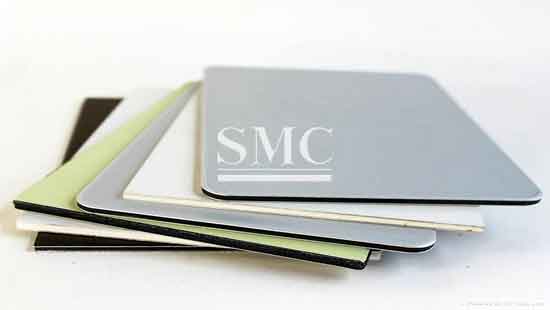

Aluminum Composite Panel For Curtain Wall

    Grade: 1100, 3003, 5052

    Thickness: 3, 4, 5, 6, 7, 8mm

    Standard width: 1220, 1250, 1600mm

Shanghai Metal Corporation is proud to supply high quality Aluminum composite panel. We are one of China's leading steel mill manufacturers, and we promise our customers reliable quality, quick delivery and excellent post-sales service. Special standards and grades can be manufactured according to customer requirements.

Specifications of Aluminum Composite Panel:
1) Aluminum skin thickness: 0.50×0.50mm, 0.40×0.40mm, 0.30×0.30mm, 0.21×0.21mm, 0.15×0.15mm, 0.12×0.12mm
2) Total panel thickness: 2mm, 3mm, 4mm, 5mm, 6mm
3) Width: 1000mm, 1220mm (regular), 1250mm, 1300mm, 1500mm, 1550mm, 1575mm, 2000mm (maximum)
4) Length: 2440mm (regular), and tailored by customers’ offers; 8000mm (maximum)
5) Standard size: 1220mm(Width) ×2440mm(Length)
6) Surface Treatment: PVDF coating and PE coating
7) Main double sided aluminum composite panels Product: PE coated ACP, PVDF coated ACP, Nano PVDF coated ACP, Mirror finish ACP, Brushed ACP, Wooden ACP, Granite ACP and Fireproof core ACP
8) Non-standard sizes and special colors are available depending on customers’ offers

Material of Aluminum Composite Panel:
a) Front: aluminum alloy sheet coated with fluoro-carbon resin (PVDF) and polyester resin (PE) roasting painting
b) Core: nontoxic polyethylene
c) Back: aluminum alloy sheet coated with polyester resin painting
d) Surface finish: treated with PVDF and PE resin rolling roasting coating
e) Aluminum alloy sheet thickness: 0.1mm, 0.12mm, 0.15mm, 0.2mm, 0.3mm, 0.4mm, 0.45mm, 0.5mm

Packaging of Aluminum Composite Panel

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization


Applications of Aluminum Composite Panel:

1) Wall and interior decoration of air fields, docks, stations, metros market place, hotels, restaurants, recreation places, top-grade residence, villas, office, etc.

2) Big billboards, shop windows, roadside news kiosks, bookstalls, telephone booths, trafficsentry boxes and filling stations

3) Internal walls, ceilings, compartments, kitchens, toilets, and basement dado

4) Shop decoration, interior layers, storied cabinet, pillar and furniture

5) Decoration for boxes in trains, automobiles, ships and carriages

6) Renovation and reconstruction of old buildings

7) Cleaning and dust control projects


Features of Aluminum Composite Panel:
1) Fireproof and water resistant, excellent heat and sound insulation
2) Excellent surface flatness and smoothness
3) Superior weather, corrosion and pollutant resistance
4) Even coating, various colors
5)Super peeling strength
6) Superior impact resistance
7) Lightweight and easy to process
8) Easy to maintain
