1.Execution standards: GB3836.1, GB3836.2, GB12476.1, JB/T9600, IEC60079-0, IEC60079-1, IEC61241-1-1;

2.Explosion-Proof Marks: EXD Ⅱ, DIP A20;

3.Explosion-Proof Protection Level: IP65;

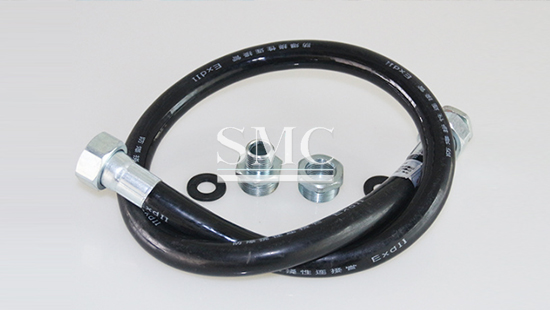

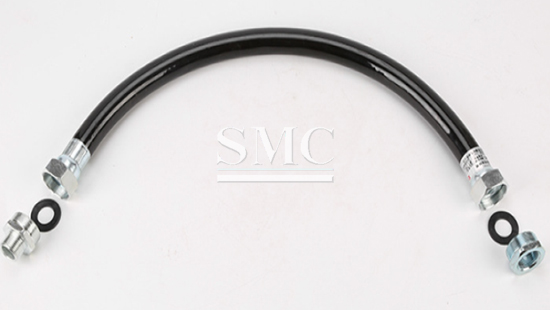

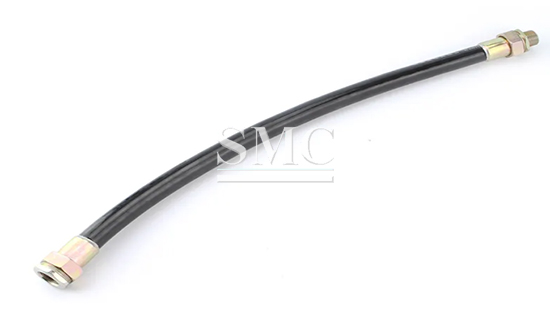

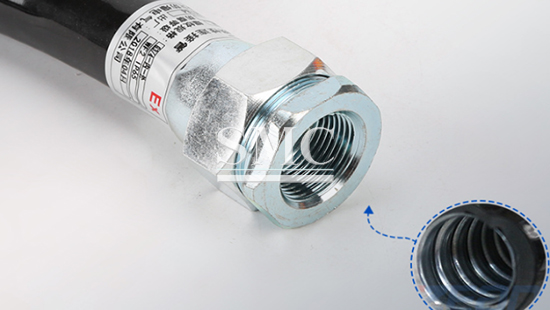

1.The explosion-proof flexible conduit consists of a union joint and a connecting pipe. The connecting pipe is composed of an inner tube and a sheath.

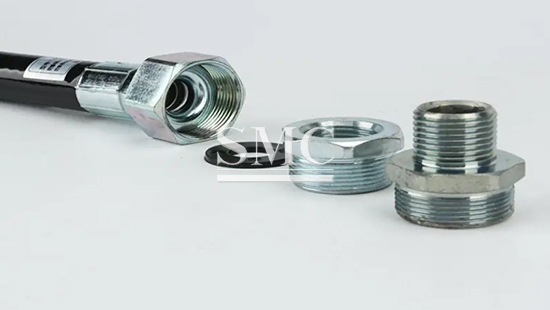

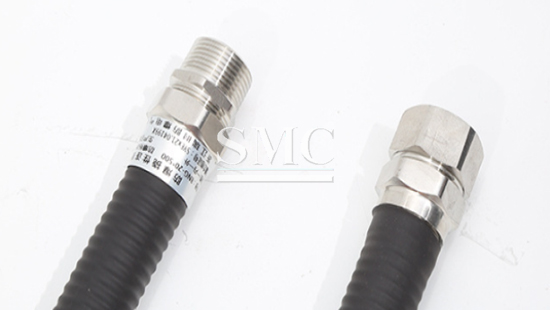

2.The union joint is made of stainless steel or high-quality carbon steel with electroplating treatment.

3.The inner tube is made of corrugated pipe or metal hose, offering excellent corrosion resistance.

4.Features include flame retardancy, corrosion resistance, water resistance, aging resistance, good flexibility, robust structure, and reliable operation.

5.Thread sizes can be specially processed according to user requirements, such as NPT threads, British standard threads, and metric threads.

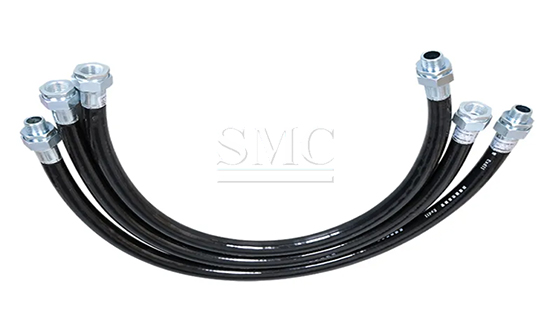

6.Standard lengths of the explosion-proof flexible conduit include 500mm, 700mm, and 1000mm. Other lengths can be customized according to user needs.

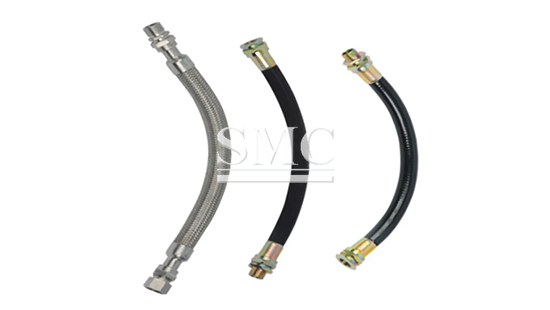

7.Three different materials are available for selection.
