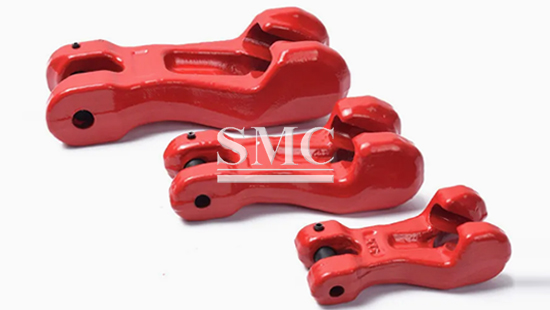

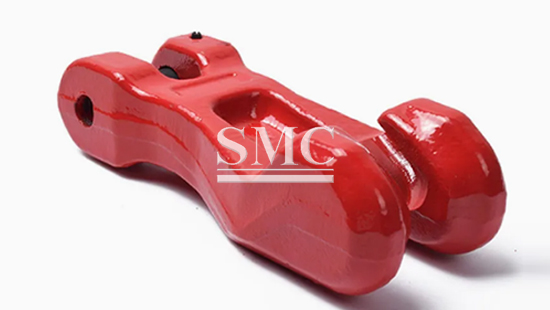

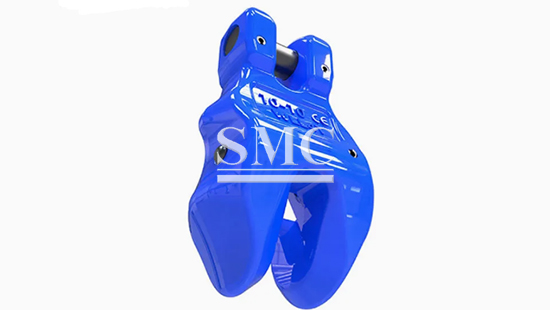

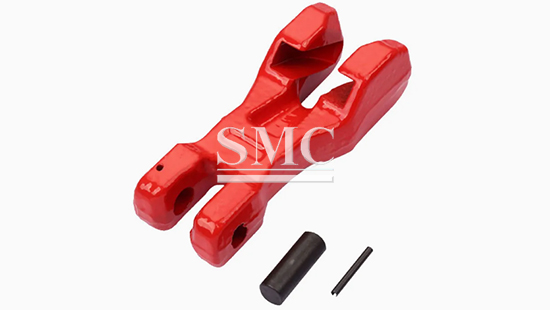

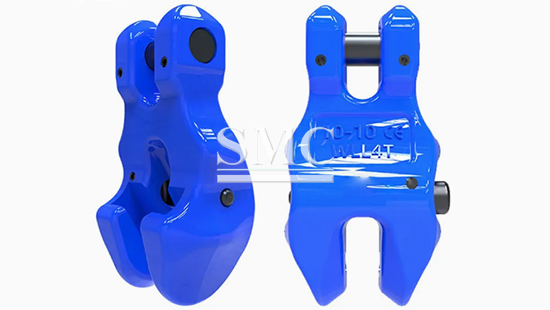

G80 Chain Clutch/ G100 Clevis Chain Clutch/ G80 Chain Shortening Clutch

    Standard: EN 1677



    Grade: G80 Chain Clutch & G100 Chain Clutch



    Manufactured technology: forged

Shanghai Metal Corporation is a professional manufacturer and supplier of G80 Chain Clutch with high quality and reasonable price.

The G80 chain clutch is a device used to adjust industrial lifting chains, it adjusts and fixes the chain length through a U-shaped structure (clevis) and a locking mechanism (clutch), which can achieve a suitable tightness. Before using a high-strength lifting chain clutch, we need to first determine the degree of tightness of the chain. If the chain is too tight, it needs to be loosened appropriately, and if it is too loose, it needs to be tightened appropriately. When adjusting the tightness of the chain, we should be careful not to loosen or tighten it too much to avoid affecting the effect of the lifting equipment.

If you want to know more about G80 Chain Clutch price please feel free to contact us, we will reply you within 24 hours

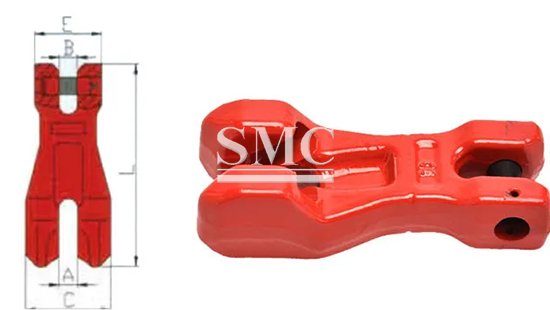

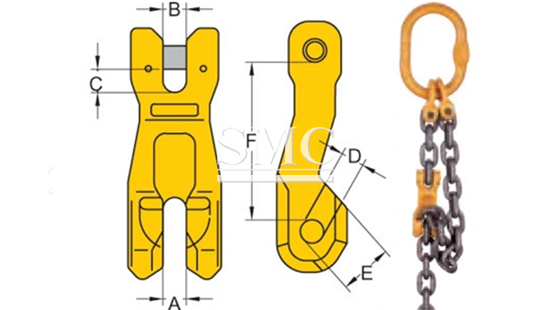

Technical Information of G80 Chain Clutch/ G100 Clevis Chain Clutch/ G80 Chain Shortening Clutch:



Size/mm

Weight/kg

WLL/T

MBL/T

A

B

C

E

L

6

0.17

1.12

4.48

7.5

7.5

33

26

73.5

7~8

0.41

2

8

9.5

9.5

45

36

101

10

0.97

3.15

12.6

13

13

55

48

138

13

2.01

5.3

21.2

18

16

75

59

177

16

3.32

8

32

21

21

93

73

220

18~20

6.2

12.5

50

22

22

99

78

238

22

8.5

15

60

25.5

25.5

118

98

295

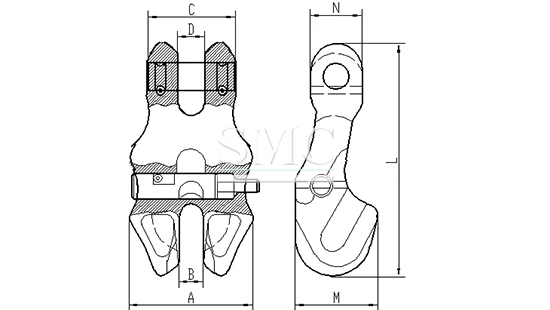

Size/mm

Weight/kg

WLL/T

MBL/T

A

B

C

D

M

N

L

6~10

0.25

1.4

5.6

38

7.5

27

7.5

29

16

73

7~8

0.41

2.5

10

50

9.5

33

9.5

36

23

92

10

0.75

4

16

60

11.7

43.5

11.7

45.4

36

115

13

1.67

6.7

26.8

79

15

55

15

54

34

149

16

4.2

10

40

98

19

70

19

70

40

184

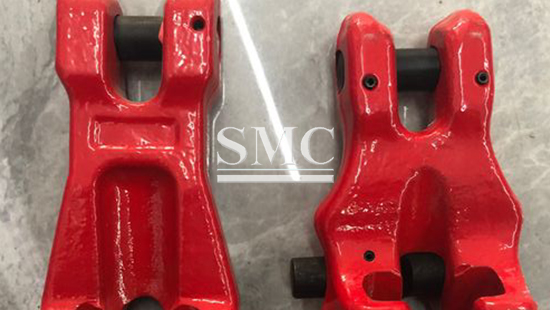

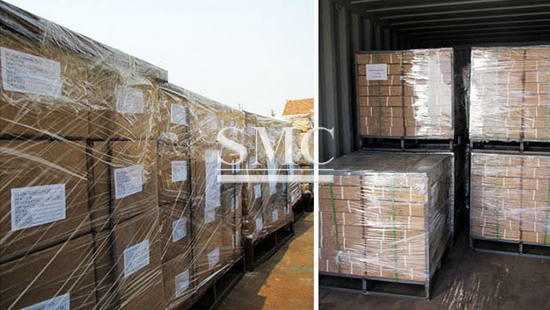

Packaging of G80 Chain Clutch/ G100 Clevis Chain Clutch/ G80 Chain Shortening Clutch:



Products of Shanghai Metal Corporation are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)SMC Standard

2)Customization
