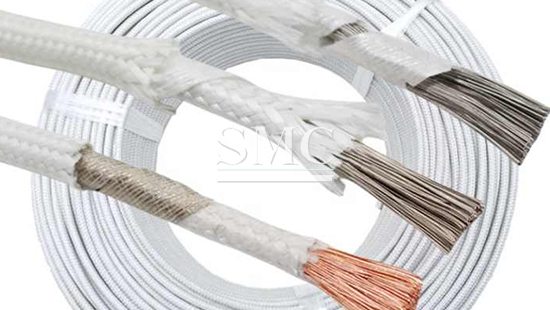

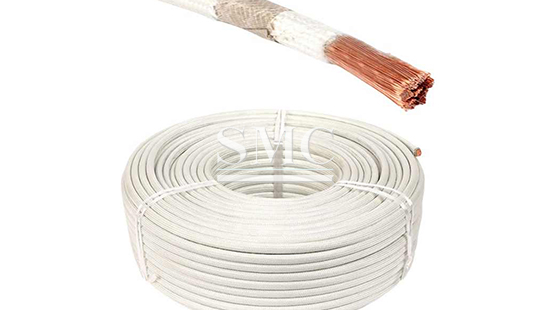

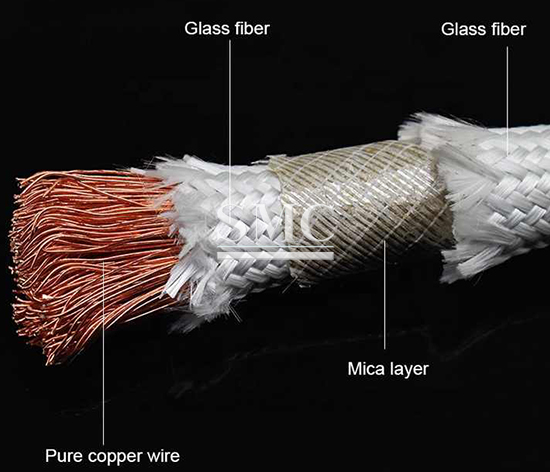

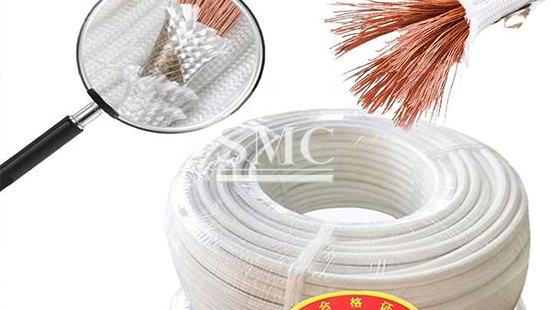

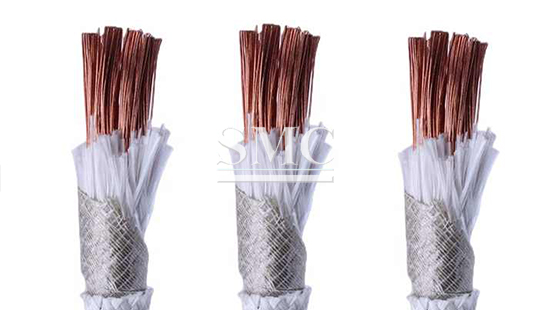

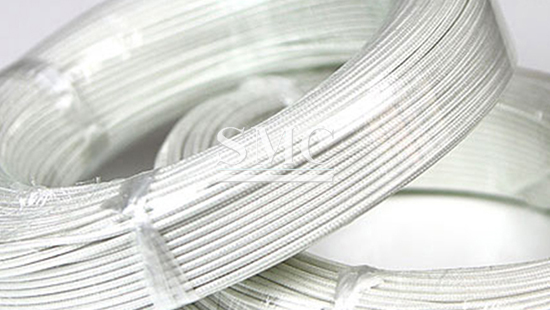

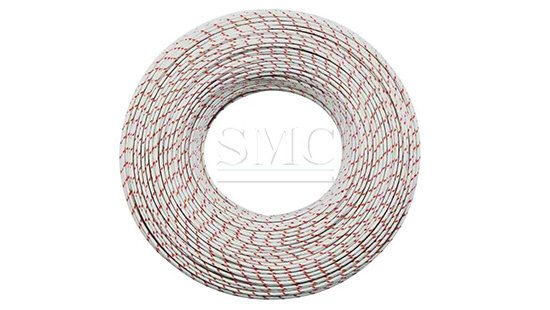

Mica Wire
Conductor Material: Copper, Nickel Coated Copper, Pure Nickel, etc.
Temperature range: -60℃ ~ + 1000℃
Size: 0.5mm2 ~ 150mm2
Shanghai Metal Corporation is a professional manufacturer and supplier of Mica Wire with high quality and reasonable price.
If you want to know more about Mica Wire price please feel free to contact us, we will reply you within 24 hours
Technical Information of Mica Wire：
|
Size |
Conductor |
Insulation Thickness |
Braid Thickness |
Diameter |
|
24 |
7/0.2 |
0.61 |
0.2 |
2.3±0.1 |
|
22 |
7/0.254 |
2.5±0.1 |
||
|
20 |
10/0.254 |
2.6±0.1 |
||
|
18 |
16/0.254 |
2.9±0.1 |
||
|
16 |
26/0.254 |
3.2±0.1 |
||
|
14 |
41/0.254 |
3.6±0.1 |
||
|
12 |
65/0.254 |
4.1±0.1 |
||
|
10 |
103/0.254 |
0.89 |
0.25 |
5.6±0.2 |
|
8 |
163/0.254 |
6.5±0.2 |
||
|
6 |
260/0.254 |
7.6±0.2 |
||
|
4 |
413/0.254 |
8.9±0.2 |
|
Conductor |
Out Diameter mm |
Electrical Properties |
|
|
Sectional Area mm² |
Jacket Thickness mm |
Max. Conductor Resistance DC 20℃ Ω/km |
|
|
0.5 |
7x0.30 |
2.6±0.3 |
39 |
|
0.75 |
11x0.30 |
2.7±0.3 |
26 |
|
1 |
14x0.30 |
2.8±0.3 |
19.5 |
|
1.5 |
21x0.30 |
3.0±0.3 |
13.3 |
|
2 |
28x0.30 |
3.3±0.3 |
10 |
|
2.5 |
35x0.30 |
3.6±0.5 |
7.98 |
|
4 |
56x0.30 |
4.5±0.5 |
4.95 |
|
6 |
84x0.30 |
5.5±0.5 |
3.3 |
|
10 |
140x0.30 |
6.6±0.5 |
1.91 |
|
16 |
228x0.30 |
7.8±0.5 |
1.21 |
|
25 |
361x0.30 |
9.5±0.5 |
0.78 |
|
35 |
494x0.30 |
11.2±1.0 |
0.554 |
|
50 |
703x0.30 |
13.2±1.0 |
0.386 |
|
70 |
988x0.30 |
15.4±1.0 |
0.272 |
|
95 |
960x0.40 |
17.4±1.0 |
0.206 |

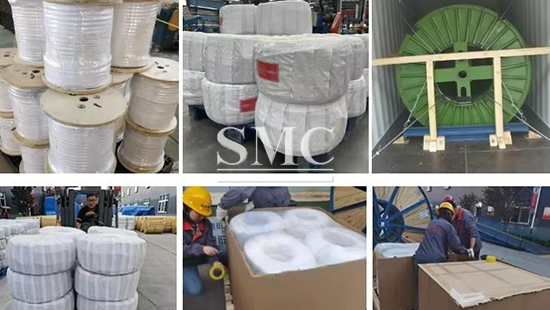

Packaging of Mica Wire：
To meet the entirety of our customers business needs, SMC offers its services as a “One-Stop Shop” for business services including Purchasing, Value-Added Manufacturing, Packaging/Labeling, and Delivery. SMC prides itself on achieving superior results and satisfying customer needs. In this, we earnestly strive to fulfill our role as trustworthy and reliable supplier of business services throughout the entire world.
Our Value-Added Manufacturing Services not only save our customer time from having to out-source, but also spare them the cost of dealing with several disparate shops and deadlines.
