Fiberglass Reinforced Plastic

Products & Service

Fiberglass Reinforced Plastic

PEEK Tube / Pipe

Processing Method: Extrusion, hot‑compression‑molding, injection‑molding

Outer Diameter Range: 10mm‑2500mm

Wall Thickness Range: 0.2mm‑100mm

Available Color: Natural grey, black

Minimum Order Quantity: 1 PC

Product Detail | Technical Information | Packaging | More

Product Detail

Shanghai Metal Corporation is a leading PEEK Tube / Pipe manufacturer and supplier.

PEEK tube / pipe is hollow semi‑finished profile made from polyetheretherketone engineering polymer. It can be produced via extrusion, hot compression molding or short‑run injection molding. Different filler formulations including carbon fiber, glass fiber are blended into base PEEK resin to adjust rigidity, friction performance and dimensional stability. These hollow profiles are further CNC‑machined into sleeves, bushings, fluid transfer liners and insulating spacers. It replaces metal tubing in working environments demanding weight reduction, resistance to hot steam and aggressive chemical fluids. This material avoids rust and metallic particle contamination. It supports both stock standard dimension and fully custom outer diameter, inner diameter and cut‑to‑length according to mechanical and fluid system requirements.

If you want to know more about our PEEK products or PEEK tube price please feel free to contact us, we will reply you within 24 hours.

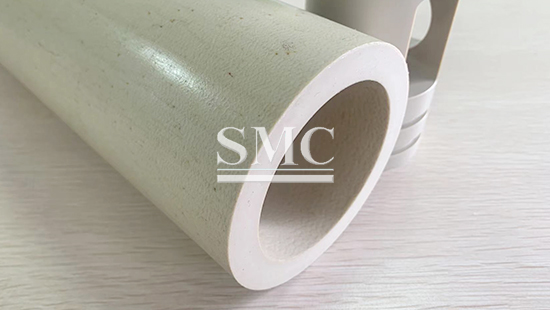

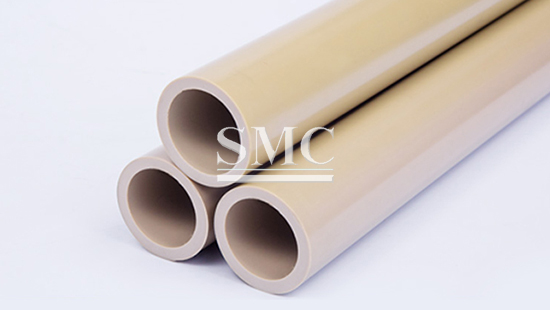

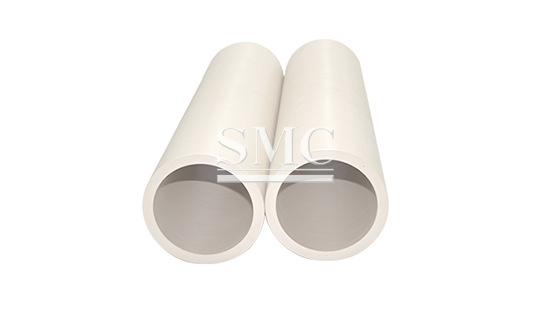

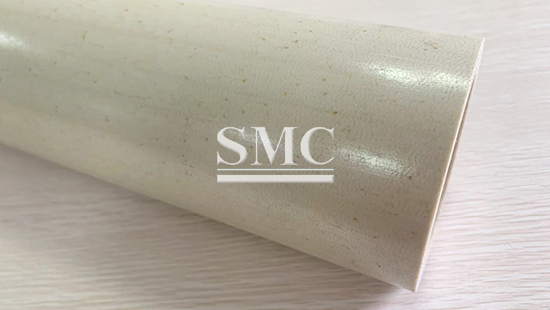

PEEK tube belongs to polymer hollow profile semi‑finished material. Base raw material is unfilled virgin PEEK resin. Carbon fiber, glass fiber or solid lubricant fillers are compounded to produce modified grades.

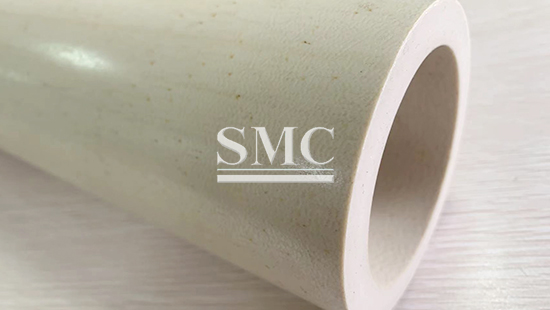

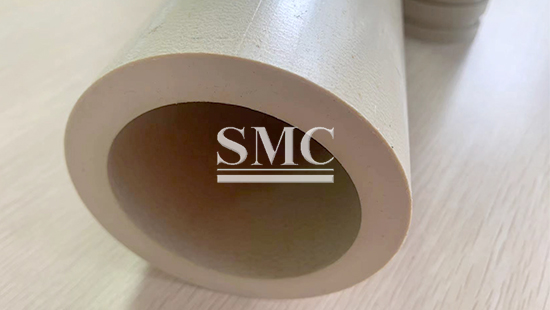

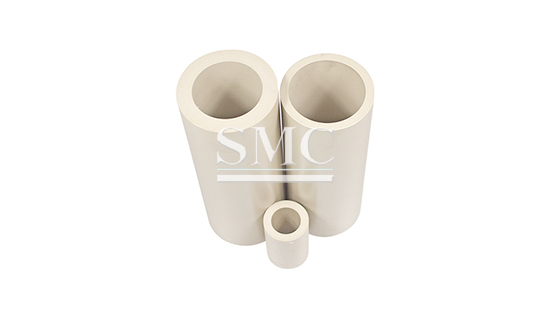

1. Unfilled Virgin PEEK: Natural grey color, maintains high impact toughness and material purity. Fit for scenarios requiring biocompatibility and non‑contamination for fluid contact.

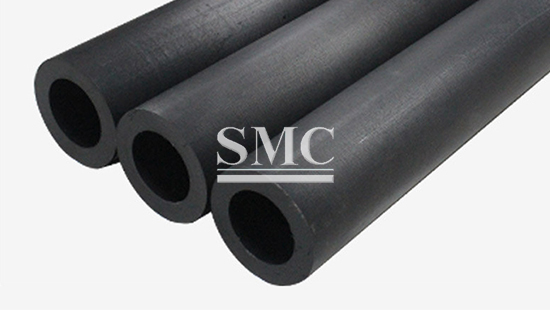

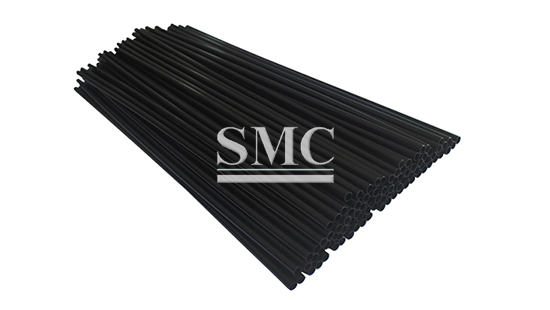

2. Carbon‑fiber filled PEEK: Black appearance, improved tensile strength and low thermal expansion. Suitable for high‑pressure, high‑load mechanical bushing and down‑hole industrial parts.

3. Glass‑fiber filled PEEK: Slight brownish tone, enhanced rigidity and anti‑creep property, cost‑effective for general‑purpose structural sleeves under continuous high‑temperature load.
4. Lubricant modified compound PEEK: Added PTFE solid lubricant, lowers friction coefficient, for sliding bushing components under dry‑running working state.
Different manufacturing processes also create structural differences:

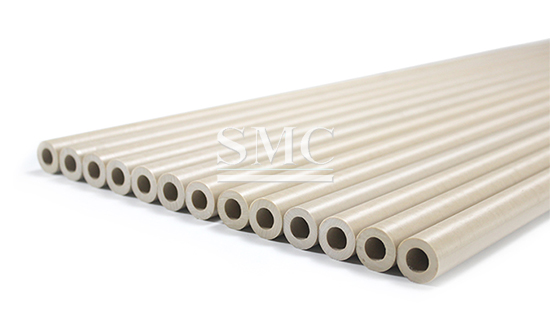

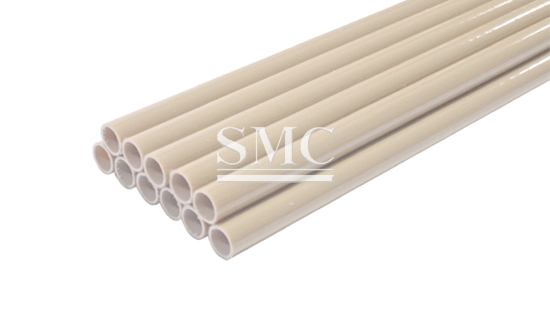

‑Extruded PEEK tube: Suitable for small‑to‑medium OD, long continuous length, high volume production.

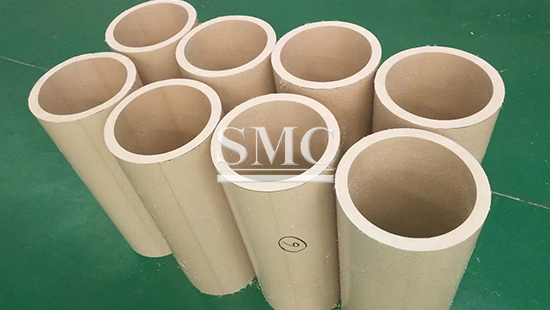

‑Hot‑compression‑molded PEEK tube: For large outer diameter and thick‑wall sizes which cannot be achieved by extrusion.
‑Injection‑molded PEEK tube: Only applies for short‑length thin‑wall small‑diameter parts for small‑batch components.

High Temperature Long‑Term Working Performance
Retains core mechanical properties under continuous operating temperature up to 260℃. Helps component maintain dimension stability inside high‑heat equipment without frequent part replacement.
Chemical and Hydrolysis Resistant Polymer Structure
Resists most organic solvents, weak acid, alkali and repeated hot‑steam exposure. Prevents tube swelling or cracking in chemical fluid transport and steam sterilization cycles.

Tunable Mechanical Strength By Material Formulation
Users can select unfilled or fiber‑filled grades. Carbon‑fiber reinforced grades improve pressure bearing capacity, while unfilled grades keep high impact resistance. It allows engineers to match material performance with actual load conditions instead of over‑specifying raw materials.
Good Machinability For Secondary Processing

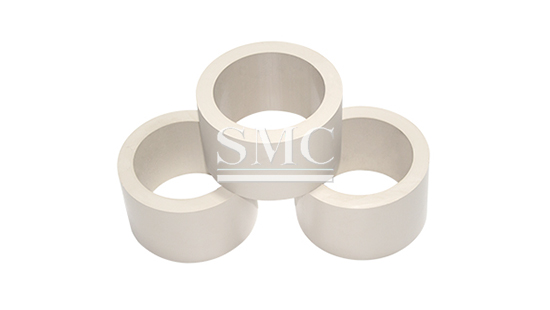

Extruded and compression molded PEEK tube can be cut, bored, turned and milled on CNC lathe. Customers can machine finished sleeves, liners and spacers directly from semi‑finished tube stock, reducing mold opening investment for prototype and small‑batch orders.
Light‑Weight Metal Substitution Property
Density is far lower than steel, brass or stainless steel pipe. It lowers total assembly weight for mobile equipment such as aerospace and down‑hole instruments and reduces overall system load.

POil & Gas Down‑hole Instrument Liner
Suitable for inner protective liners of well‑logging instruments working underground. It withstands high temperature, hydrocarbon fluid and brine corrosion. Carbon‑fiber filled PEEK tube is recommended for high‑pressure down‑hole working condition.
Medical Analytical Instrument Fluid Tubing
Used for liquid flow pipelines inside laboratory analysis and diagnostic equipment. Unfilled virgin PEEK keeps fluid purity and tolerates repeated autoclave sterilization. Unfilled natural PEEK grade is preferred for direct‑fluid‑contact assemblies.
Semiconductor Equipment Insulating Sleeve
Applied as insulating and isolating hollow sleeves for semiconductor processing equipment. It maintains stable dielectric property under high‑temperature clean environment. Unfilled or glass‑fiber filled PEEK tube are common selections.
Chemical Processing Fluid Transfer Liner
Serves as inner lining for small‑bore piping transporting corrosive chemical medium. It avoids chemical erosion attacking metal base pipe. Wall thickness shall be increased when working under high‑pressure chemical circulation.

No	OD mm	ID mm	No	OD mm	ID mm	No	OD mm	ID mm		No	OD mm	ID mm
1	21	14	43	62	46	85	119	89		127	237	169
2	23	13	44	64	35	86	120	99		128	239	210
3	24	17	45	64	39	87	122	93		129	242	219
4	24	22	46	64	63	88	126	86		130	243	161
5	26	16	47	66	30	89	126	103		131	249	119
6	26	19	48	66	35	90	129	98		132	251	177
7	27	13	49	66	45	91	130	99		133	251	185
8	28	20	50	66	59	92	134	54		134	255	190
9	28	27	51	71	49	93	134	71		135	260	214
10	29	15	52	71	63	94	134	97		136	261	220
11	31	20	53	72	50	95	134	104		137	266	233
12	31	24	54	73	41	96	134	109		138	283	201
13	33	21	55	76	68	97	134	114		139	283	226
14	33	23	56	78	48	98	135	67		140	284	244
15	33	25	57	78	55	99	142	74		141	284	248
16	35	21	58	81	73	100	142	118		142	286	264
17	36	29	59	82	35	101	144	110		143	289	260
18	37	29	60	82	50	102	155	120		144	289	267
19	38	35	61	82	58	103	160	89		145	293	260
20	39	21	62	85	78	104	160	112		146	293	266
21	39	26	63	86	53	105	160	130		147	303	235
22	39	33	64	91	45	106	160	140		148	303	239
23	41	34	65	91	56	107	171	127		149	305	262
24	42	33	66	91	70	108	171	150		150	324	277
25	45	35	67	92	76	109	172	134		151	335	240
26	46	24	68	92	83	110	184	150		152	335	294
27	46	36	69	94	70	111	189	134		153	342	239
28	46	39	70	97	56	112	189	157		154	345	315
29	48	40	71	97	66	113	192	150		155	362	270
30	50	27	72	97	81	114	203	122		156	362	288
31	50	49	73	97	88	115	205	169		157	362	312
32	51	44	74	102	93	116	205	181		158	376	343
33	52	30	75	105	75	117	207	174		159	377	277
34	56	49	76	105	78	118	209	134		160	377	313
35	58	38	77	105	79	119	214	137		161	413	354
36	61	32	78	113	43	120	222	141		162	428	392
37	61	35	79	113	58	121	224	128		163	432	372
38	61	35	80	113	59	122	224	191		164	453	392
39	61	38	81	113	70	123	224	195		165	597	447
40	61	39	82	113	81	124	228	210	please contact us for more size standard length 1000/3000mm
41	61	39	83	113	89	125	237	142
42	61	54	84	119	59	126	237	145

Material Physical Reference Data
Test Item	Test Standard	Unit	Unfilled PEEK	30% Carbon‑fiber PEEK	30% Glass‑fiber PEEK
Density	ISO1183	g/cm³	1.30‑1.32	1.40‑1.45	1.49‑1.54
Max Continuous Operating Temp	UL746B	℃	260	260	260
Heat Deflection Temperature	ISO75‑f	℃	163	315	315
Water Absorption 24h	ISO62	%	0.15	0.06	0.11
Flammability Rating	UL94	V‑0@1.5mm	V‑0	V‑0	V‑0

Production Process Flow

PEEK raw pellet melting & compounding → Extrusion / Hot compression molding → Slow cooling stress‑relief annealing → Saw cutting to length → Dimension inspection → Surface finishing → Sorting for stock or shipment.

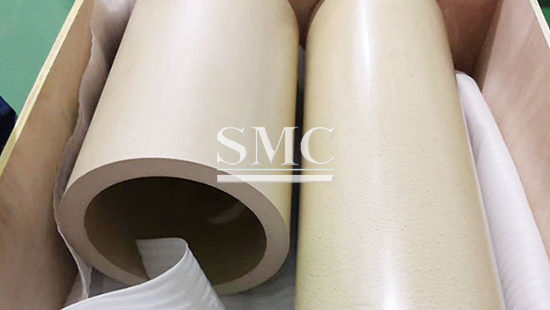

Standard Packaging

Each tube end is fitted with plastic end protective caps to prevent end‑face chipping and scratch. Single or multiple tubes are wrapped with anti‑static kraft paper and bubble foam. Short pipe segments are separated by foam partitions inside thick export corrugated cartons. Long‑length tubes are fixed inside reinforced plywood wooden cases with foam filling to avoid shifting and collision. Finished cartons or wooden cases are stacked on fumigated wooden pallets and fully wrapped with stretch film. Outer package labels mark material grade, OD‑ID dimension, batch number and quantity for product identification.

Shipping

We support FCL and LCL sea freight, air freight and international express delivery according to order total weight, tube length and destination country. Applicable trade terms contain EXW, FOB, CIF. Other terms may be available upon request. Shipping costs are calculated based on actual gross weight, package outer volume, destination location and selected transport mode.

Lead Time

Samples: 3‑7 working days

Standard orders for existing stock dimensions:15‑25 working days

Customized non‑standard OD / ID / wall‑thickness orders:25‑40 working days

How to identify PEEK materials?

The easiest way to distinguish PEEK materials, whether profiles or raw materials, is through temperature resistance. PEEK's thermal deformation temperature is 343 degrees Celsius. It can be easily distinguished by setting the temperature at 330 degrees Celsius in the oven for half an hour. There is also pure PEEK, the color is off-white, graphite PEEK with carbon fiber is black, and glass fiber is brown.

FAQs:

Q1: How long does sample preparation take for PEEK tube /pipe?

A: If we have matching stock semi‑finished tube, samples take 3‑7 working days. For non‑standard custom OD‑ID size requiring dedicated molding, sample lead‑time will extend to 10‑15 working days.

Q2: What information do you need for PEEK tube quotation?

A: Please provide outer diameter, inner diameter, wall thickness, required length, PEEK material grade, total quantity and special tolerance requirements. Drawings are preferred for custom‑machined finished parts.

Q3: What is the MOQ and production lead‑time?

A: MOQ is 1 PC for prototype testing. Stock dimension orders take 15‑25 working days; non‑standard custom dimension orders take 25‑40 working days.

Q4: Can you cut PEEK tube into finished machined sleeves or bushing parts?

A: Yes, we offer secondary CNC turning and boring service based on our PEEK tube semi‑finished material, you need to provide finished‑part 2D drawing for evaluation and quotation.

Q5: What factors shall I consider to choose extrusion or hot‑compression‑molded PEEK tube?

A: Extrusion fits small‑medium OD, thin‑to‑medium wall, long‑length mass‑volume orders. Hot compression molding is required for large outer‑diameter and super‑thick‑wall specifications which cannot be extruded, with higher unit cost and longer production cycle.

Q6: What quality standards can PEEK tube comply with?

A: Raw material performance follows ISO test standards. Batch‑wise material test report can be supplied. Special certifications such as FDA‑compliant material documents can be arranged upon customer project request.
