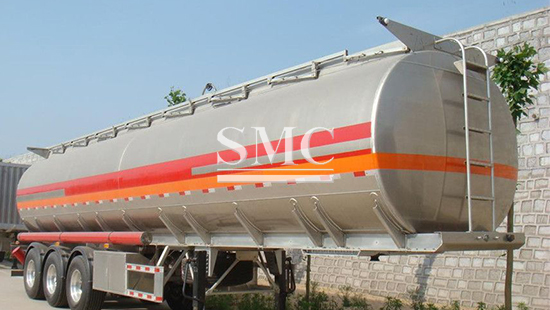

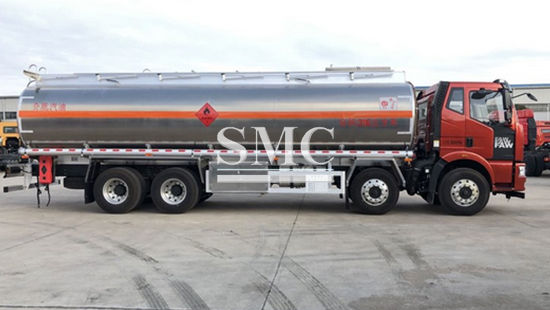

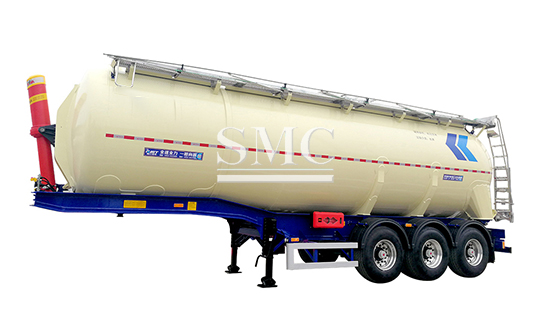

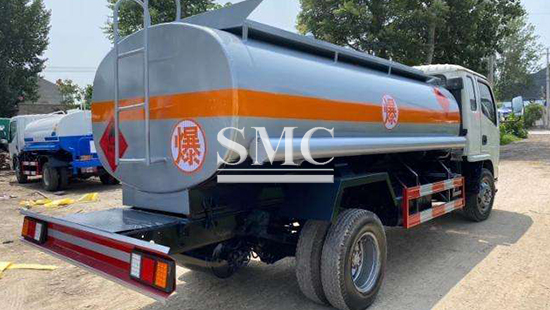

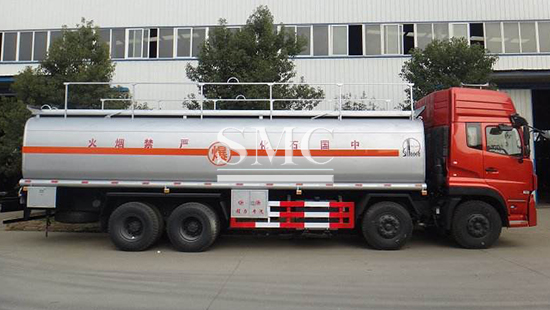

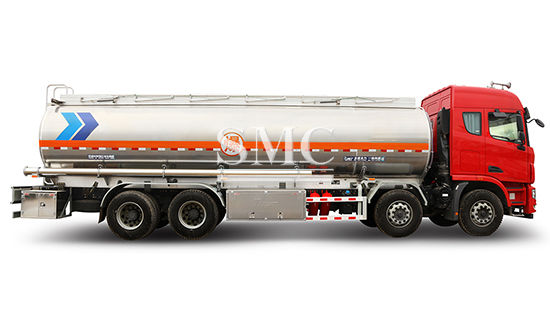

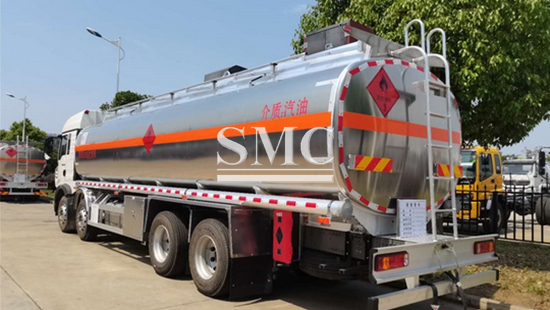

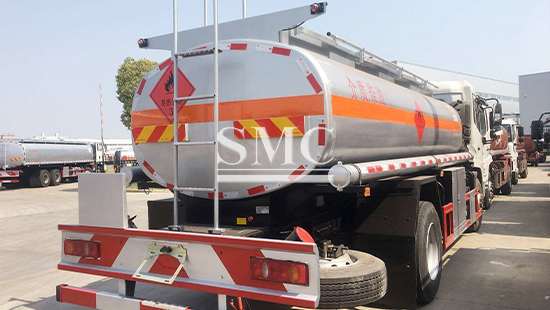

Type: Aluminum Alloy Tank Trailer/ Pressure Vessel Transport Truck
Material: Aluminum- Alloy/ Stainless Steel/ Carbon Steel
Transport: All kinds of acid and base liquids
Shanghai Metal Corporation has a complete range of tank trailer, covering more than 100 types of aluminum alloy tank trailer, pressure vessel truck, liquid transport semi truck, powder material truck and so on. All products adopt advanced assembly line operation, to achieve surface shot blasting and paint baking process, to ensure quality and visual perfection.
If you want to know more about Tank Trucks price please feel free to contact us, we will reply you within 24 hours.
Chassis configuration: National V engine, 9 speed transmission, 295 vacuum tire, central lock, electric doors and Windows. Top configuration: The tank volume is made according to the announced size, about 30.5Cubic, tank thickness 6MM, head 6MM, with 80-60 pump (right), full set of European standards (two European standard tank mouth, a sub sea valve, a lower oil, a waste gas recovery, an anti-overflow rod and rod seat), lower oil position according to the standard, with static coil, a toolbox, with folding guardrail, with a fireproof cap, two pipelines equal in length to the tank, Two fire extinguishers, the rest factory standard. Ensure that the tank and vehicle dimensions are made according to the announcement.
Technical Information of Tank Car:
Tank volume (m3): 26
Rated load weight (Kg): 20665
Overall dimensions (mm): 11850 * 2500 * 3450
Weight of preparation (Kg): 11205
Number of shaft: 4
Wheelbase (mm): 1800+4575+1400
Tank size (mm): 9200 * 2350 * 1500
Number of tires: 8
Type of fuel: diesel
Specification of tire: 295/80R22.5 18PR
Volume (ml): 6870
