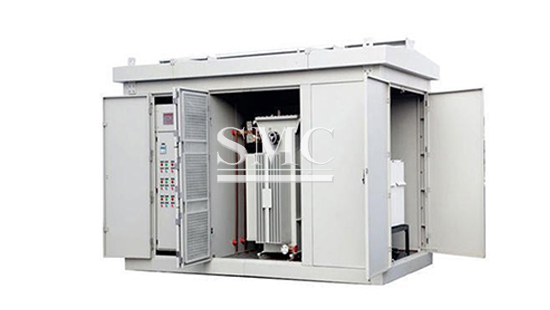

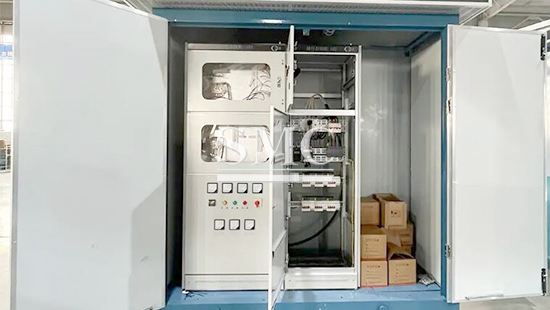

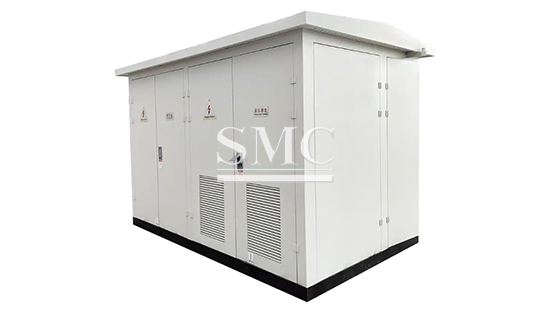

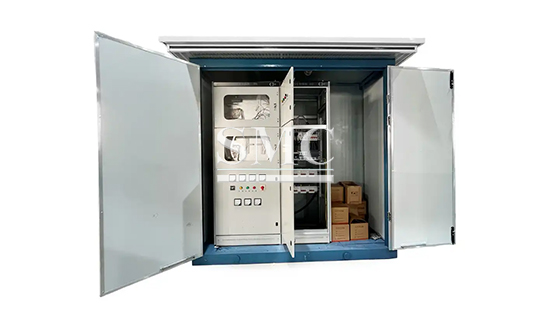

Transformer Box
Phase: Three
Rated Primary Voltage: 15000
Rated Secondary Voltage: 400
Power: AC/DC
Shanghai Metal Corporation is a leading Transformer Box manufacturer and supplier.
Shanghai Metal Corporation was established in 2004 year, headquarters is located at Shanghai China, with branch factory and branch company in FengYang city,xuzhou City, ShenYang city, NanTong city, and mainly produces medium and high voltage of 220v to 220kv power transformer, distribution transformer, pad mounted transformer, compact substation, dry transformer,isolation transformer, switchgear, voltage stabilizer, etc electric products, occupies 60,000 square meter, more than 500 employees, more than 50 engineers.
If you want to know more about our Electrical System products or Transformer Box price please feel free to contact us, we will reply you within 24 hours.

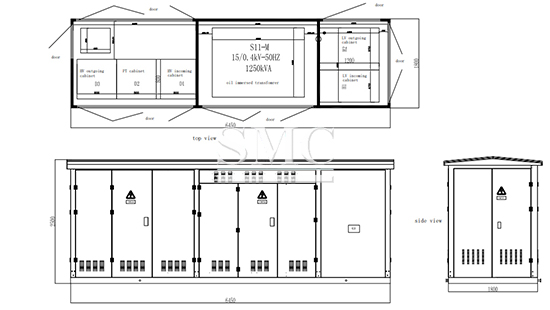

Technical Information of Transformer Box:
|
Rated frequency |
HZ |
50 |
|
Rated vollag |
Kv |
6 10 35 |
|
Rated current of main busbar |
A |
630 |
|
imin power frequency withstand voltage (to earth and between phases disconnecting fracture) |
Kv |
42/48 |
|
Lightning impulse withstand voltage (to earth and between phases/disconnecting fracture） |
Kv |
75/85 |
|
Rated short time withstand current |
kA/s |
75/86 |
|
Rated peak withstand current |
KA |
63 |
|
Rated short time making current |
KA |
50 |
|
Rated transfer current |
A |
1500 |
|
Breaking current of fuse |
KA |
31.5 40 |
|
|
||
|
Rated voltage |
V |
400 |
|
Rated current of main circuit |
A |
100-40000 |
|
Rated limiting short circuit breaking ability |
kA |
80 |
|
Rated operating short circuit breaking ability |
KA |
50 |
|
Rated short tine wilbstand current |
kA/1s |
50 |
Packaging of Transformer Box:
Standard shipping package
Design the package according to the demand of customers
