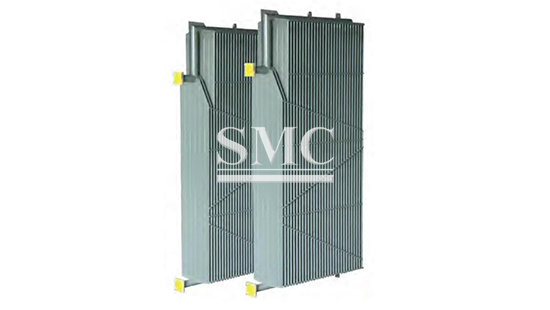

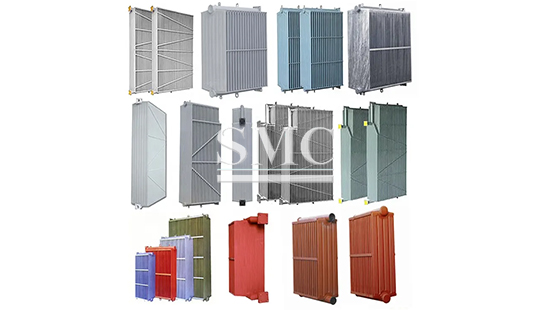

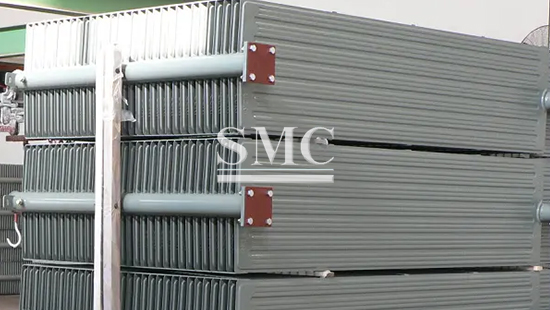

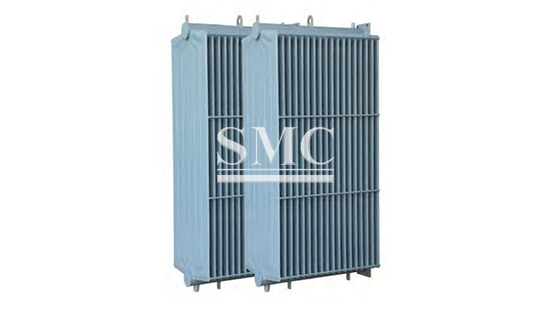

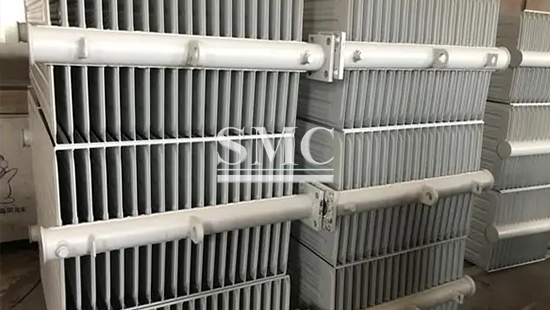

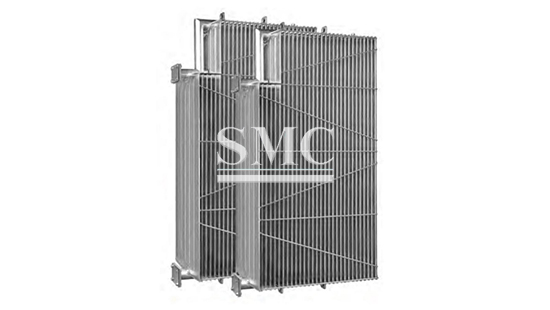

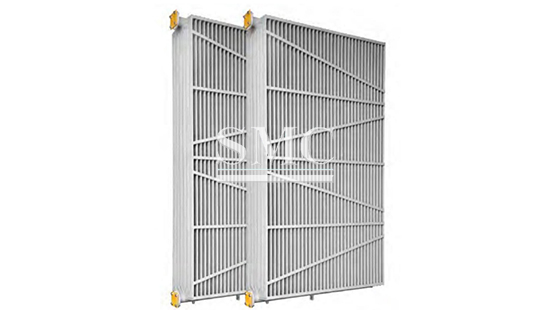

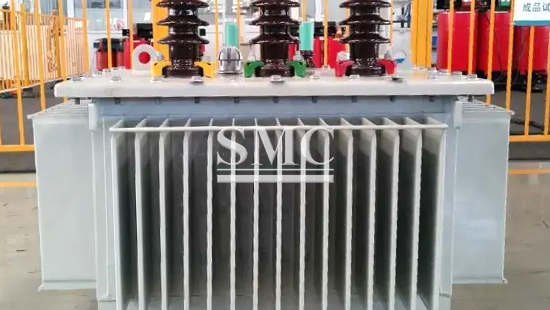

Transformer Corrugated Fin
Usage: Power
Phase: Three
Coil Structure: TOROIDAL
Coil Number: Customized
Shanghai Metal Corporation is a transformer corrugated fin manufacturer and supplier.
SMC is a company specializing in the production of high and low voltage switch power transmission and distribution equipment and high, low voltage electrical components, one of the professional production enterprises, the production of all fully insulated and fully sealed inflatable cabinet, intelligent solid insulation ring main unit, outdoor high voltage cable branch box, box-type substation, etc. Product quality is stable, reliable, It is deeply trusted and approved by the customers.
If you want to know more about our electrical products or transformer corrugated fin price please feel free to contact us, we will reply you within 24 hours.
Technical Information of Transformer Corrugated Fin:
|
Model (kVA) |
HV/LV (kV) |
No Load Loss (W) |
Weight (kg) |
Dimension (mm) |
|
30 |
0.2-20 |
100 |
325 |
750*470*930 |
|
50 |
130 |
420 |
800*490*1000 |
|
|
63 |
150 |
470 |
840*500*1010 |
|
|
80 |
180 |
540 |
870*510*1130 |
|
|
100 |
200 |
605 |
890*520*1140 |
|
|
125 |
240 |
680 |
920*590*1150 |
|
|
160 |
270 |
790 |
1110*580*1170 |
|
|
200 |
330 |
930 |
1160*620*1225 |
|
|
250 |
400 |
1100 |
1230*660*1270 |
|
|
315 |
480 |
1250 |
1250*680*1300 |
|
|
400 |
570 |
1550 |
1380*750*1380 |
|
|
500 |
680 |
1820 |
1430*770*1420 |
|
|
630 |
810 |
2065 |
1560*865*1480 |
|
|
800 |
980 |
2510 |
1620*880*1520 |
|
|
1000 |
1150 |
2890 |
1830*1070*1540 |
|
|
1250 |
1360 |
3425 |
1850*1100*1660 |
|
|
1600 |
1640 |
4175 |
1950*1290*1730 |
|
|
2000 |
2050 |
4510 |
2090*1290*1760 |
|
|
2500 |
2500 |
5730 |
2140*1340*1910 |
|
|
3150 |
2800 |
7060 |
2980*2050*2400 |

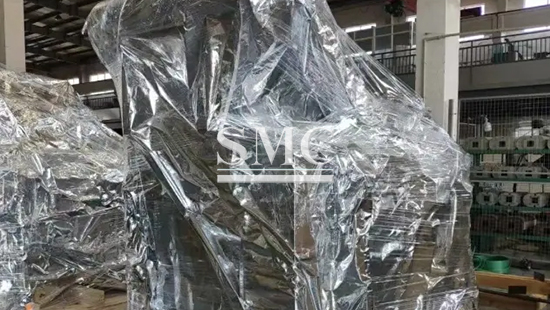

Packaging of Transformer Corrugated Fin:
Shanghai Metal Products are packed and labeled acording to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1) Shanghai Metal Standard
2) Customization
