Tube-bundle Container/ Tube Skid Container

Material: 4130x

Standard: GB/ ISO standard

Available Medium: CNG, H₂, etc.

Product Detail | Technical Information

Product Detail

Shanghai Metal Corporation is a leading Tube-bundle Container manufacturer and supplier.

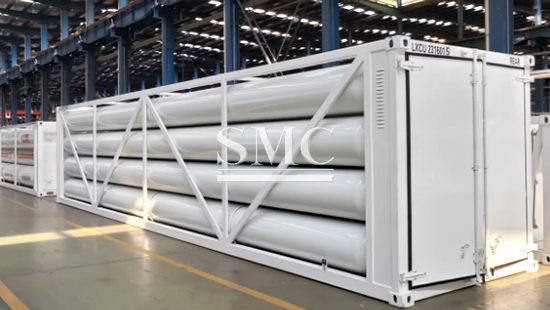

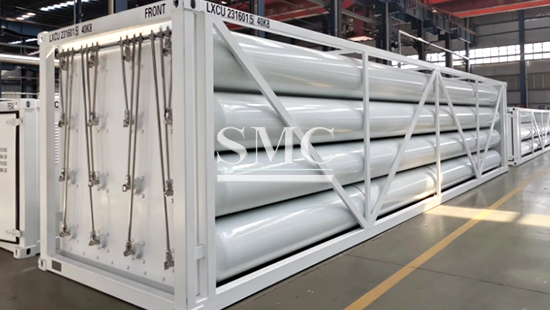

Tube-bundle Container, or Tube Skid Container, is a special kind of container used for carrying gases like CNG and H₂. It is composed of several gas cylinders, which are fixed inside the frame of a 20ft or 40ft container. It is suitable for the storage and transportation of big quantities of gases, and as a type of container, it can be shipped by sea.

If you want to know more about our Container products or Tube-bundle Container price please feel free to contact us, we will reply you within 24 hours.

1. Material: 4130x

2. Standard: GB/ISO standard

3. Working Pressure: 20 MPa

1. Available Medium: CNG, H₂, etc.

2. Inside the frame of a 20ft or 40ft container

3. Corrosion and pressure resistance

1. Multiple capacity choices

2. Large filling capacity

3. Available to be transported by sea

Technical Information of Tube-bundle Container/ Tube Skid Container:

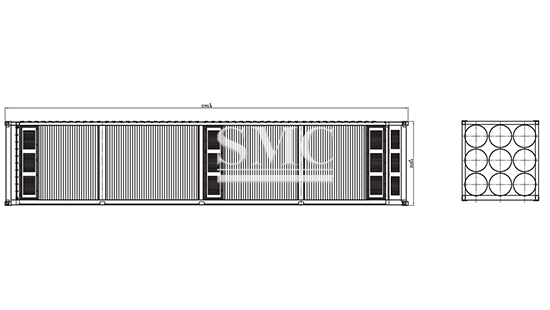

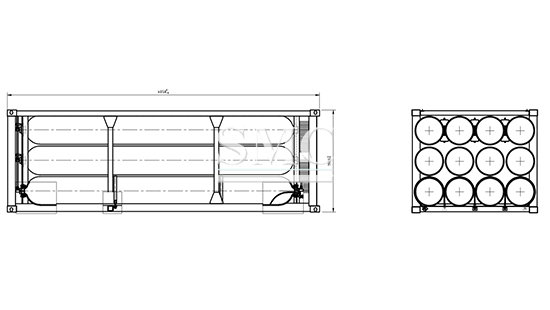

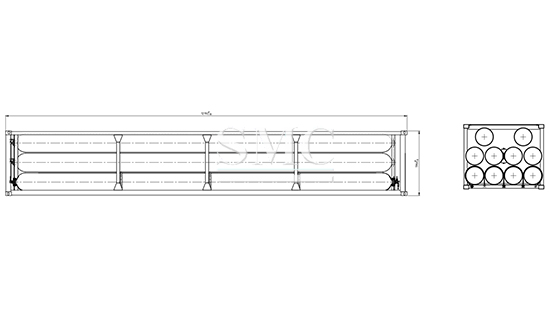

SPECIFICATIONS OF TUBE-BUNDLE CONTAINER
TYPE	MEDIUM	NORMINAL WORKING PRESSURE (Mpa)	TOTAL VOLUME (m³)	VOLUME OF MEDIUM (Nm³)	PAYLOAD (KG)	OVERALL DIMENSION *(LWH)*
6 tubes	CNG	20	23.88	6048	4150	12192×2438×1760
6 tubes	CNG	20	25.38	6408	4180	12192×2438×3000
7 tubes	H₂	20	26.25	4627	385.7	12192×2438×2260
7 tubes	He	20	26.18	4760	788	12192×2438×2260
8 tubes	H₂	20	25.6	4528	376	12192×2438×2050
9 tubes	H₂	20	37.44	6615	549	12192×2438×2535
9 tubes	He	20	37.44	6804	1125	12192×2438×2535
10 tubes	H₂	20	23.8	4190	376	12192×2438×1960
10 tubes	He	20	23.8	4310	763	12192×2438×1960
12 tubes	CNG	20	12.72	3200	2298	6058×2438×1980
	H₂	20	12.84	2244	200	6058×2438×1980
	He	20	27.96	5064	828	12192×2438×1980
16 tubes	He	20	16.96	3084	510	6058×2438×2591
16 tubes	He, H₂	25	17.28	3700/3840	309/636	6058×2438×2591
