Size: 5 - 180mm

Application: Used for high-voltage and ultra-high voltage overhead transmission lines and substations.

Product Detail | Technical Information | Packaging

Product Detail

Shanghai Metal Corporation is a leading electrical insulator manufacturer and supplier.

Insulators are a special type of insulation control installed between conductors of different potentials or between conductors and grounding components. Their most important function is to insulate charged bodies. In the electrified railway contact network power supply system, insulators block the 27.5kV high-voltage electricity on the contact line and guide it to the grounding pillar through the support device, thereby avoiding the pillar from becoming a high-voltage live body, ensuring the safety of railway power supply and the safety of life along the railway. The reason why hey can block current is that they are made of insulating materials, and in order to better insulate, their bodies are often presented in the shape of stacked discs and umbrellas. If there are no extreme external factors, their service life can reach 10 to 40 years.

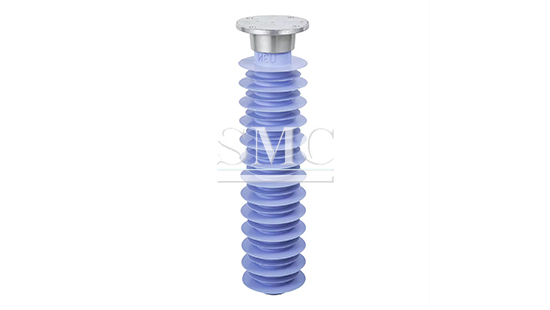

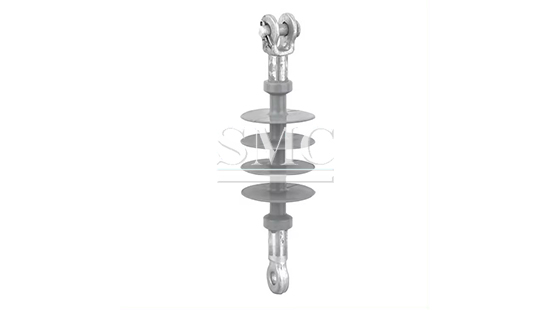

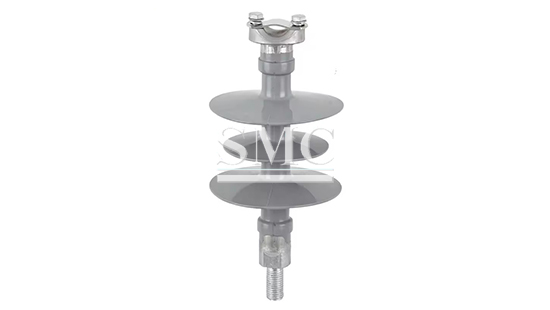

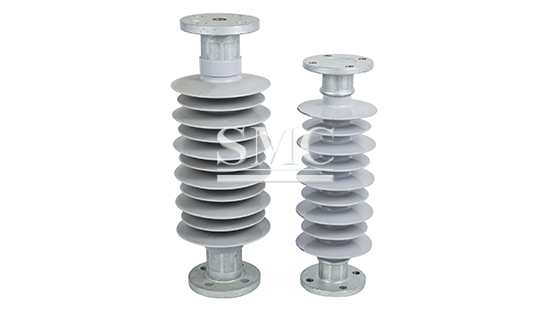

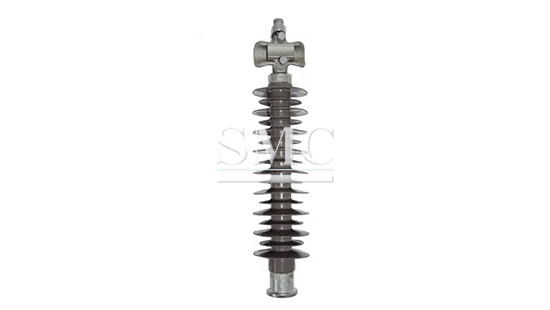

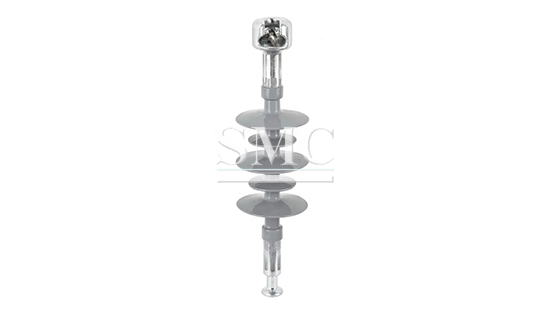

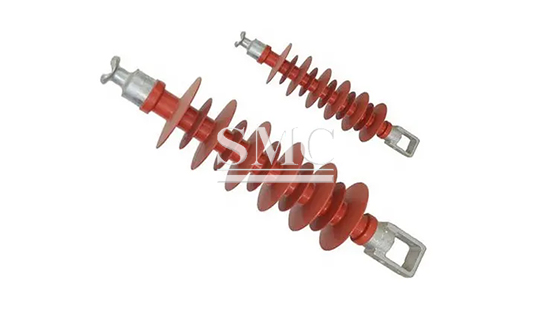

There are mainly 2 types. Firstly, porcelain insulators, they are mainly composed of electrical ceramic parts and galvanized steel caps, which are assembled by cement glue. The porcelain parts, which resemble stacked plates, are made by firing quartz, feldspar, and clay with extremely high insulation performance. The surface of porcelain insulators is usually covered with porcelain glaze, which is waterproof and wettable. While increasing surface smoothness, it can also improve anti fouling performance, corrosion resistance, and enhance mechanical strength, dielectric strength, and thermal stability.Secondly, composite insulators, they are mainly composed of glass fiber epoxy resin pull rods, silicone rubber umbrella sleeves, and metal accessories. The form of large and small umbrellas can provide better anti pollution performance. Compared to porcelain insulators, they have the characteristics of small size, light weight, high tensile strength, and excellent anti fouling performance.

If you want to know more about our electrical insulator, please feel free to contact us, we will reply you within 24 hours.

Diameter: 5-180mm Insulator core rod(epoxy resin rod)

Rated Voltage: 25KV

Tensile Strength: 160KN

Construction: Composite Polymer

Type: Ball, Socket, Tongue, Clevis, Flange and so on)

Standard color: grey, other colors available on request

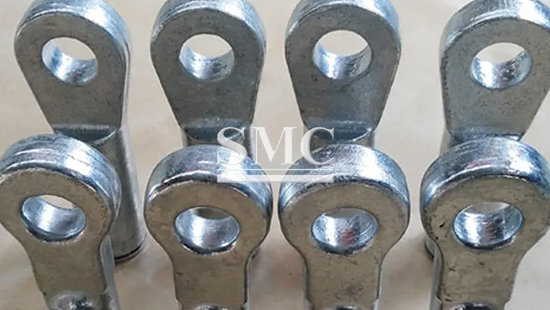

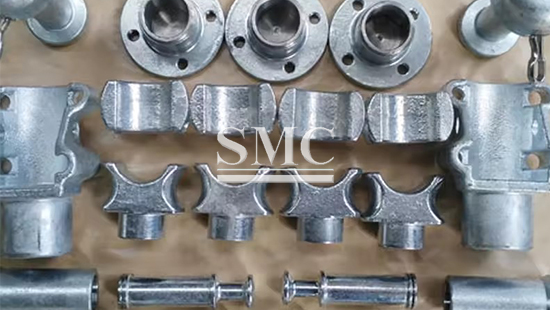

The material of metal end fittings is used with hot galvanization and technology of rare earth aluminum coating to avoid coating shedding when crimping, prolonging the service life of the product.

Shed connected with core by integral forming

Metal end fittings, core and sheds connected by new crimping process

The thickness of housing > 3mm, uniform thickness, confirm to IEC Standard

Acid resistant, high temperature resistant

Small volume, light weight, sheds have good elasticity, not easy to break, convenient transportation and installation.

High mechanical strength. FRP ROD has high tensile strength, which makes the products small size, light weight, high tensile strength, and easy to manufacture more than 300KN large tons insulators.

High antifouling property, good aging resistance performance, the sheds made of silicone rubber injection mold has good hydrophobicity and migration, which makes insulator high anti pollution flashover voltage and good electric corrosion resistance.

Easy installation and maintenance, can greatly reduce outage loss which cause due to maintenance and maintenance charges which cause by manual labor intensity.

Compact structure, strong integrity, good anti pollution ability, light weight, small volume, good insulation performance, and high mechanical strength.

Do not require regular cleaning and are mainly used in the construction of high-speed railways and urban light rail transportation, bringing great convenience to storage, transportation, installation, and maintenance.

The support arm is made of stainless steel composite material, which has better anti-corrosion performance and solves weather conditions such as damp and acid rain caused by corrosion products. It can greatly extend the service life of the product and provide reliable guarantee for the implementation of compact transmission line construction in equipment.

Technical Information of Electrical Insulator:

Type	Rated voltage	Rated Mechanical falling load		Mounting height	Creepage distance (mm)	Lighting impulse withstand voltage	Power frequency withstand voltage
						kV	(Effective value)
						(peak)	Not less than
		Bending P0	Tension			Not less than	1min	1min
		Kn	Kn				Dry	Wet
FQB-25/8	25	8	80	760	1200	270	160	130
FQBS-25/8	25	8	80	850	1200	290	175	140
FQBJ-25/8	25	8	80	760	1400	290	175	140
FQBSG-25/8	25	8	80	890	1600	310	190	150
FQB-25/12	25	12	120	760	1200	270	160	130
FQBG-25/12	25	12	120	800	1600	310	190	150
FQBSJ-25/12	25	12	120	850	1400	290	175	140
FQBSG-25/12	25	12	120	890	1600	310	190	150
FQB-25/16	25	16	160	760	1200	270	160	130
FQBJ-25/16	25	16	160	800	1400	290	175	130
FQBSG-25/16	25	16	160	890	1600	310	190	150
FQX-25/12QT	25	5.25	120	700	1200	270	160	130
FQXSG-25/12QQ	25	5.25	120	824	1200	310	190	150
FQXSJ-25/12QQ	25	5.25	120	840	1400	290	175	140
FQXSG-25/12HH	25	5.25	120	890	1600	310	190	150
FQX-25/16QT	25	*	160	750	1200	290	175	140
FQXSJ-25/16HH	25	*	160	890	1400	290	175	140
FQX-25/16HH	25	*	160	940	1600	310	190	150

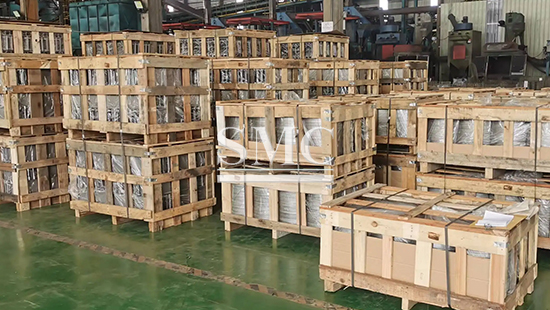

Packaging of electrical insulator:

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)Shanghai Metal Standard

2)Customization
