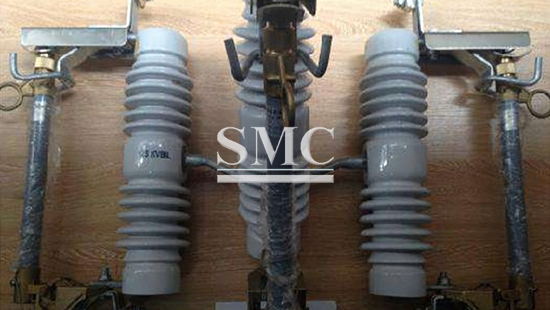

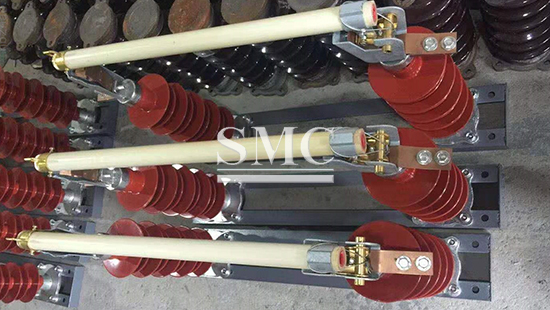

Dropout Fuse Cutout
Size: 40 - 65mm
Application: Used for various electrical equipment, especially high-power electrical equipment and high-voltage electrical equipment.
Shanghai Metal Corporation is a leading Dropout Fuse Cutout manufacturer and supplier.

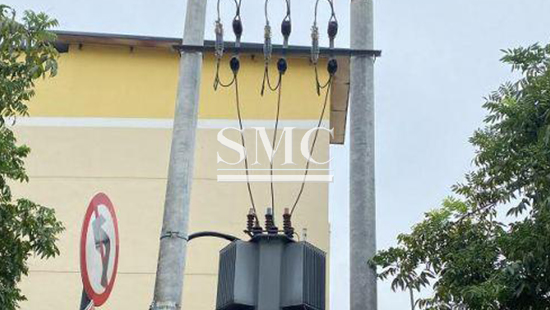

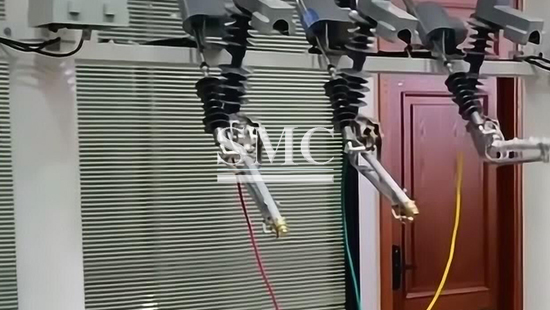

Dropout Fuse Cutout is the most commonly used short-circuit protection switch for 10kV distribution line branch lines and distribution transformers. The drop type fuse is installed on the branch line of a 10kV distribution line, which can reduce the power outage range. Due to its obvious disconnection point, it has the function of an isolation switch, creating a safe working environment for the maintenance section of the line and equipment. Installed on the distribution transformer, it can serve as the main protection of the distribution transformer.

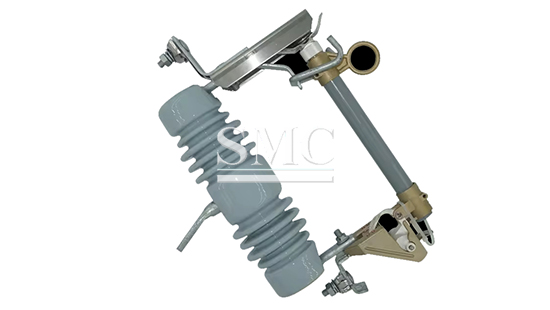

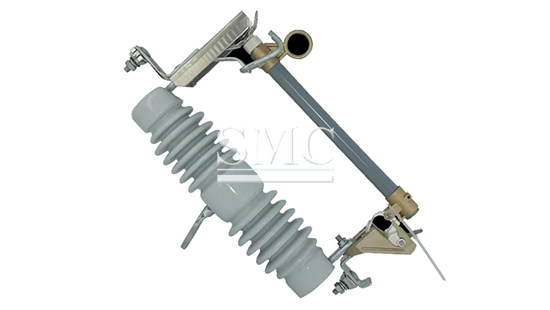

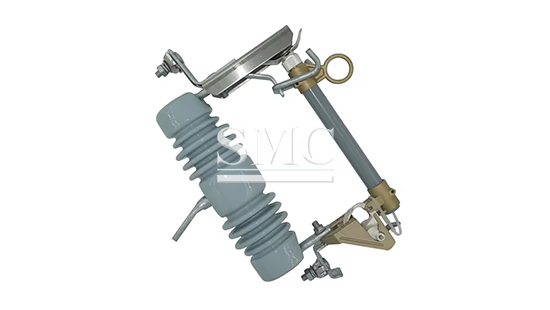

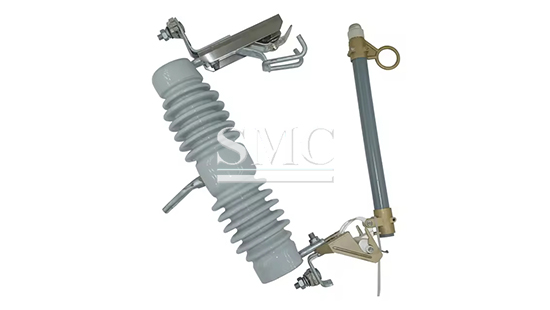

Dropout Fuse Cutout consists of Nut, Long Bolts, Mounting Bracket, Porcelain Insulator, Spring Washer, Onepiece channel, Fuse Tube, Lower Socket, Lower contacts, Connector, Upper Contacts, Attachment Hooks, and Operation Ring.
If you want to know more about our Dropout Fuse Cutout , please feel free to contact us, we will reply you within 24 hours.
Technical Information of Dropout Fuse Cutout:
|
Type |
Rated Voltage |
Rated Current |
Breaking Current |
Impulse Voltage |
Power-frequency withstand voltage |
Creepage Distance |
Weight |
Dimension |
|
(kv) |
(A) |
(A) |
(BIL)(KV) |
(KV) |
(mm) |
(kgs) |
(cm) |
|
|
YK1-11 |
11-15' |
100 |
8000 |
110 |
40 |
240 |
6.5 |
40*36*11.5 |
|
11-15' |
200 |
10000 |
110 |
40 |
240 |
6.5 |
||
|
YK1-15 |
15-27 |
100 |
8000 |
125 |
45 |
320 |
8.5 |
50*32*12.5 |
|
15-27 |
200 |
10000 |
125 |
45 |
320 |
8.5 |
||
|
YK1-24 |
24-27 |
100 |
8000 |
150 |
65 |
510 |
10 |
50*38*16 |
|
24-27 |
200 |
10000 |
150 |
65 |
510 |
10 |
||
|
YK1-33 |
33-36 |
100 |
8000 |
170 |
70 |
660 |
13 |
64*35*18 |
|
33-36 |
200 |
10000 |
170 |
70 |
660 |
13 |

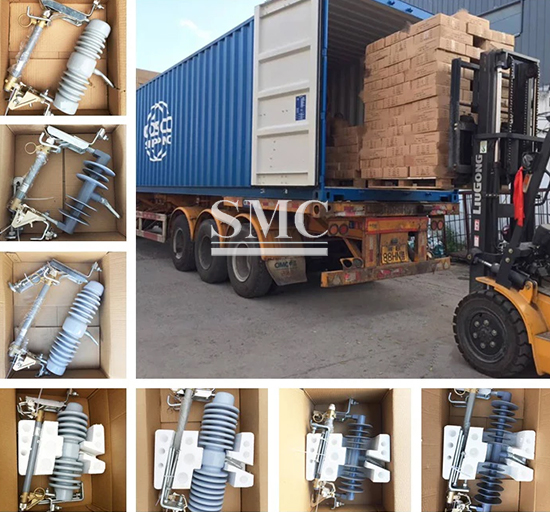

Packaging of Dropout Fuse Cutout:
Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1)Shanghai Metal Standard
2)Customization
