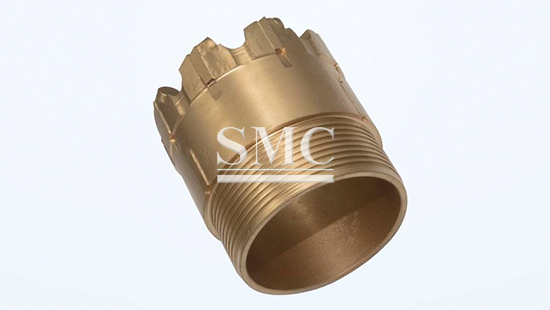

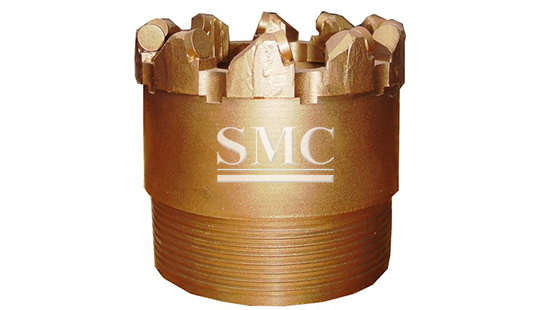

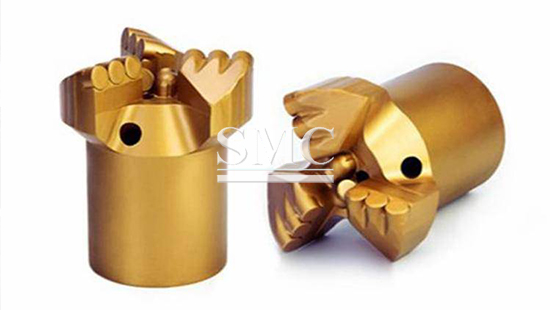

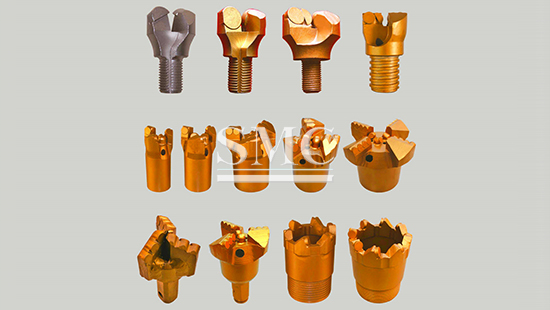

Polycrystalline Diamond Compact Bit
Bit Diameter: 27mm - 270mm
Maximum Drilling Depth: up to 7000 m
Shanghai Metal Corporation is experienced manufacturer of Polycrystalline Diamond Compact Bit in China since 1980s.

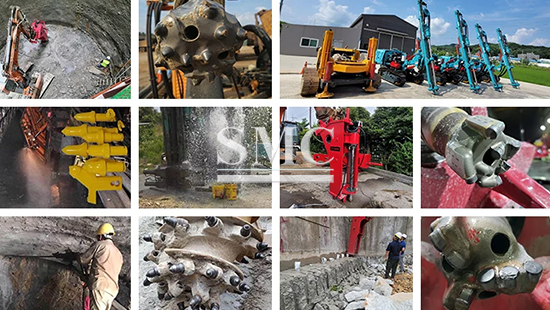

PDC Drill Bit (Polycrystalline Diamond Compact Bit) is a high-efficiency rock-breaking tool widely used in oil & gas drilling and geological exploration. Its core component is the PDC compact—a composite of polycrystalline diamond (top layer) and tungsten carbide (support layer)—sintered under high pressure and temperature. This design combines diamond’s extreme hardness (close to natural diamond) with carbide’s structural strength, enabling superior wear resistance and cutting efficiency.
If you want to know more about sheave pulley block or hoisting block, please feel free to contact us, we will reply you within 24hours.
Technical Information of Polycrystalline Diamond Compact Bit：
|
聚晶金刚石复合片钻头技术参数 |
|||
|
钻头直径（mm） |
钻压（KN） |
转速（RPM） |
泵量(L/min) |
|
Φ27 |
4.0-6..0 |
800-900 |
40-60 |
|
Φ42 |
6.0-8.0 |
300-500 |
80-150 |
|
Φ75 |
4.8-12.0 |
200-300 |
150-200 |
|
Φ94 |
6.4-16.0 |
150-250 |
200-250 |
|
Φ110 |
8.8-22.0 |
120-200 |
200-300 |
|
Φ152 |
15.0-30.0 |
100-200 |
500-850 |
|
Φ190 |
18.0-44.0 |
100-150 |
600-1200 |
|
Φ230 |
32.0-45.0 |
100-200 |
750-1400 |
|
Φ270 |
24.0-50.0 |
100-200 |
1000-1500 |
|
|
|
|
|
|
聚晶金刚石复合片钻头技术参数 |
|||
|
|
|
适 应 岩 层 |
|
|
1 |
Common |
Soft - medium hard rocks with F<10 |
|
|
2 |
Strengthen |
Medium hard rock with F=10-12 |
|
|
3 |
High-strength |
Hard rock with F<18 |
|

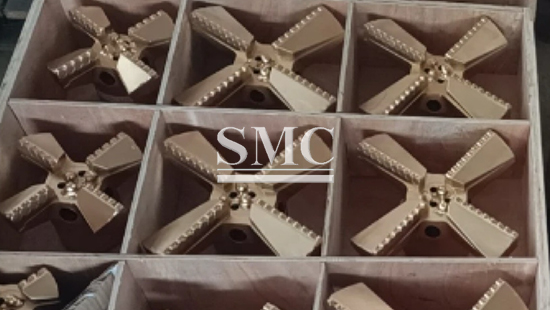

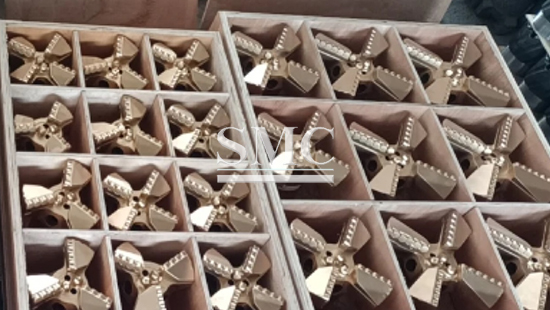

Packaging Of Polycrystalline Diamond Compact Bit：
Products of Shanghai Metal Corporation are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1)SMC Standard
2)Customization
