Steel Wire Rope Electric Hoist

Lifting capacity: 0.25T ~ 32T

Lifting height: 3m ~ 45m

Working class: M3, M4, M5

Product Detail | Technical Information | Packaging

Product Detail

Shanghai Metal Corporation is a professional manufacturer and supplier of Steel Wire Rope Electric Hoist with high quality and reasonable price.

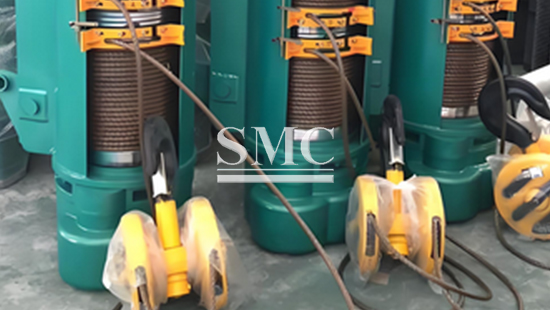

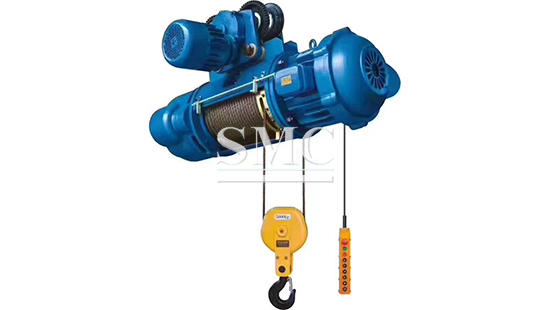

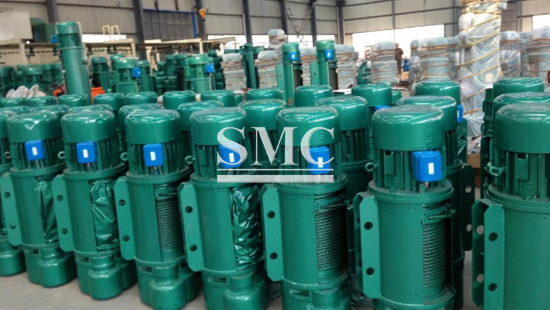

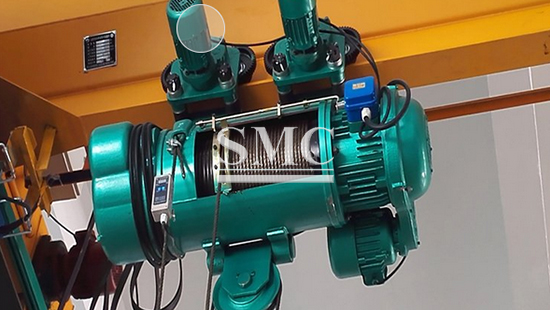

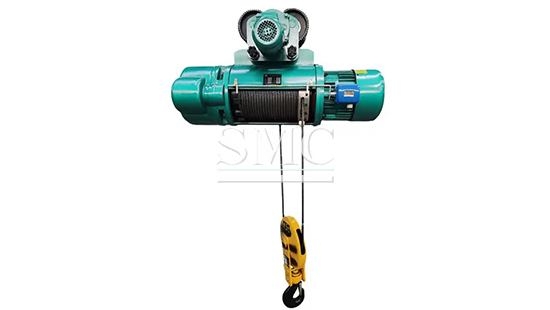

Steel Wire rope electric hoist is a small lifting equipment with the advantages of light weight, small volume and easy operation. The components of steel wire rope electric hoist include motor, transmission mechanism, drum, and wire rope. It is mainly used for various lifting, pulling, loading and unloading heavy objects, inverted welding of oil tanks, such as mines, power, shipbuilding, automobile manufacturing, construction, highways, bridges etc.

If you want to know more about Steel Wire Rope Electric Hoist price please feel free to contact us, we will reply you within 24 hours

Lifting capacity : 0.25T/0.5T/1T/2T/3T/5T/10T/16T/20T/32T
Lifting height: 3m, 6m, 9m, 12m, 18m, 20m, 30m etc
Model as per running speed : CD1, MD1
CD1: 8m/min, 7m/min, 3.5m/min
MD1: 8m/min,0.8m/min; 7m/min, 0.7m/min; 3.5m/min,0.35m/min
Components: motor, transmission mechanism, drum, and wire rope

1. Compacted design, small volume, easy to install and use in various places.
2. The CD1 steel wire rope electric hoist has strong lifting capacity and can meet the lifting needs of goods of different weights. Its lifting speed and operating speed can be adjusted according to actual working conditions, making it flexible and convenient to operate.

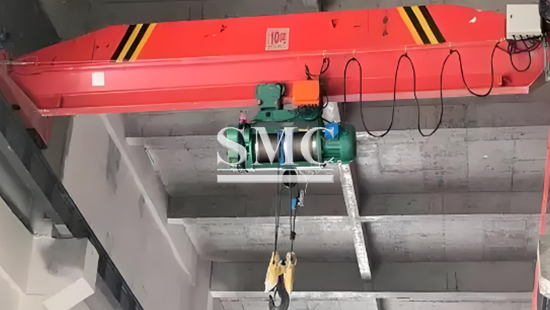

3. The application range of CD1 steel wire rope electric hoist is very wide. In factory, it is commonly used for lifting raw materials, finished products, components etc; At construction sites, it can be used to lift building materials, equipment etc; In logistics and warehousing facilities, it can carry out efficient loading, unloading and handling of goods.

1. Factory equipment
2. Power plant
3. Mine machinery
4. Agriculture and electricity

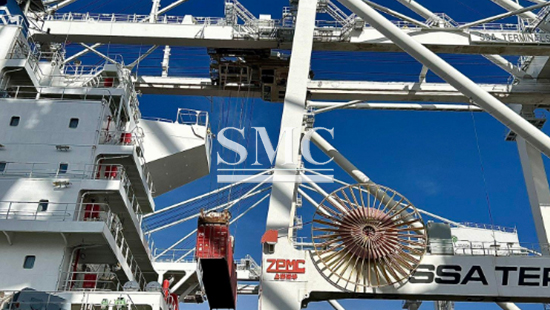

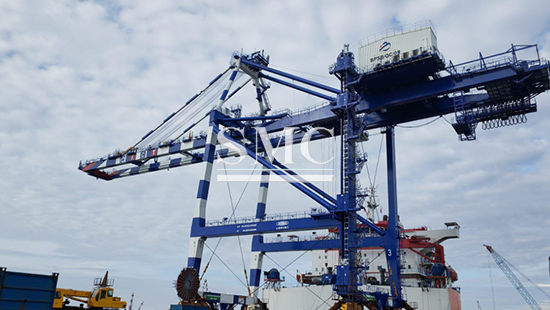

5. Docks and port
6. Warehouse crane

Technical Information of Steel Wire Rope Electric Hoist:

Datasheet of CD and MD model Electric Hoist
Model	CD1, MD1
Lifting capacity/T	0.25T	0.5T	1T	2T	3T
Lifting height/meter	3m/6m/9m	6m/9m/12m	6m-30m	6m-30m	6m-30m
Lifting speed(m/min)	8	8/0.8	8/0.8	8/0.8	8/0.8
Running speed(m/min)	20(30)	20(30)	20(30)	20(30)	20(30)
Wire rope( φ/mm)	3.6	4.8	7.4	11	13
rope construction	6x9	6x37	6x37	6x37	6x37
Voltage	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz
Model	CD1	MD1	CD
Lifting capacity/T	5T	10T	16T	20T
Lifting height/meter	6m-30m	6m-30m	6m/9m/12m	6m/9m/12m
Lifting speed(m/min)	8/0.8	7/0.7	3.5, 3.5/0.35	3.5, 3.5/0.35
Running speed(m/min)	20(30)	20(30)	18	20
Wire rope( φ/mm)	15	15	15	18
rope construction	6x37	6x37	6x37	6x37
Voltage	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz

Packaging of Steel Wire Rope Electric Hoist:

Products of Shanghai Metal Corporation are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)SMC Standard

2)Customization
