Aluminum Foil

Aluminum Foil For Honeycomb Core

    Temper: H14, H18, H24



    Grade: 5052, 3003


    Thickness:  0.03 mm - 0.08 mm


    Width: 100mm - 1600mm



    Wetting tension: A

Details of Aluminum Foil For Honeycomb Core:

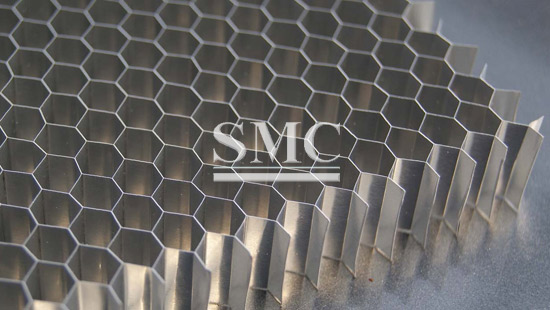

Aluminum honeycomb core is made of multi-layer aluminum foil expanded into a regular honeycomb shape. The factors affecting

the property of the honeycomb core material such as aluminum foil, noodle glue and honeycomb core specifications. As the most

important material, aluminum foil has a great influence on the quality and service life of the honeycomb core.

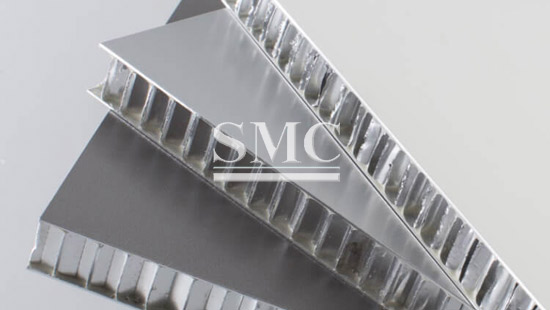

Aluminum honeycomb panel, bottom plate and panel, mainly use high quality 3003-H24 or 5052-H14 alloy aluminum plate, the

thickness of aluminum plate is between 0.4mm-3.0mm.

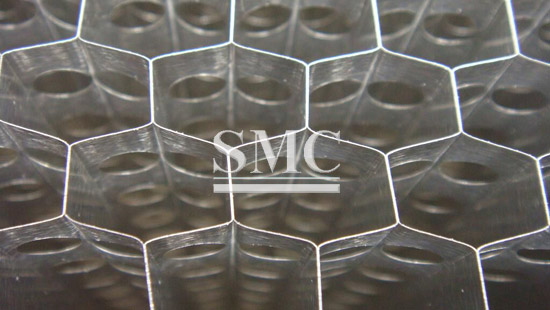

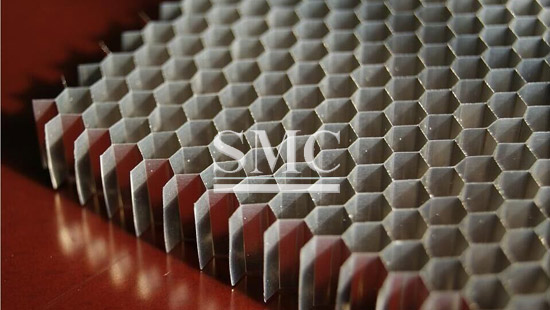

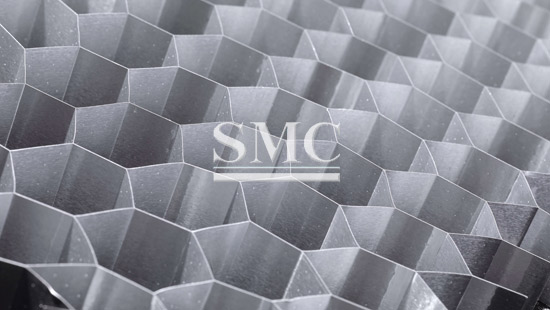

The aluminum honeycomb core material adopts a hexagonal honeycomb core made of 3003 aluminum foil, the thickness of the

aluminum foil is 0.02 to 0.06mm, and the aluminum honeycomb side length is 5mm, 6mm, 8mm, 10mm, 12mm etc.

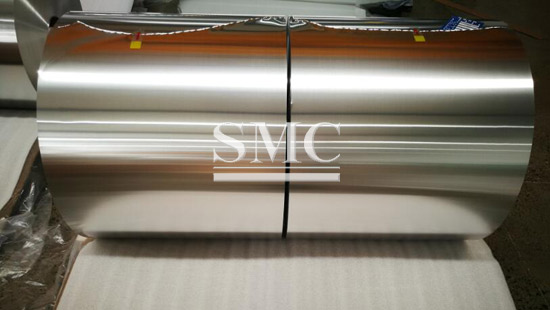

Shanghai Metal Corporation can produce quality luminum foil substrates with 3003 honeycomb cores of various widths from

0.02-0.06mm thick. The products have clean oil, high strength and flatness.


Specifications of Aluminum Foil For Honeycomb Core​:

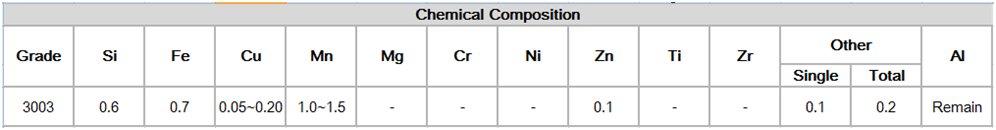

Typical alloy: 3003 aluminum foil

Temper: H14, H18, H24

Thickness:  0.03,mm - 0.08 mm

Width: 100 mm - 1600 mm

Length: per customer's request






Packaging of Aluminum Foil For Honeycomb Core:

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of product and quality information.

1) Shanghai Metal Standard

2) Customization

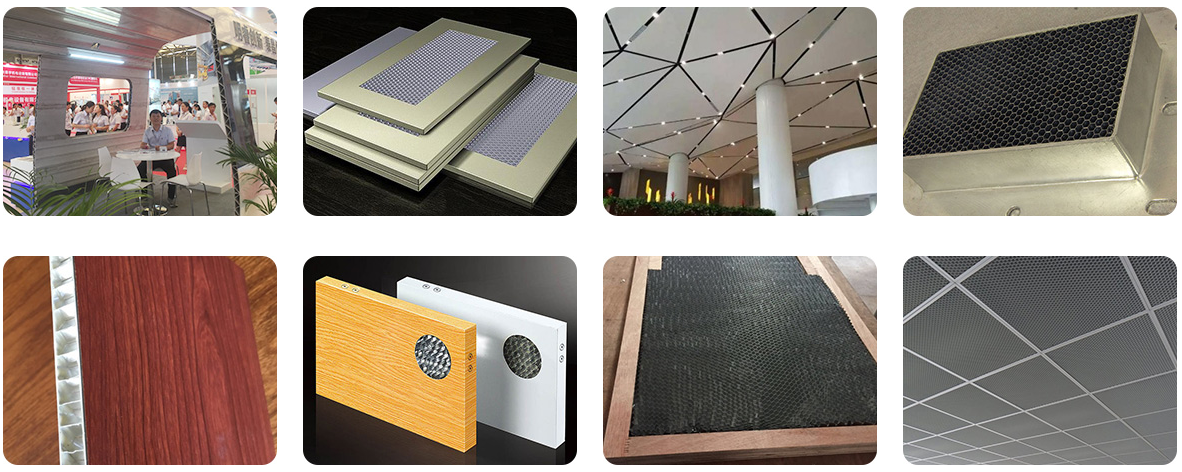

Application of Aluminum Foil For Honeycomb Core:
