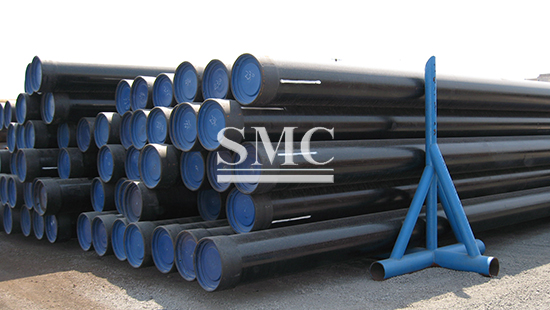

API 5CT J55/ N55/ P110 Oil Casing Pipe

    Diameter: 4-1/2”~20”(114.3mm ~ 508mm)

    Steel Grade: H40/J55/K55/N80/C75/L80/C90/T95/P110/Q125

    Pipe Type: Seamless (SMLS), Electric Resistance Welded (ERW)

Shanghai Metal Corporation is a leading API 5CT J55/N55/P110 Oil Casing Pipe manufacturer and supplier.

The API casing is generally used for the borehole wall assistance in the exploration and also after the completion of a well, so as to guarantee the smooth operating of the drilling procedure and the regular procedure of the entire oil well after well completion. It is mainly used in oil, all-natural gas, coal bed methane, water supply, thermal power generation, hydro power penstock, thermal power generation, digging up design, and various other markets.

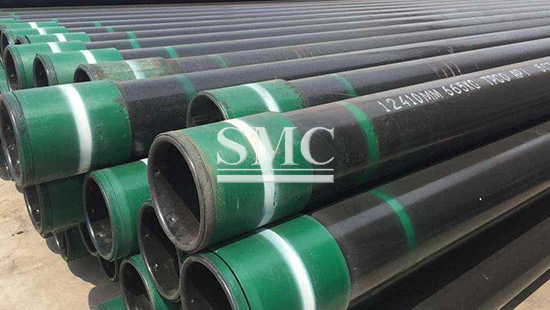

In most cases, casing pipe gets seamless steel pipe as the raw material. But some big sizes with special wall thickness need to choose straight seam pipe (ERW or LSAW) as the pipe body. The chosen steel pipes must be processed operating screw strings at both ends. One end is attached to the coupling, while the other end is outfitted with the thread protector.

If you want to know more about our steel pipe products or API 5CT J55/N55/P110 Oil Casing Pipe price please feel free to contact us, we will reply you within 24 hours.

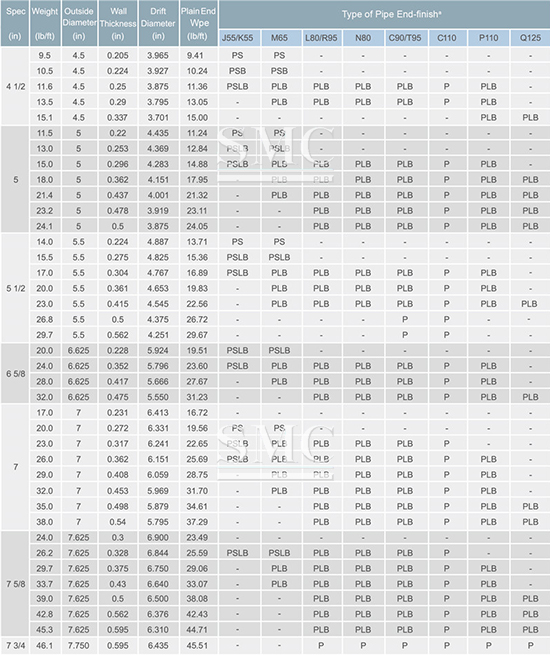

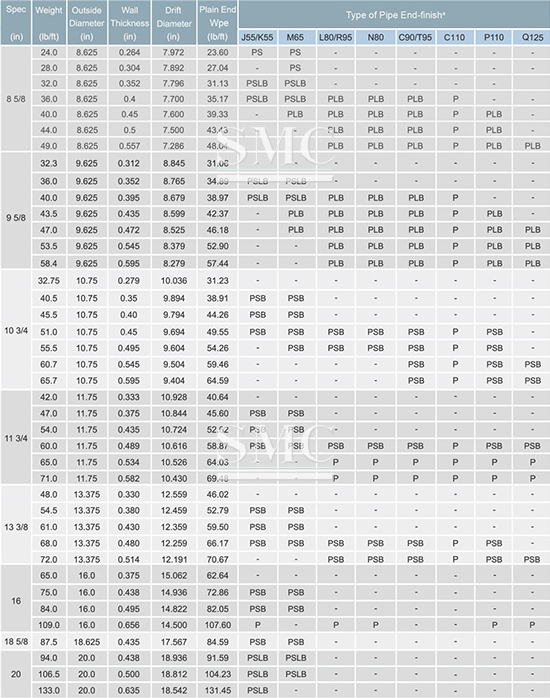

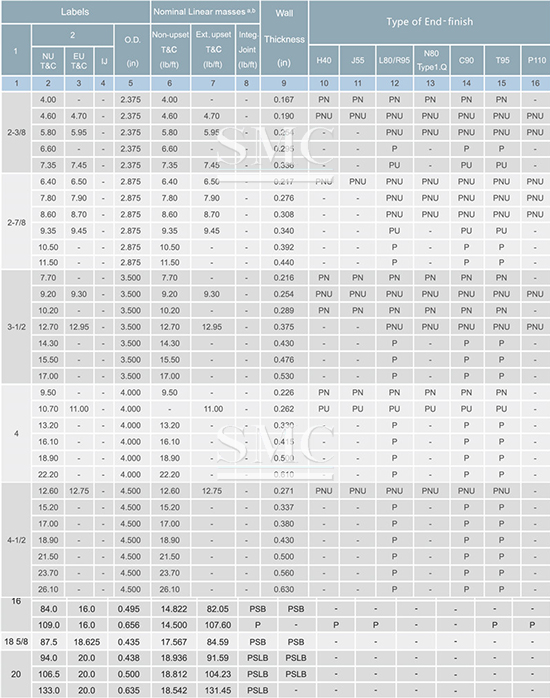

a)Our Diameter: 4 1/2" ~ 20" (114.3 mm ~ 508mm)

b)Wall Thickness : as per API 5CT standard ( the latest edition )

c)Lenght: R1, R2, R3

d)Steel Grade: H40/J 55/K55/N80/ C75/L80/C90/ T95/ P110/Q125

e)Pipe Type: Seamless (SMLS), Electric Resistance Welded (ERW)

f)Threads or Connection: LTC/STC/BTC/ Left Hand connection or other premium threads like: VAM

g)Surface Treatment: Anti-corrosion Water Based Paint


Note: other premium connection shall be provided as per customer requirements.

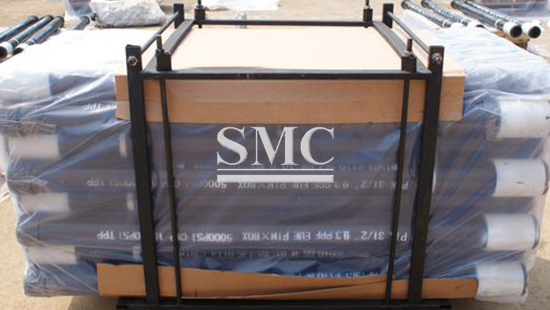

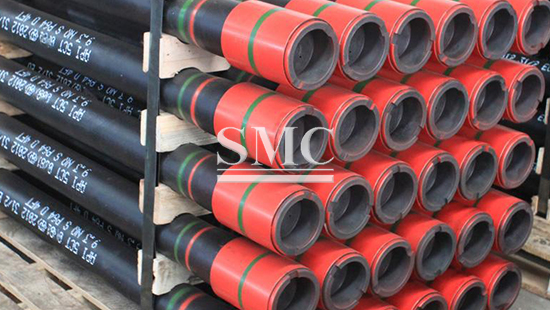

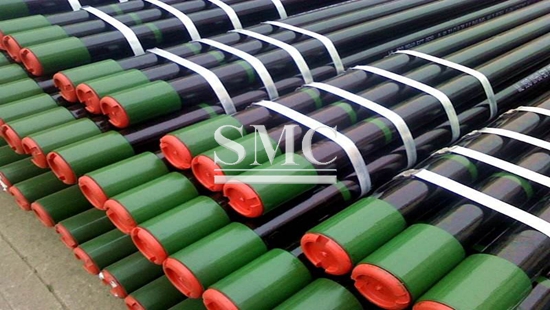

Packaging of API 5CT J55/N55/P110 Oil Casing Pipe:

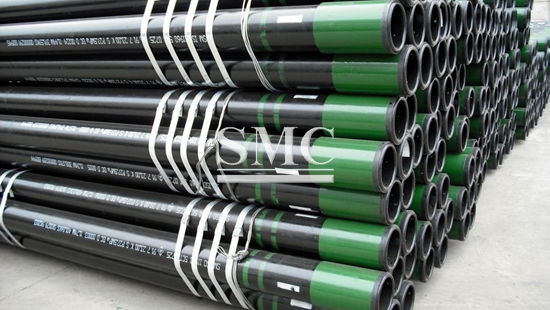

Protection Caps on both ends and in bundles with steel strips and two tags as per export requirements

More of API 5CT J55/N55/P110 Oil Casing Pipe:

Application: Used as the architectural retainer for the walls of oil, gas wells
