High Carbon, Special Steel

Binding/Packing Steel Strip-Steel Strapping

    ColorBlue,White,Black and so on


    Size: As customers requirement

  • BWG28 X 1/2'', 5/8'' (0.36mm x 12.7mm, 16mm)

    BWG27 X 1/2'', 5/8'' (0.40mm x 12.7mm, 16mm)

    BWG25 X 1/2'', 5/8'', 3/4'' (0.50mm x 12.7mm, 16mm, 19mm)

    BWG24 X 5/8'', 3/4'' (0.60mm x 16mm, 19mm)

    BWG23 X 5/8'', 3/4'' (0.65mm x 16mm, 19mm)

    BWG22 X 3/4'', 5/4'' (0.70mm x 19mm, 32mm)

    BWG21 X 3/4'', 5/4'' (0.80mm x 19mm, 32mm)

    BWG20 X 3/4'', 5/4'' (0.90mm x 19mm, 32mm)

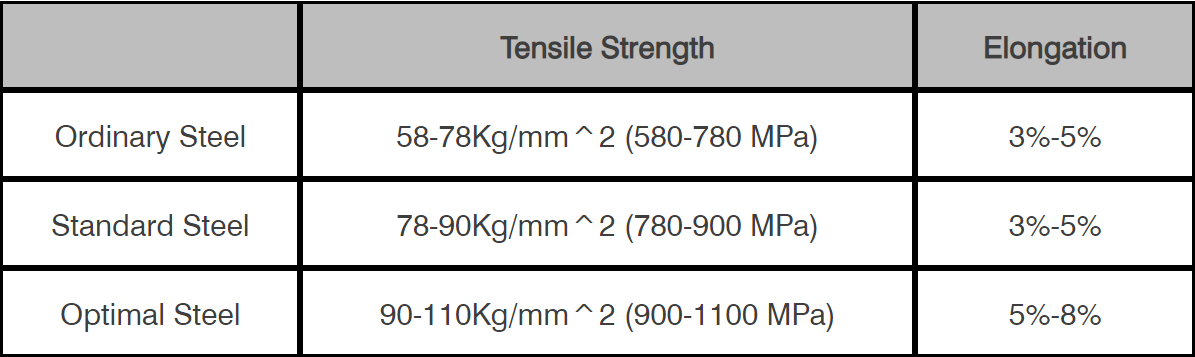

  • Tensile Strength

    Elongation

    Ordinary Steel

    58-78Kg/mm^2 (580-780 MPa)

    3%-5%

    Standard Steel

    78-90Kg/mm^2 (780-900 MPa)

    3%-5%

    Optimal Steel

    90-110Kg/mm^2 (900-1100 MPa)

    5%-8%

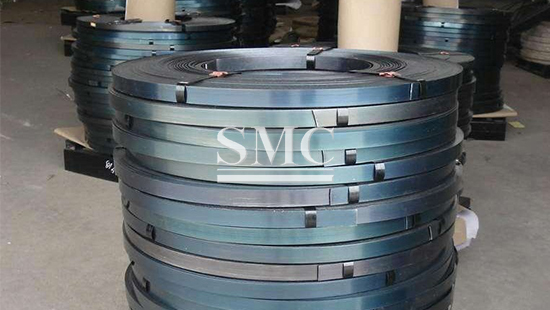

    • (1)Blue steel packing strips

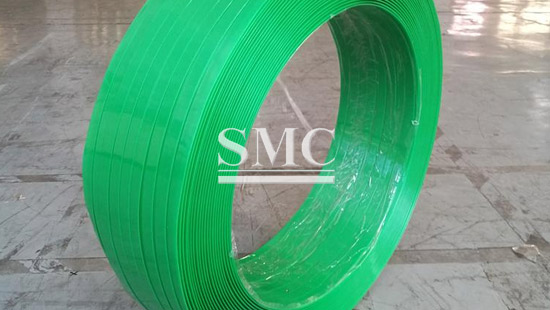

      (2)Green steel packing strips

      (3) Painted steel packing strips(black, white and so on)




  • - wood
    - paper
    - glass
    - steel strapping packing
    - welded pipe
    - other large objects.


  • Wound type of Steel Strapping

    (1)Ribbon wood ID:200mm, 300mm, 406mm

         Size:thickness0.3-0.9mm

         width:12.7mm, 16mm, 19mm, 25mm, 32mm

         Coil weight:width:12.7mm,10-25kg/bundle; width:16mm, 19mm, 25mm, 25kg/bundle; width:32mm 50kg/bundle, ±1kg

    Also can produce it as per customer's request.

    (2)Oscillate wound ID:406mm

         Size:thickness:0.4-0.9mm width:12.7mm, 16mm, 19mm, 32mm Coil weight:width:12.7mm,16mm,19mm 45kg±2kg/bundle

         width:32mm 280-600kg/bundle

    Also can produce it as per customer's request.

    Surface and edge:

    (1)Blue-oiled steel packing strips

    (2)Blue-waxed steel packing strips

    (3)Painted-waxed steel packing strips

    (4)We can make the edge smoother of the steel packing strips

    Also can produce it as per customer's request.

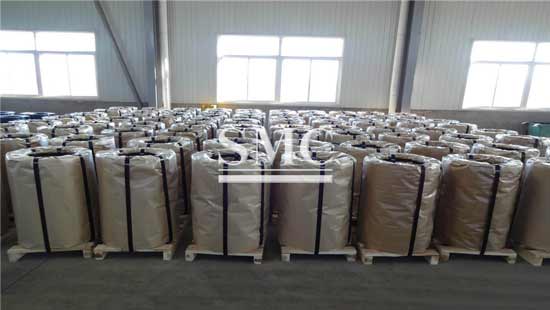

    Packaging of Steel Strapping:

    Shanghai Metal Corporation Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

    1)SMC Standard

    2)Customization

    Applications of  Steel Strapping:

    Steel Straaping USES ordinary carbon structural steel or high quality carbon structural steel, cold rolled, electric blue, paint. The product is suitable for wood, paper, glass, stone, steel strapping packing, welded pipe and other large objects.
