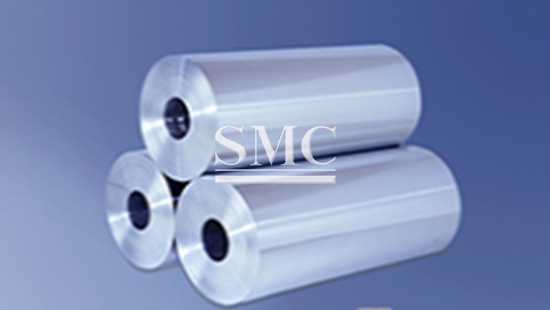

Aluminum Foil

Electrolytic Capacitor Aluminum Foil

    Temper:H18, O

    Thickness (mm): 0.050 ~ 0.200 deviation of ≤ ± 0.002

    Width (mm): 500 ~ 505 deviation ≤ ± 0.5

Shanghai Metal Corporation is a leading Electronic Aluminum Foil manufacturer and supplier.

As a key raw material for the production of aluminum electrolytic capacitors, aluminum foil together with the electrolyte accounts for the raw material cost of aluminum electrolytic capacitors. The aluminum foil for capacitors relates to an electrode foil and an electronic aluminum foil, which are different in processing depth, and the electronic aluminum foil is a raw material for electrode foil production. Its complete industrial chain is: fine aluminum (high-purity aluminum ingot) - electronic aluminum foil (light foil) - electrode foil (corrosion foil, chemical foil) - aluminum electrolytic capacitor - electronic machine (such as color TV, etc.).

If you want to know more about our Aluminum Foil products or Electronic Aluminum Foil price please feel free to contact us, we will reply you within 24 hours.

Electronic Aluminum Foil, also known as electronic aluminum foil, is generally produced from high-purity aluminum, which is divided into three types: medium-high voltage anode foil. Low voltage electrolytic capacitor anode foil (hard state) by DC or AC corrosion treatment, chemical treatment after being as low-voltage aluminum electrolytic capacitor foil use.

Technical information of Electronic Aluminum Foil:



Processing method of Electronic Aluminum Foil:

1. Production stage: melting casting - soaking - hot rolling - pre-annealing - cold rolling - intermediate annealing - cold rolling - thin rolling - slitting - performance testing - packaging

2. Corrosion energization stage: firstly increase the surface area of the cathode and anode aluminum foil by etching (Etching) of the raw material aluminum foil to form a corrosion foil; then, in the aspect of the anode aluminum foil, in the form of through formation, An oxide film (AL2O3) is formed on the surface as a dielectric material to form a foil.

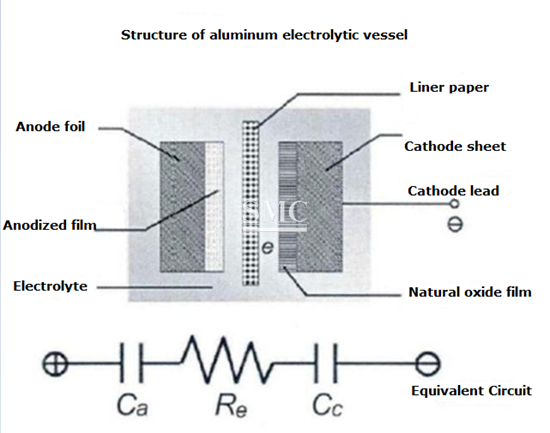

Structure information of Electronic Aluminum Foil:

Packing of Electronic Aluminum Foil:

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization

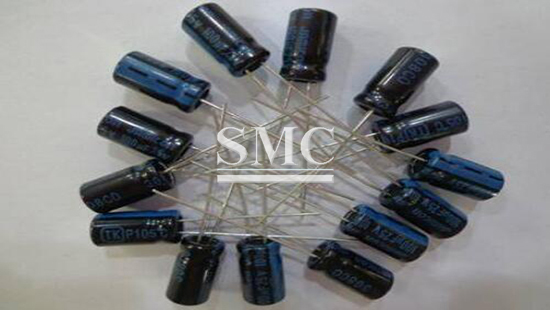

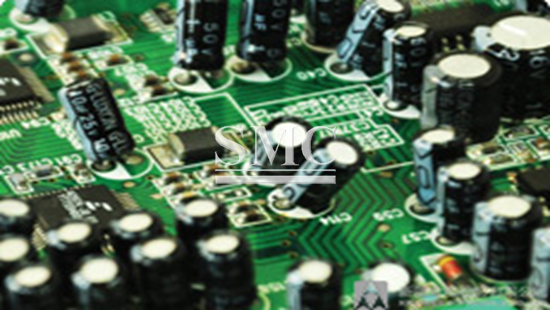

Application of Electronic Aluminum Foil:
