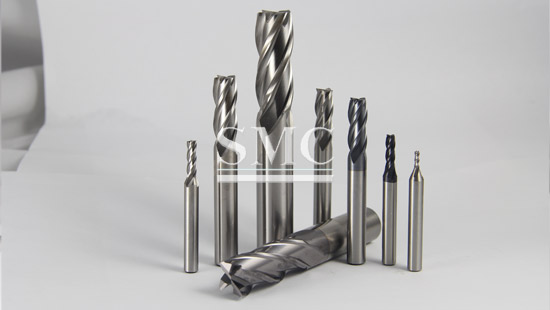

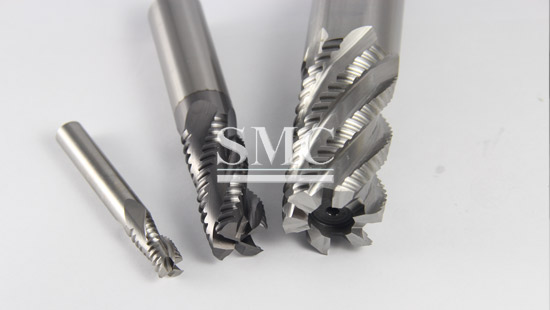

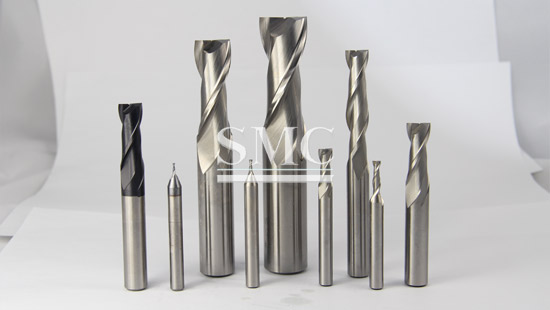

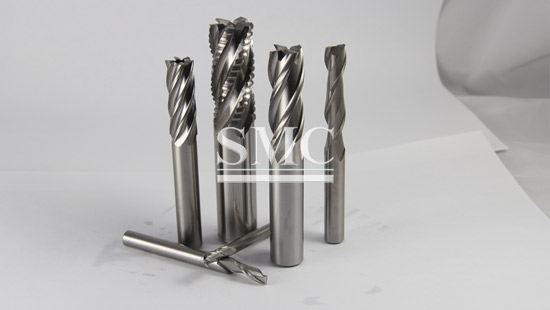

End Mill
Standard: DS/EN ISO 15641-2001
Grade: HSS 42 (HSS CO8)
Coating: TiN & TiCN coating are available on client’s request
Specification of End Mill:
1: Standard: DS/EN ISO 15641-2001
2: Grade: HSS 42 (HSS CO8)
3: Coating: TiN & TiCN coating are available on client’s request
4: Tolerance: According to DIN7160&7161
5: Other shank design on client’s request.
Technical information of End Mill:
|
Item |
Description |
Mill Diameter (mm) |
Shank Diameter (mm) |
Cutter Length (mm) |
Model |
|
SMC -2105 |
HSSCo8, 2 Flute 42°Helix Short Length |
D1.0-D32.0 |
6-32 |
3-53 |
|
|
SMC -2106 |
HSS-E,1Flute |
D3.0-D10.0 |
8 |
12-14 |
|
|
SMC -2107 |
HSSCo8, Multi Flute 50°Helix Short Length |
D2.0-D10.0 |
6-25 |
7-45 |
|
|
SMC -2108 |
HSSCo8, 4&6 Flute 50°Helix Short Length Ball Nose |
R3.0-R12.5 |
10-25 |
45-90 |
|
|
SMC -2109 |
HSSCo8, 4&6 Flute 50°Helix long Length Ball Nose |
R3.0-R12.5 |
6-25 |
13-45 |
|
|
SMC -2110 |
HSSCo8, 4&6 Flute short Length Rounghing-Coarse |
D6.0-D40.0 |
6-25 |
13-45 |
|
|
SMC -2111 |
HSSCo8, 4&6 Flute long Length Rounghing-Coarse |
D6.0-D40.0 |
6-32 |
24-125 |
|
|
SMC -2112 |
HSSCo8, 3 Flute 37°Helix Short Length Roughing |
D6.0-D30.0 |
6-16 |
13-32 |
|
|
SMC -2113 |
HSSCo8, 3 Flute 37°Helix long Length Roughing |
D10.0-D30.0 |
10-25 |
45-90 |
|
|
SMC- 2114 |
HSSCo8, Multi Flute Short Length Roughing-Fine |
D10.0-D30.0 |
6-32 |
13-65 |
|
|
SMC -2115 |
HSSCo8, Multi Flute Long Length Roughing-Fine |
D6.0-D40.0 |
6-40 |
24-125 |
|
|
SMC -2116 |
HSSCo8, Multi Flute Short Length Roughing-Finishing |
D6.0-D45.0 |
6-32 |
13-63 |
|
|
SMC -2117 |
HSSCo8, Multi Flute long Length Roughing-Finishing |
D6.0-D45.0 |
6-40 |
24-125 |
|
|
SMC -3119 |
HSSCo8, 2 Flute Length(Short, Regular, Long, Extra long) |
D1.0-D50.0 |
6-42 |
2.5-90 |
|
|
SMC -3120 |
HSSCo8, 4 Flute Length(Short, Regular, Long, Extra long)Center Cutting |
D1.0-D50.0 |
10-75 |
50-200 |
|
Packing of of End Mill:
Applications of End Mill:
1. Cutting aluminum
2. for CNC machine/CNC router bits
3. End Mill /solid Carbide End Mills With Straight Shank / Cnc Solid Tungsten
4. For Machining dies and molds
5. For pocketing copy milling, cam profiling, die sinking and slotting
Adventage of End Mill:
1. Any Shank design are achievable on client’s request
2. TiN-Coating & TiCN-Coating are available on any request.
3. Package can be designed as client’s request.
