Diameter: 76MM, 89MM, 40MM, 60MM, 68MM, 114MM

Thickness: 1.5MM-6MM

Length: 600-6000mm

Grade: Q235B/ Q345B/ N80

Type: N/FN/Y/FY/G/V/J/U/L & Customized

Product Detail | Technical Information | Packaging

Product Detail

Shanghai Metal Corporation is a leading GALVANIZED HELICAL PILE manufacturer and supplier.

Our products have passed CE & ISO:9001 quality management system and stand the end users’ ordeal. We devote ourselves to manufacture the high-quality products with competitive prices, we know the industries well, therefore from design to material selection, till manufacturing technique is up to the high standard, meanwhile our planning team and international team will ensure the punctual delivery.

If you want to know more about our GALVANIZED HELICAL PILE price please feel free to contact us, we will reply you within 24 hours.

Place of Origin: China

Brand Name: SMC

Model Number: SMC-1000

Wind Load: 60m/s

Snow Load: 1.4kn/m2

Warranty: 10 Years

Surface Treatment: Hot-dip Galvanized

Standard: GB

Keyword: Ground/Screw/Helix/Pile

Packing: Steel Pallet

Customization:Dimension, Logo, Packaging, Graphic, Yield strength, Tensile strength, Material grade

1. Easy installation

2. Cost effective

3. Functional in poor soil

4. Minimal impact on soil

5. Load bearing (can handle up to 500 tons of weight)

1. Power towers

2. Signal signs

3. House foundations

4. Street lamp foundations

5. Construction of billboards

6. Temporary venues

7. Warehouses

8. School buildings

9. Municipal equipment

10. Transportation equipment

Technical Information of Galvanized Helical Pile:

PRODUCTS SPECIFICATION SHEET
	TYPE N	TYPE FN	TYPE Y	TYPE FY	TYPE G
External Diameter (MM)	48/60/68/76/89/114 MM	48/60/68/76/89/114 MM	48/60/68/76/89/114 MM	48/60/68/76/89/114 MM	48/60/68/76/89/114/141/168/219 MM
Length (MM)	600-3500 MM	600-3500 MM	600-3500 MM	600-3500 MM	500-6000 MM
Flange Diameter (MM)	N/A	100-250 MM	N/A	100-250 MM	N/A
Flange Thickness (MM）	N/A	8 MM	N/A	8 MM	N/A
Material (GB)	Q235B	Q235B	Q235B	Q235B	Q235B / Q345B
Thickness (MM)	2.5-4 MM	2.5-4 MM	2.5-4 MM	2.5-4 MM	2.5-6 MM
Bolts & Nuts	3*M10/12/14/16	3*M10/12/14/16	3*M10/12/14/16	3*M10/12/14/16	3*M10/12/14/16
Surface Treatment	Galvanized 80μm Average	Galvanized 80μm Average	Galvanized 80μm Average	Galvanized 80μm Average	Galvanized 80μm Average
Drawing Force	10.7-28.5 KN	10.7-28.5 KN	20.5-28.5 KN	20.5-28.5 KN	N/A
Bearing Capacity	20-40 KN	20-40 KN	35-40 KN	35-40 KN	N/A
Horizontal Torque	4.5-10.5 KN	4.5-10.5 KN	8-10.5 KN	8-10.5 KN	N/A

PRODUCTS SPECIFICATION SHEET
	TYPE V	TYPE J	TYPE U	TYPE L
External Diameter (MM)	48/60/68/76/89/114 MM	48/60/68/76/89/114 MM	48/60/68/76 MM	48/60/68/76 MM
Length (MM)	600-3500 MM	600-3500 MM	600-1000 MM	400-1600 MM
Flange Diameter (MM)	N/A	N/A	N/A	N/A
Flange Thickness (MM）	N/A	N/A	N/A	N/A
Material (GB)	Q235B	Q235B	Q235B	Q235B
Thickness (MM)	2.5-4 MM	2.5-4 MM	1.5-2.5 MM	2-4 MM
Bolts & Nuts	3*M10/12/14/16	3*M10/12/14/16	71-111MM WIDE, 130 MM DEEP	3*M8/10/12/14
Surface Treatment	Galvanized 80μm Average	Galvanized 80μm Average	Galvanized 80μm Average	Galvanized 80μm Average
Drawing Force	10.7-28.5 KN	10.7-28.5 KN	N/A	5-10.5 KN
Bearing Capacity	20-40 KN	20-40 KN	N/A	8-20 KN
Horizontal Torque	4.5-10.5 KN	4.5-10.5 KN	N/A	4-6.5 KN

Packaging of Galvanized Helical Pile:

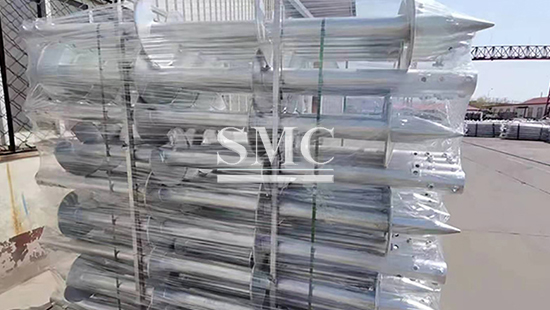

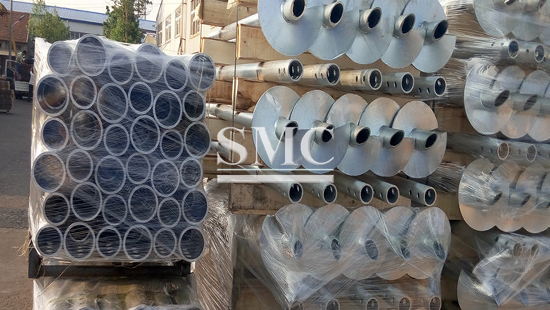

Standard export seaworthy package, suit for all kinds of transport, or as required. Water-proof Paper + Edge protection + Wooden Pallets
