Material: Carbon Steel

Surface Finish: HDG,A2,A4.

Size: M6, M8, M10, M12, M16, etc.

Product Detail | Technical Information | Packaging

Product Detail

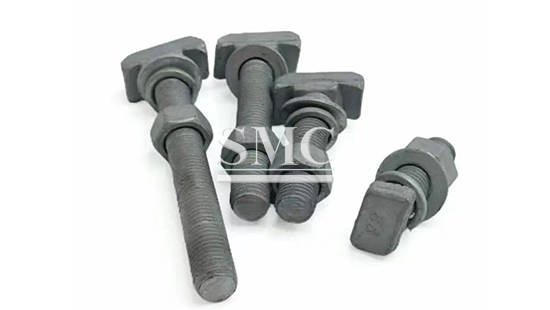

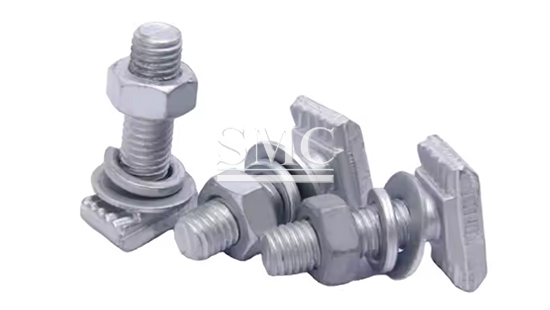

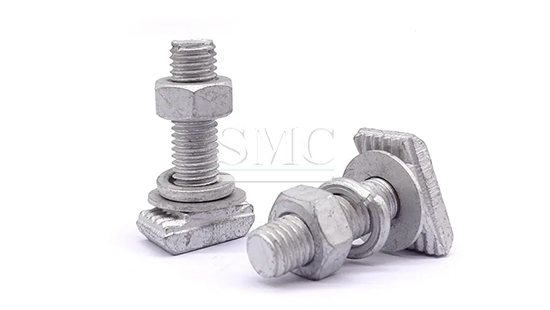

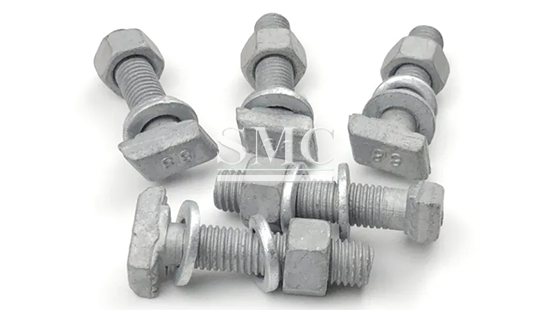

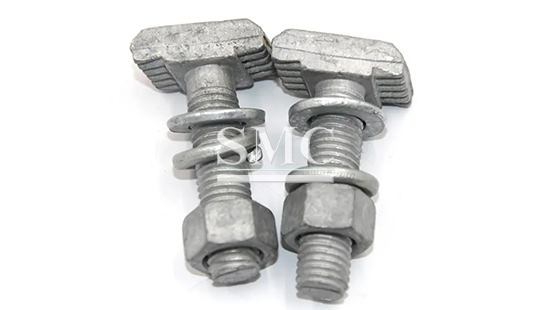

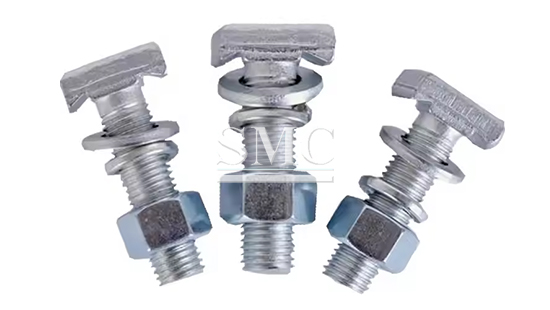

Shanghai Metal Corporation is a professional manufacturer and supplier of Halfen Channel T Bolt with high quality and reasonable price.

Hafen Channel T bolts are special bolts used in conjunction with Hafen Channels, typically T-head bolts (whose head shape matches the internal cross-section of the channel). Hafen Channels and Hafen Channel T bolts are standardized pre-embedded fixing components commonly used in construction engineering, rail transit and other fields, mainly used to achieve the connection, support and fixation between components. Through the coordination, the connection requirements of "fast installation, flexible adjustment, safety and reliability" can be achieved in engineering. They are indispensable standardized components in modern construction and infrastructure development.

Concrete screw anchor eliminate the need for an anchor when used in light and medium duty applications. When used in concrete, concrete screws can be removed and re-driven into the same hole.

If you want to know more about Halfen Channel T Bolt price please feel free to contact us, we will reply you within 24 hours.

1. Standard: ASTM, DIN, GB/T, ISO
2. Size: M6 - M30
3. Thread: Metric Thread.
4. Grade: 8.8, 9.8, 10.8.
5. Surface treatment: HDG, A2, A4.

1. Pre-embedded installation
2. High strength and durability
3. Standardized components
4. Adjustability

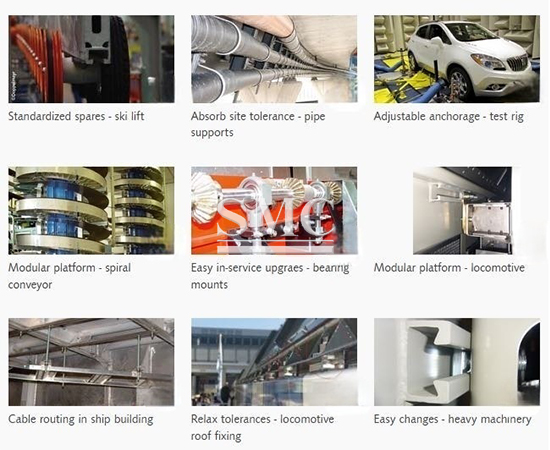

1. Standardized spares - ski lift
2. Absorb site tolerance -pipesupports
3. Adjustable anchorage -test rig;
4. Cable routing in ship building
5. Easy changes -heavy machinery

Technical Information of Halfen Channel T Bolt:

Concrete screw anchor provide self-threading action and maximum holding power for anchoring the following to masonry: electrical junction boxes, wooden beams, plywood, exterior insulation, metal flashing, expansion joints, duct straps, gutters, fixtures, and thresholds. These screws are available in two different head styles: flat head and hex head. Flat head screws have a phillips drive style, while the hex head can be a slotted or unslotted indented hex head style.

technical

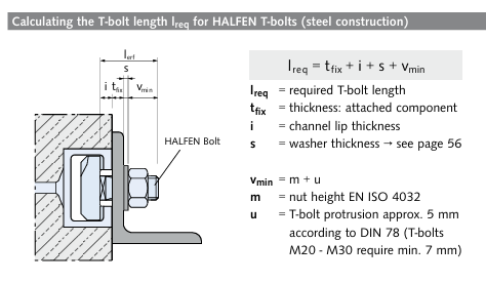

Dimensions Vmn
T-bolt diameter	Vmin=m+u [mm]	[in]
M6	11.0	0.43
M8	12.5	0.49
M10	14.5	0.57
M12	17.0	0.70
M16	20.5	0.81
M20	26.0	1.02
M24	29.0	1.14
M27	31.5	1.24
M30	33.5	1.32

Thickness channel lip i
Profile	28/15	29/20	38/17	36/36	38/23	40/22	40/25	41/27	49/30	50/30	50/40	52/34	53/34	55/42	64/44	72/48
i[mm]	2.25	5.0	3.0	2.5	5.5	6.0	5.6	7.0	7.39	7.85	7.0	10.5	7.5	12.9	10.0	15.5
i [in]	0.09	0.20	0.12	0.10	0.22	0.24	0.22	0.28	0.29	0.31	0.28	0.41	0.30	0.51	0.39	0.61

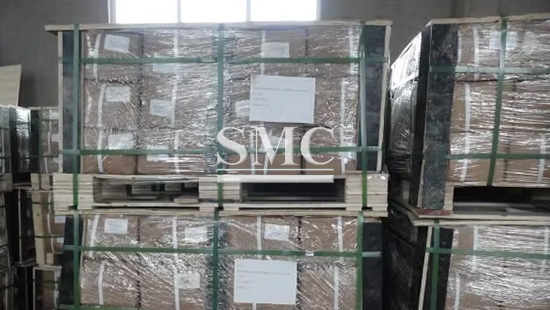

Packaging of Halfen Channel T Bolt:

Shanghai Metal Corporation Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)SMC Standard

2)Customization

packaging
