Hastelloy Series

Hastelloy C-22

    Equivalent designations: Hastelloy C-22, UNS N06022



    Application: Chemical Industry

Product Detail
Specification:
Equivalent designations: Hastelloy C-22, UNS N06022
Place of Origin: Shanghai, China (Mainland)
Application: Chemical Industry

Product list:

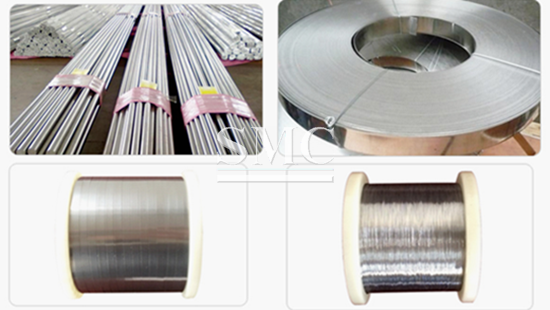

Specification:

Wire: 0.01-10mm
Strip: 0.05*5.0-5.0*250mm
Bar: φ4-50mm;Length 2000-5000mm

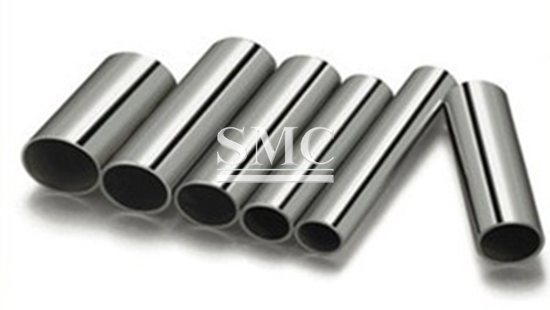

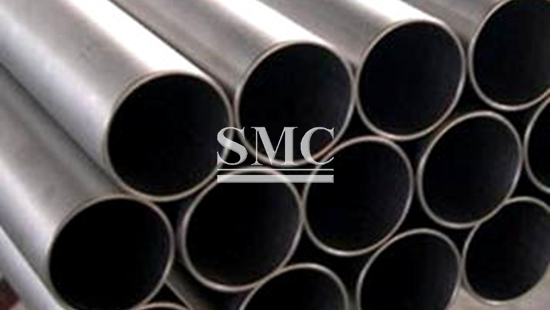

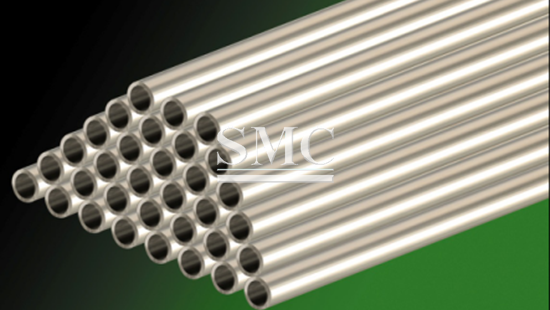

Pipe: φ6-273mm;δ1-30mm;Length 1000-8000mm

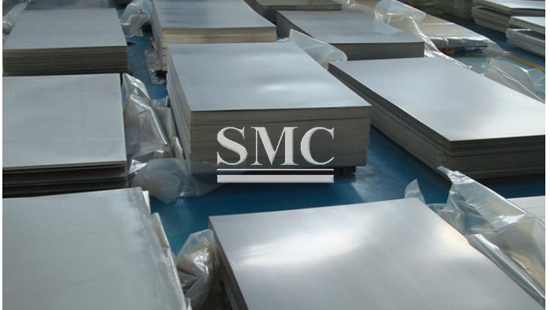

Sheet: δ 0.8-36mm;Width 650-2000mm;Length 800-4500mm


Model Number: Hastelloy C-22

Brand Name: SMC
Shape: Forging

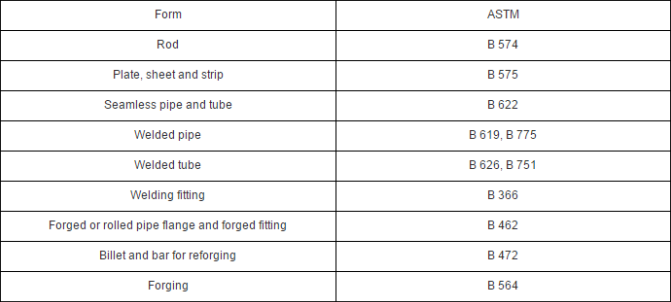

Standard: ASTM ASME
Certification: ISO 9001:2008
Color: Nickel Nature
MOQ: 500kg

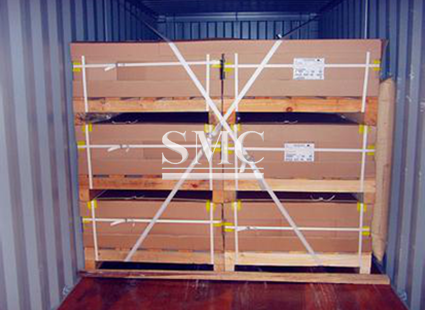

Packing: Common sea freight wooden case package/ Also can be customized
Payment: L/C,T/T

Delivery: Usually sample lead time is 7 days after payment has been confirmed.

Hastelloy C-22 is a versatile Ni-Cr-Mo-W alloy with better comprehensive corrosion resistance performance than other Ni-Cr-Mo alloys, including Hastelloy C-276, Hastelloy C-4 and Inconel 625. Hastelloy C-22 has outstanding resistance to pitting, crevice corrosion and stress corrosion cracking. It has excellent resistance to oxidizing aqueous media including wet chlorine and mixtures containing nitric acid or oxidizing acids with chloride ions. It also offers optimum resistance to environments where reducing and oxidizing conditions are encountered in process streams. So it can be used where “upset” conditions are likely to occur or in multi-purpose plants. Hastelloy C-22 has exceptional resistance to a wide variety of chemical process environments, including strong oxidizers such as ferric and cupric chlorides, chlorine, hot contaminated solutions (organic and inorganic), formic and acetic acids, acetic anhydride, and seawater and brine solutions. It resists the formation of grain boundary precipitates in the weld heat-affected zone, thus making it suitable for most chemical process applications in the as-welded condition.



1. Chemical composition

2. Physical properties

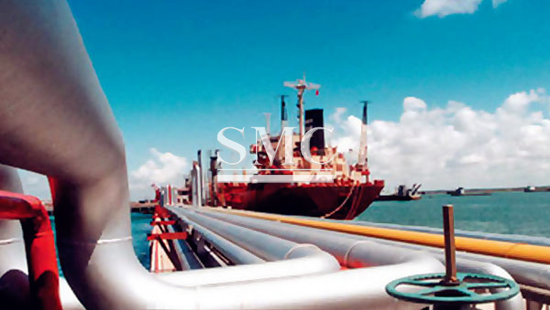

Application:

Chemical processing involving acetic acid, acetic anhydride and complex acid mixture; pickling operations; cellophane manufacture; chlorination systems; electro-galvanizing rolls, expansion bellows; flue gas scrubber systems; geothermal wells; HF furnace scrubbers; incineration scrubbers; nuclear fuel reprocessing; pesticide production; phosphoric acid production; heat exchangers; selective leaching systems; sulfur dioxide cooling towers; sulphonation systems; and weld overlay.
