Grade: SGCC, DX51D, S250GD, S550GD etc

Thickness: 0.6mm ~ 1.6mm

Width: 600mm ~ 1575mm

Product Detail | Technical Information | Packaging

Product Detail

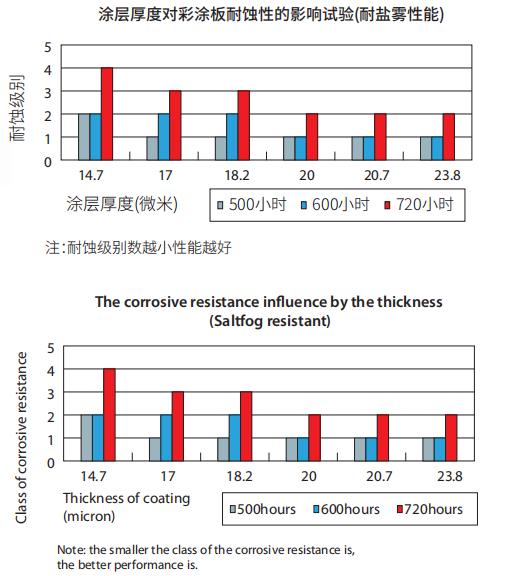

The choice of the type of base metal and the weight of coating should be determined in accordance with the usage, environmental corrosion, service life and durability. In the areas of severe industrial or humid coastal area, the prepainted coil with zinc coating weight more than 180 g/m^2 should be used. In the humid coastal area, the higher durability prepainted coil such as PVDF, HDP and duraking series should be adopted; in the seriously polluted industrial area, not only the corrosion resistance but also the pollution resistance should be taken into account.

1. Standard: ASTM/JIS/GBT/EN etc

2. Steel Grade: SGCC, DX51D, S250GD, S550GD etc

3. Thickness: 0.6mm ~ 1.6mm

4. Width: 600mm ~ 1575mm

5. Top paint/back paint: 5+15μm/7-9μm or 5+20μm/10-12μm or as per client’s needs

6. Zinc coating: Z180 ~ Z600

7. Color: Any color as per client’s needs

8. Coil ID: 508mm/610mm

9. Coil weight: as per client’s needs

10. Pack: vertical or horizontal package

Widely used in severe environment

1. Humid Coastal Building

2. Oil Tank

3. Roofing

Steel Grade and Application:

Base metal of Prepainted steel					Application
Hot-dip Zinc	Hot-dip Zinc-Fe alloy	Hot-dip Al-Zinc alloy	Hot-dip Z-Al alloy	Eletro-galvanized	Application
TDC51D+Z	TDC51D+ZF	TDC51D+AZ	TDC51D+ZA	TDC01+ZE	CQ
TDC52D+Z	TDC52D+ZF	TDC52D+AZ	TDC52D+ZA	TDC03+ZE	DQ
TDC53D+Z	TDC53D+ZF	TDC53D+AZ	TDC53D+ZA	TDC04+ZE	DDQ
TDC54D+Z	TDC54D+ZF	TDC54D+AZ	TDC54D+ZA	/	EDDQ
TS250GD+Z	TS250GD+ZF	TS250GD+AZ	TS250GD+ZA	/	Structure
TS280GD+Z	TS280GD+ZF	TS280GD+AZ	TS280GD+ZA	/	Structure
/	/	TS300GD+AZ	/	/	Structure
TS320GD+Z	TS320GD+ZF	TS320GD+AZ	TS320GD+ZA	/	Structure
TS350GD+Z	TS350GD+ZF	TS350GD+AZ	TS350GD+ZA	/	Structure
TS550GD+Z	TS550GD+ZF	TS550GD+AZ	TS550GD+ZA	/	Structure

Mechanical property:

Steel Grade	Y.S/MPA	T.S/MPA	EL./ ≥%
TDC51D+Z/ZM/AZ	240 ~ 380	270 ~ 500	22
TDC52D+Z/ZM/AZ	140 ~ 300	270 ~ 420	26
TDC53D+Z/ZM/AZ	140 ~ 260	270 ~ 380	30
TDC54D+Z/ZM/AZ	120 ~ 220	260 ~ 350	36

Packing of High Durability Prepainted Galvanized Steel Sheet:

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
