Material: Carbon Steel

Surface Finish: Plain,Black,HDG,etc.

Size: M8-M72.

Product Detail | Technical Information | Packaging

Product Detail

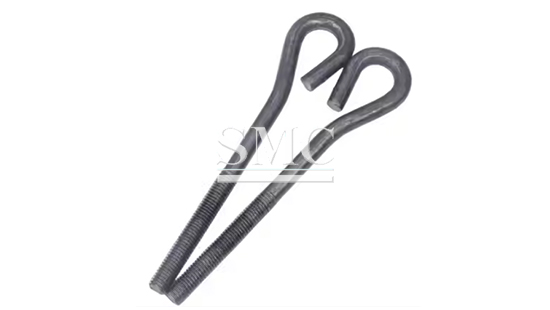

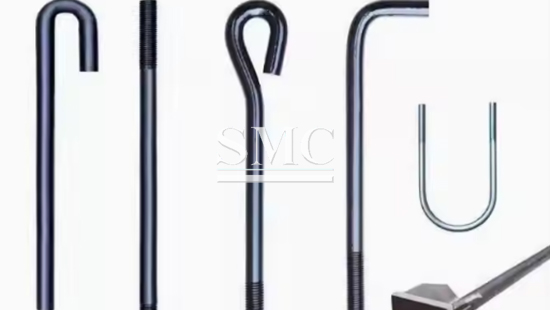

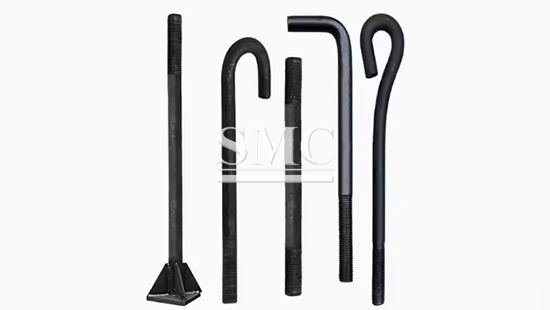

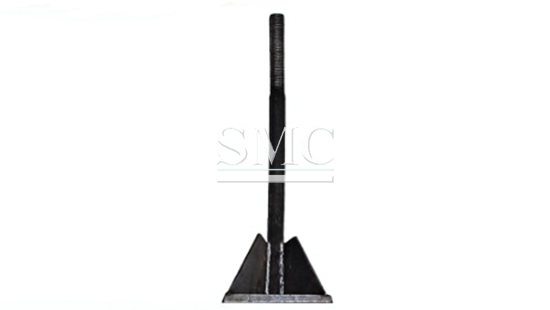

Shanghai Metal Corporation is a professional manufacturer and supplier of L Type J Type Foundation Anchor Bolt with high quality and reasonable price.

L Type J Type Foundation Anchor Bolt serve as key nodes connecting equipment to foundations through the "anchoring-force transmission" mechanism. The core of their design is to utilize the mechanical properties of concrete for reliable fixation, widely applied in industries, construction, energy, and other fields to ensure the safe and stable operation of various facilities. Depending on different load requirements and scenarios, the types of anchor bolts (such as fixed, movable, expansion anchor types, etc.) and their specifications vary, requiring the selection of appropriate design schemes based on engineering practices.

Concrete screw anchor eliminate the need for an anchor when used in light and medium duty applications. When used in concrete, concrete screws can be removed and re-driven into the same hole.

If you want to know more about L Type J Type Foundation Anchor Bolt price please feel free to contact us, we will reply you within 24 hours.

1. Standard: ASTM, DIN, ISO, GB
2. Size: M8 - M72.
3. Thread: Metric Thread, Imperial Thread, Trapezoidal Thread.
4. Grade: 8.8, 10.9, 12.9.
5. Surface treatment: Plain,Black,HDG,etc.

1. High strength and durability
2. Standardized components
3. Preload and stability
4. Uplift resistance and shear resistance
5. Adjustability

1. Fixation of industrial equipmen
2. Architecture and Structural Engineering
3. Power and energy facilities
4. Municipal and transportation engineering
5. Special scene application

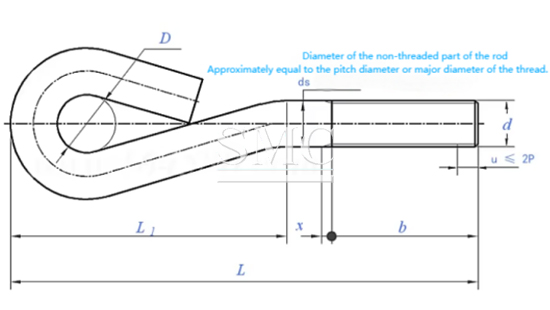

Technical Information of L Type J Type Foundation Anchor Bolt:

The technical system of foundation anchor bolts is centered around "material structure load process", which achieves reliable connection between equipment and foundation through high-strength material matching, precise anchoring calculation, standardized installation and testing. When designing, it is necessary to combine GB and other standards, comprehensively consider factors such as load type, concrete strength, environmental corrosion, etc., to ensure accurate matching between technical parameters and engineering requirements.

螺纹尺寸 d		M8	M10	M12	M16	M20	M24	M30	M36	M42	M48	M56	M64	M72
PITCH	螺距	1.25	1.5	1.75	2	2.5	3	3.5	4	4.5	5	5.5	6	6
Deviation value	偏差值(+2P,0)	31	36	40	50	58	68	80	94	106	120	140	160	180
L₁		46	65	82	93	127	139	192	244	261	302	343	385	430
D		10	15	20	20	30	30	45	60	60	70	80	90	100
Maximum value	最大值	3.2	3.8	4.3	5	6.3	7.5	9	10	11	12.5	14	15	15

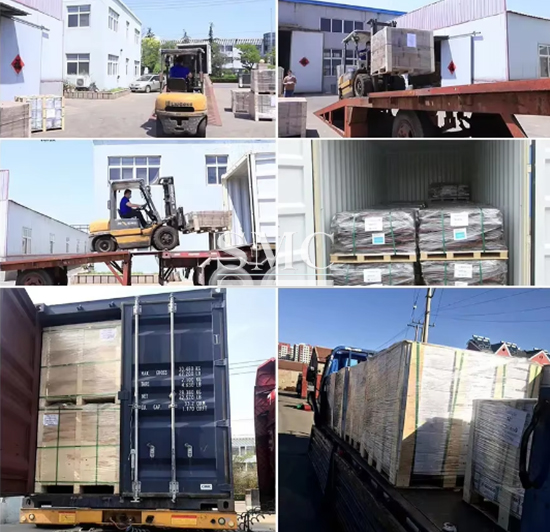

Packaging of L Type J Type Foundation Anchor Bolt:

Shanghai Metal Corporation Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)SMC Standard

2)Customization

packing
