Thickness: 0.20mm - 140mm


    Width: 27mm - 1400mm

Specifications of Lead Alloy Sheet:
1) Thickness: 0.20mm - 140mm
2) Width: 27mm - 1400mm
3) Standard: ASTM B 29, federal specification QQ-L-171, German standard DIN 1719, British specification BS 334,

 Canadian Standard CSA-HP2, and Australian Standard 1812

4) Chemical composition:

Pb: max. 99.999%
Sb: 0.00-4%
Sn: 0.00 to 6% see solder foils

(Further ally elements can be customized according to requirements.)


Characteristics of Lead Alloy Sheet:
1) Very soft: Without support, it can sag and become distorted
2) Dense
3) Durable
4) Malleable
5) Low melting point
6) Long life-span (in milder climates, lead roofs have been known to last 200-300 years)
7) Generally corrosion-resistant - has little to no reaction with most compounds and solutions
8) Resistant to corrosion by most acids including chromic,sulfuric, sulfurous and phosphoric acids
9) Corrosive to alkalis (such as lime mortar, portland cement and uncured concrete), tannic acid found in wood,

and radiation
10) Corrosive to hydrochloric, hydrofluoric, acetic, formic and nitric acids

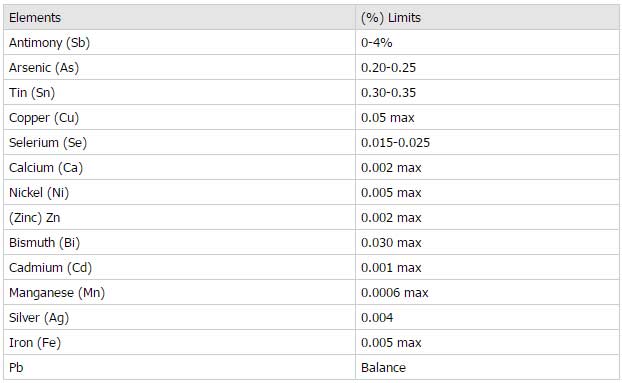

Chemical Composition of Lead  Alloy Sheet:

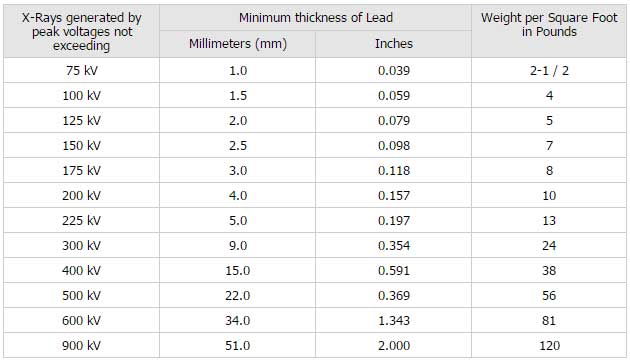

Recommended Thickness of Lead Shielding of X-Ray Rooms:

Packaging of Lead Alloy Sheet/Roll

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization

Applications of Lead Alloy Sheet/Roll:

1) X-ray shielding in the medical and dental field

2) Lead shielding for personal protection

3) Nuclear shielding in the power generation industry

4) Nuclear shielding for research in industry and university

5) Radiation shielding for the military

6) X-ray shielding to protect workers at security x-ray machines

7) Sheet roofing

8) Decorative spandrels

9) Gutters, leader heads and downspouts

10) Cast decorative features and sculpture

11) Cupolas, spires and mullions

12) Sheathing for cables

13) Sheet lead partitions (good for noise reduction)

14) Pads for vibrating machinery

15) To waterproof ironwork where the iron is fitted into stone

16) Ballast, gaskets, type metal, terneplate and foil

17) Building construction materials (such as sheet, pipe, solder, and wool for caulking)

18) Materials used in marine power

19) Manufacture of batteries , paint, shells, welding materials, bearing materials, caulking materials, etc.

20) Lead-based paint: Red lead is typically used as a corrosion inhibitor for use on iron. White lead is used more frequently in commercial applications. White lead is not intended for use on iron

21) Its use will increase corrosion, especially on wrought iron
