Grade: Ni80Cr20 / Ni70Cr30 / Ni60Cr15 / Ni35Cr20 / Ni30Cr20

Diameter: 8mm-20mm or customized

Length: 50mm-1000mm or customized

Shape: Round / Square Bar

Product Detail | Technical Information | Packaging

Product Detail

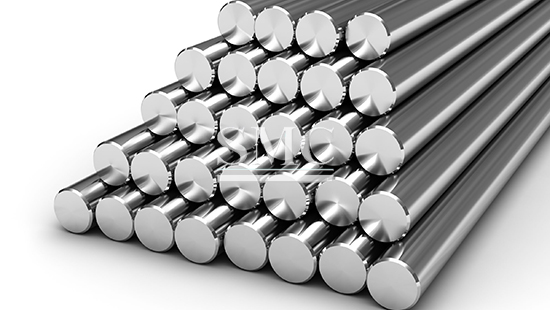

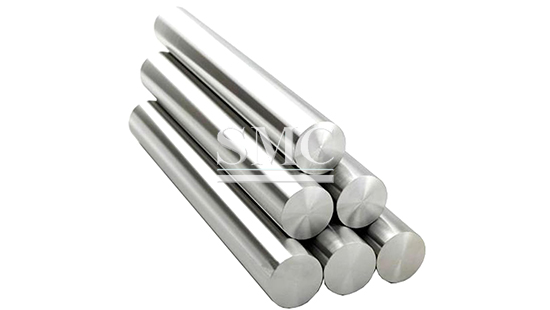

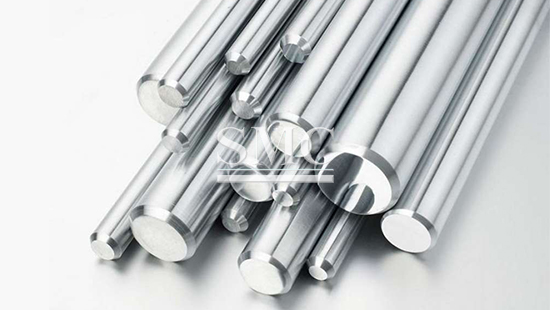

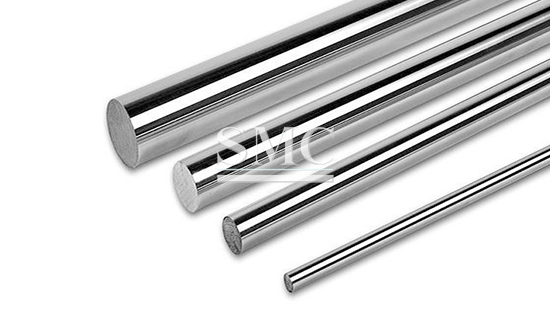

Shanghai Metal Corporation is a leading Nickel Chromium Alloy Bar/Rod manufacturer and supplier.

Our Nickel Chromium Alloy Bar/Rod is one of the most widely used electric heating materials. This type of alloy generally has characteristics such as high resistivity, good oxidation resistance, high-temperature strength, and good cold forming performance. It's Working Temperature is up to over 1100 °C.It has a high resistance to oxidation, especially with frequent switching operations or broad temperature variations.

The resistance to atmospheric corrosion at 20 °C is high up to the upper operating temperature the resistance to air and other oxygen-containing gases as well as to nitrogen-containing low-oxygen gases is high as well, and the resistance to carbonizing is high. So it is widely application for industrial electric furnaces, enamelling furnaces, household appliances, night-current storage space-heaters and various types of electric heating elements.

If you want to know more about our Nickel Chromium products or Nickel Chromium Alloy Bar/Rod / Nichrome Bar/Rod price, please feel free to contact us, we will reply you within 24 hours.

Grade: Ni80Cr20 / Ni70Cr30 / Ni60Cr15 / Ni35Cr20 / Ni30Cr20
Diameter：8mm-20mm or customized
Length：50mm-1000mm or customized
Max Working Temperature(ºC):1200 /1250 /1150 /1100 /1100
Elongation: > 20%
Shape: Round / Square Bar

1. High resistivity
2. Good oxidation resistance
3. High-temperature strength
4. Good cold forming performance
5. Corrosion resistance
6. High stability
7. Excellent coilforming ability
8. Uniform and beautiful surface condition without spot

1. Heating Element
2. 2Resistor
3. Household Components
4. Industrial Furnaces

Chemical composition, %

Grade	C	P	S	Mn	Si	Cr	Ni	Al	Fe
Cr20Ni80	≤0.03	≤0.02	≤0.015	≤0.60	0.75~1.60	20.0~23.0	balance	≤0.05	≤1.0
Cr15Ni60	≤0.08	≤0.02	≤0.015	≤0.60	0.75~1.60	15.0~18.0	55.0~61.0	≤0.05	balance
Cr35Ni20	≤0.08	≤0.02	≤0.015	≤1.00	1.0~3.0	18.0~21.0	34.0~37.0		balance
Cr30Ni70	≤0.05	≤0.02	≤0.015	≤0.60	0.75~1.60	28.0~31.0	balance	≤0.05	≤1.0
Cr20Ni30	≤0.08	≤0.02	≤0.015	≤1.00	1.0~2.0	18.0~21.0	30.0~34.0		balance

mechanical and physical properties of alloys

Grade	Cr20Ni80	Cr20Ni80	Cr20Ni80	Cr30Ni70	Cr20Ni30
Density（g/cm³)	8.4	8.2	7.9	7.9	8.2
Resistivity(Ωmm2/m)	1.09	1.12	1.04	1.04	1.18
Thermal Conductivity(Wmk)	15	13	13	13	14
Max temp(℃)	1200	1150	1100	1100	1250
Melting temp(℃)	1400	1390	1390	1390	1380
Magnetic	No	No	No	No	No
Specific electrica(Mpa)	420	370	340	340	340
Tensile strength(Map)	650	600	600	650	600
Elongation(%)	20	20	20	20	20

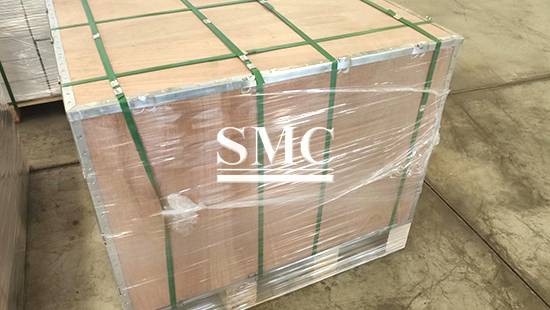

Packing of Nichrome Bar/Rod：

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

We specializes in the research and manufacture of special alloy materials, and we can provide them in the form of wires, bars, strip and plates.

1) Shanghai Metal Standard

2) Customization
