Material: Carbon Steel, Alloy Steel.

Finish: HDG, Electrophoretic Coating

Size: Suitable for pre-embedded lifting points with diameter Φ8-Φ30mm

Product Detail | Technical Information | Packaging

Product Detail1

Shanghai Metal Corporation is a professional manufacturer and supplier of Precast Concrete Lifting Clutches with high quality and reasonable price.

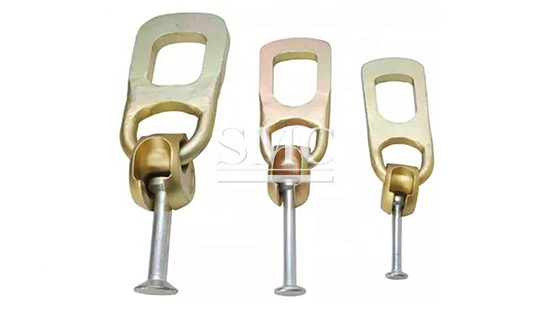

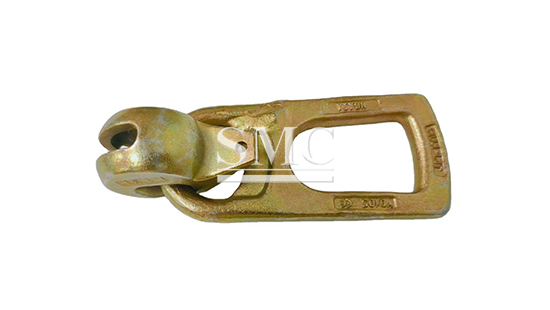

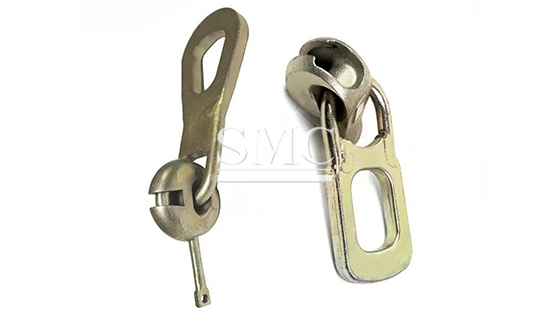

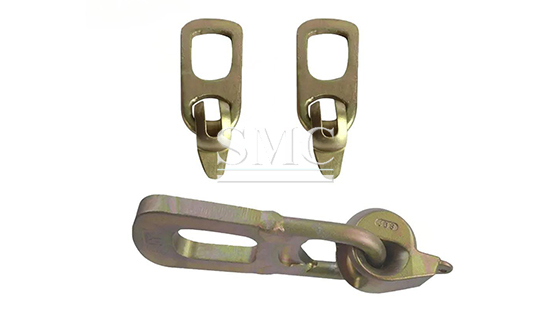

Precast Concrete Lifting Clutches are special hoisting accessories used in conjunction with precast concrete components, typically self-locking clasp-structured devices (whose clamping part matches the structure of pre-embedded lifting pins/lugs on precast components).

Precast Concrete Lifting Clutches are standardized hoisting auxiliary components commonly used in prefabricated building, bridge engineering, curtain wall installation and other fields, mainly used to achieve the safe locking, stable hoisting and efficient transfer between precast components and hoisting equipment. Through their coordination with pre-embedded lifting points, the hoisting requirements of "quick clamping, anti-slip safety, flexible adaptation" can be achieved in engineering.

If you want to know more about our Precast Concrete Lifting Clutches price, please feel free to contact us, we will reply you within 24 hours.

1. Standard: EN, ISO, ANSI
2. Size: Suitable for pre-embedded lifting points with diameter Φ8-Φ30mm
3. Load Capacity: 1.3T, 2.5T, 5.0T, 10T, 20T, 32T
4. Surface Treatment: HDG, Electrophoretic Coating
5. Adapted Lifting Point Type: Pre-embedded Lifting Pin, Pre-embedded Lifting Lug
6. Structure Type: Self-locking Type, Duckbill Type

1. Pre-embedded installation
2. High strength and durability
3. Standardized components
4. Adjustability

1. Standardized Spare Parts
2. On-site Tolerance Absorption
3. Adjustable Anchorage
4. Complex Scenario Adaptation
5. Easy Switching

Technical Information of Precast Concrete Lifting Clutches:

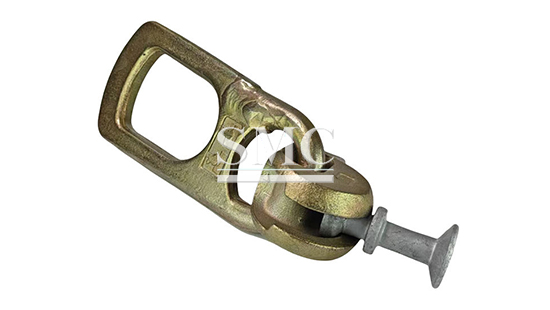

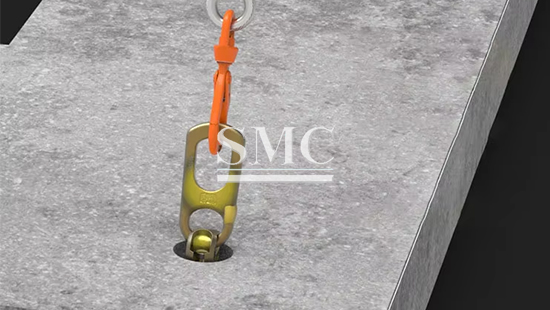

Precast Concrete Lifting Clutches can be directly snapped into the pre-embedded lifting pins/lugs of precast concrete components. During installation, it can automatically locate and lock. It is usually used in combination with the slings of hoisting equipment and belongs to the self-locking hoisting accessory.

The company has been operating precast component hoisting accessories for many years, with rich experience and reliable quality. It is equipped with a professional testing organization and provides relevant testing certificates. At the same time, it can customize suitable lifting clutches according to customer needs and component drawings to meet the hoisting requirements of different precast components. Customers are welcome to consult and purchase.

technical

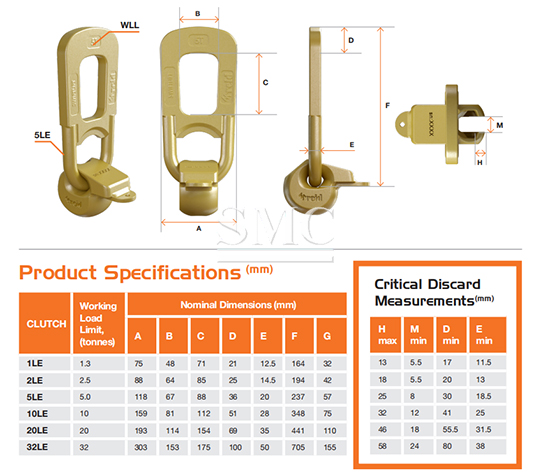

Product Specifications（mm）
CLUTCH	Working Load Limit (tonnes)	NominalDimensions（mm
CLUTCH	Working Load Limit (tonnes)	A	B	C	D	E	F	G
1LE	1.3	75	48	71	21	12.5	164	32
2LE	2.5	88	64	85	25	14.5	194	42
5LE	5	118	67	88	36	20	237	57
10LE	10	159	81	112	51	28	348	75
20LE	20	193	114	154	69	35	441	110
32LE	32	303	153	175	100	50	705	155

Critical Discard Measurements（mm）
CLUTCH	H max	M min	D min	E min
1LE	13	5.5	17	11.5
2LE	18	5.5	20	13
5LE	25	8	30	18.5
10LE	32	12	41	25
20LE	46	18	55.5	31.5
32LE	58	24	80	38

Packaging of Precast Concrete Lifting Clutches:

Shanghai Metal Corporation Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)SMC Standard

2)Customization

packaging
