Stainless Steel Tube

Stainless Steel Fin Tube

    O. D.: 6 mm to 219 mm


    W. T.: 0.5 mm to 25 mm


    Length: Max. 20 meters

Specifications of Stainless Steel Fin Tube:


1. Grade: TP304, TP304L, TP304H, TP310, TP310S, TP310H, TP316, TP316L, TP316H, TP316Ti, TP317,

TP317L, TP321, TP321H, TP347, TP347H, UNS N08904/904L; S31803, S32205/SAF2205, S32304,

S32750/SAF2507; 1.4301, 1.4306, 1.4401, 1.4404, 1.4541, 1.4571, 1.4539, 1.4462,1.4410, etc.

2. Standard: ASTM A312/213/269, ASTM A789/A790, ASTM B677, DIN 17456, DIN 17458, EN10216-5,

ISO 1127, etc.
3. Surface finish: anneal/pickling/polished
4. Process method: cold drawn/cold rolled
5. Size:
O. D.: 6 mm to 219 mm
W. T.: 0.5 mm to 25 mm
Length: Max. 20 meters
7. Application: Boiler economizer Power plant waste heat boiler Petrochemical engineering and various heat exchangers

8. Qualifications: ISO 9001:2008, PED by English Lloyd's Register, DNV, ASME


Specifications of U-Bend Stainless Steel Fin Tubes:


1. Initial Length:Maximum lengths of 27000mm can be supplied on request
2. Bending radius:Maximum 1000 mm
3. Heat treatment of the bend:
    U-bends with a bending radius up to maximum of 1000mm can be heat treated on request

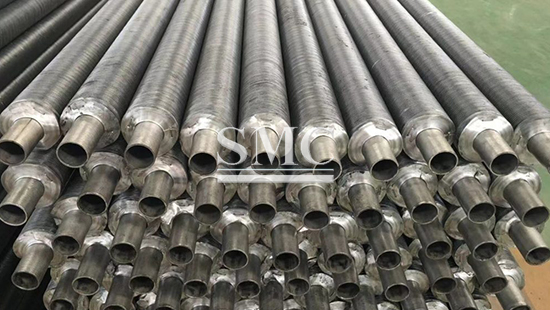

Production line





Grades of Stainless Steel Fin Tube:


304/304L/304H(1.4301/1.4306/1.4948); 316/316L(1.4401/1.4404); 316Ti(1.4571); 321(1.4541); 309S(1.4833); 310S(1.4845); 317L(1.4438); 321H(1.4878); 347H(1.4550); 2205(1.4462); S31803, 2507



Standards of Stainless Steel Fin Tube:


1.ASME SA213/SA213M

2.ASME SA688/SA688M

3.ASME SA789 / SA789M

4.ASME SA249/SA249M

5.GB13296-91



Standards of U-Bend Stainless Steel FinTube:


1. ASTM A688/A688M-08

2. ASTM A803/A803M

3. ASTM A556/A556M, ASME SA-556

4. ASME SA-688



Manufacturing Process of Stainless Steel Pipes/Tubes:

The process commences with the formation of welded mother tube on the tube mill from imported and tested prime quality stainless steel strips. The latest TIG multi electrode welding technique is employed for superior weld quality and 100% Fusion, with argon purging, No filler metal added.





Packaging of Stainless Steel Tubes/Pipes:


Please don’t worry that our products are packed, stored, transported according to the international regulation. We do care about the quality of our products; even some little details are paid attention to.

We wrap the stainless steel products with anti-rust paper and steel rings to prevent damage. Identification labels are tagged according to standard specification or customer's instructions. Special packing is available as per customer's requirement.

Plus, our storage racks are made of wood. Other kinds of metals are settled in other places, far from the stainless steel. Any unwanted chemical reaction can be prevented.



Manufacturing Process of Stainless Steel Pipes/Tubes:


The process commences with the formation of welded mother tube on the tube mill from imported and tested prime quality stainless steel strips. The latest TIG multi electrode welding technique is employed for superior weld quality and 100% Fusion, with argon purging, No filler metal added.



FAQ

Q: Can you do polished finish for the tubes/pipes?

A: Yes, for welded tubes/pipes, we can do mirror polishing, 600# polishing, 500# polishing, 320# polishing, 240# polishing and so on, brushed finish is also available. For seamless tubes/pipes, normally the surface is pickled finish, while brushed finish is also doable.


Q: What’s your standard package?

A: Our standard package is waterproof plastic bags with wraps. For advanced packing, we can provide round paper tube for each tube, and wooden/metal case for exterior packing.


Q: Where’s your main market?

A: South America, Mid-east, South-east Asia, Europe and so on.


Q: Do you also have the accessories for the tubes?

A: Yes we can provide the accessories too.


Q: What length is your standard length? Can I have the tubes/pipes cut into the length I want?



A: Our standard length is 3meter, 4meter, 5meter, 6meter. If you length is less than 3meter, we will have to run an additional processing for cutting which will bring some more costs. The minimum length is 500mm. For seamless tubes, we can make maximum to 12, 13meters.
