Material: SS304, SS316L, SUS310S, FeCrAl, Nickel, Inconel

Filtration: 1-100um

Thickness: 0.2-1.5mm

Product Detail | Technical Information | Packaging

Product Detail

Shanghai Metal Corporation is a leading sintered metal fibre felt manufacturer and supplier.

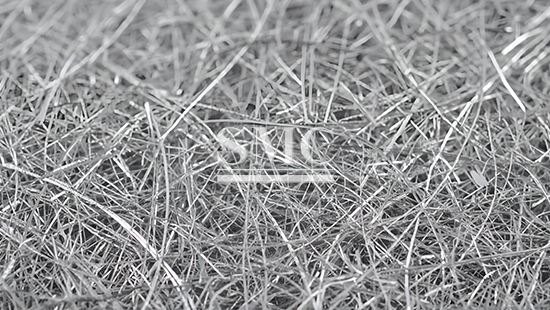

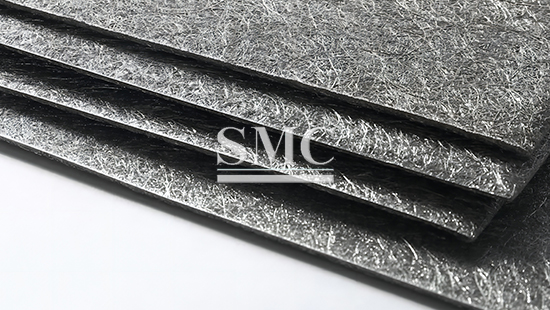

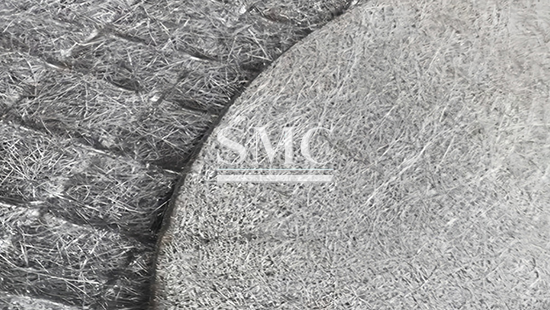

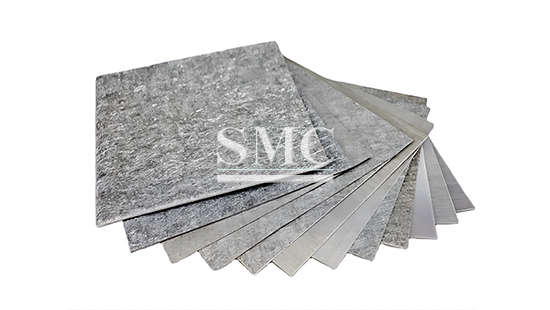

Stainless steel sintered felt is also called metal sintered felt, It is made of extremely fine stainless steel metal fiber (accurate to micron in diameter) created by non-woven layering and superimposed by high temperature sintering. The sintered felt is formed by different orifice gradients, which can be controlled to obtain high filtering precision. It has the characteristics of three-dimensional network, porous structure, high porosity, large surface area and even pore size distribution, which can continuously maintain the filtering function.

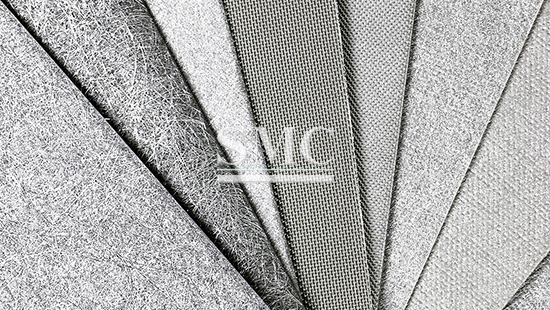

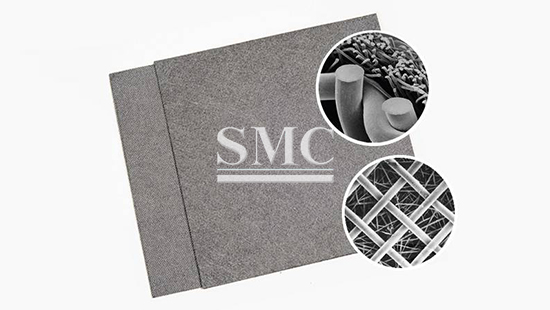

Sintered metal fiber felt is produced in a vacuum furnace, with metal fibers randomly laid. The fiber diameters and basis weight are selected precisely, then the pore diameter is controlled by thickness. It keeps a three-dimensional reticulated porous structure with high permeability, low-pressure drop, and excellent dirt holding capacity. The bigger particle could be captured at the outside surface, allowing small particles pass through the metallic fiber felt. The metal fiber felt could be sintered together with metal wire mesh to enhance the strength and subsequent longer on-stream life. It could be cleaned in suit, thus saving cost by minimizing the shutdown time.

If you want to know more about our stainless steel products or sintered metal fibre felt price please feel free to contact us, we will reply you within 24 hours.

Materials: stainless steel fibre or other alloy metal fibre
Filter rating: 1-100um
Thickness: 0.2-1.5mm
Length: 48”(can be customized)
Width: 48”(can be customized)

High mechanical and compressive strength.
The filter particle size of 1-100um can play a uniform surface filtration performance.
Strong heat resistance and low thermal conductivity, can still be durable in continuous filtration from -200 ℃ to 650 ℃.
Easy to clean, no staple fiber shedding.

Liquid and gaseous ammonia
Steam filtration
Hydraulic filtration
Gasification
Electronic high-temperature gas dust removing
Polymer filtration and polyester melt purifying
Catalyst retention and recovery
Pharmaceutical powder recovery

Technical Information of Stainless Steel Sintered Fibre Felt:

Specification of Metallic Fiber Felt
Efficiency (um)	Thickness (mm)	Thickness (inch)	Porosity (%)	Bubble Point (Pa)	Bubble Point (psi)	Permeability (L/dm².min)
3	0.37	0.0146	67	13000	1.89	13
5	0.30	0.0118	75	6800	0.99	47
7	0.36	0.0142	74	5050	0.73	60
10	0.34	0.0134	78	3700	0.54	85
15	0.38	0.0150	80	2470	0.36	170
20	0.51	0.0201	82	1850	0.27	265
25	0.62	0.0244	79	1480	0.21	325
30	0.62	0.0244	79	1235	0.18	450
40	0.63	0.0248	76	900	0.13	620
60	0.57	0.0224	83	600	0.09	1350
86	1.00	0.0394	84	480	0.07	1470
80	1.00	0.0394	85	450	0.07	1510
90	1.20	0.0472	88	410	0.06	1740
100	1.30	0.0512	89	360	0.05	2000

Packaging

Wooden box
