Material: Carbon Steel.

Surface Finish: Hot Dip Galvanized and plain.

Size: DN800,DN900,DN1000, etc.

Product Detail | Technical Information | Packaging

Product Detail1

Shanghai Metal Corporation is a professional manufacturer and supplier of Steel Cable Reels with high quality and reasonable price.

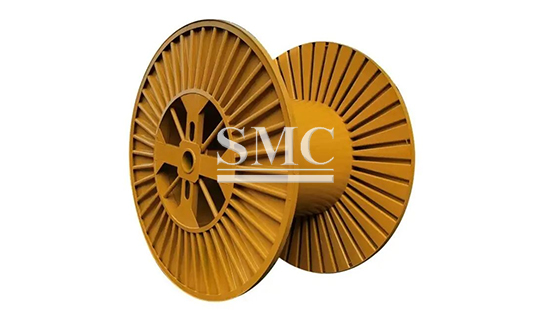

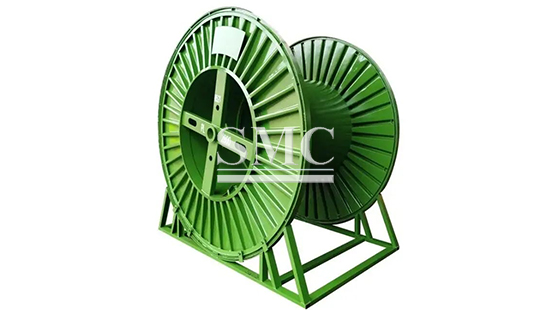

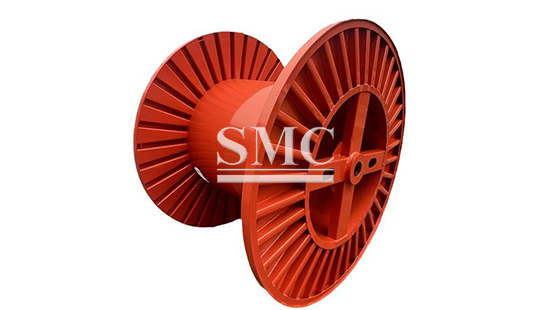

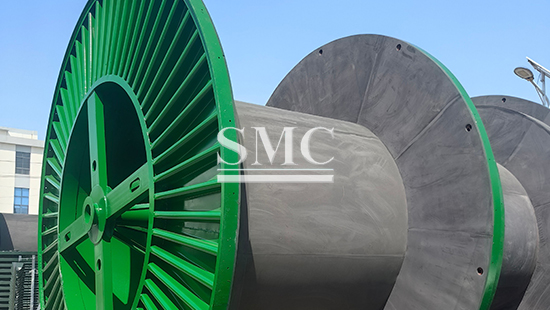

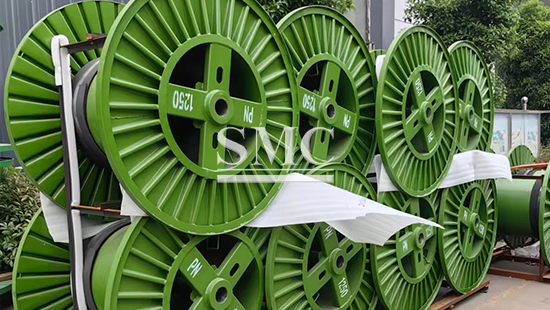

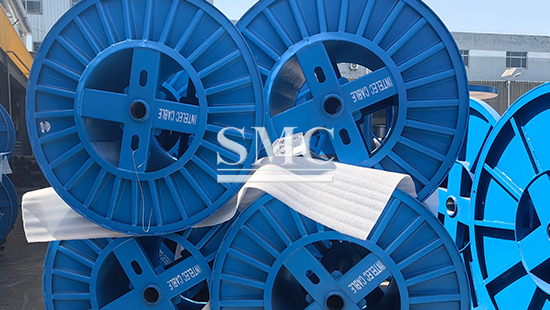

Steel Cable Reels are industrial equipment specifically designed for winding, storing, and transporting steel cables. Typically crafted from high-strength steel (e.g., Q235B, ASTM A36), they adopt an open-frame structure with two side plates and a central shaft—often enhanced with anti-corrosion treatments like hot-dip galvanizing or epoxy coating to withstand harsh environments. Their core functions include securing cables to avoid damage, enabling easy lifting (via integrated lugs), and supporting efficient cable deployment. They are widely used in sectors such as power transmission (for high-voltage cables), construction (elevators, cranes), marine engineering (anchor chains), and mining.

If you want to know more about our Steel Cable Reels price, please feel free to contact us, we will reply you within 24 hours.

1. Size: DN800-DN3150 or customized.
2. Material: Q235B, A36.
3. Surface Treatment: HDG, Paint.
4. Standard: ISO7893, GB/T 700.

1. High strength and stable structure
2. Weather-resistant and corrosion-resistant
3. Durable and economical
4. Strong usability and adaptability

1. The power and communication industry
2. The field of Marine engineering
3. Construction and engineering machinery

Technical Information of Steel Cable Reel:

Steel cable reel production must comply with international/industry technical specifications to ensure consistency and reliability. The structural design of steel cable reels must strike a balance between "load-bearing capacity" and "operational convenience". Shaft diameter and side plate thickness directly affect the maximum load.Embedded Anchor Channel are usually paired with T-bolts in engineering installations.

technical

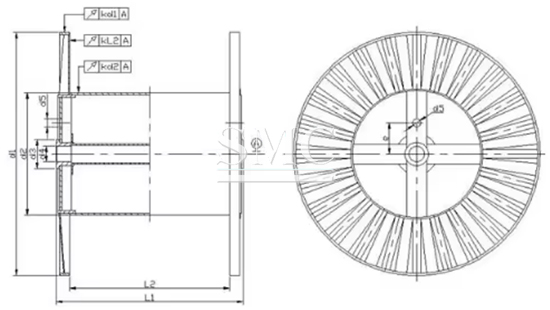

Corrugated Bobbin
Specification/Type	d1	d2	d3	d4	d5	e	L1	L2	V1/dm³
800	800	400	100	80	28-40	160	600	500	188.5
900	900	450	160				670	560	267.2
1000	1000	500					750	630	371.1
1150	1150	560					850	710	524.6
1250	1250	630					950	800	732.4
1400	1400	710				300	1060	900	1029.1
1600	1600	800			70-130		1180	1000	1508.0
1800	1800	1000	200	100			1320	1120	1970.4
2000	2000	1120	250	125			1500	1250	2695.5
2240	2240	1250					1700	1400	3799.1
2500	2500	1500					1900	1600	5026.5
2800	2800	1800	280	140			2120	1800	6503.1
3150	3150	1900	300	160		500	2300	2000	9915.6

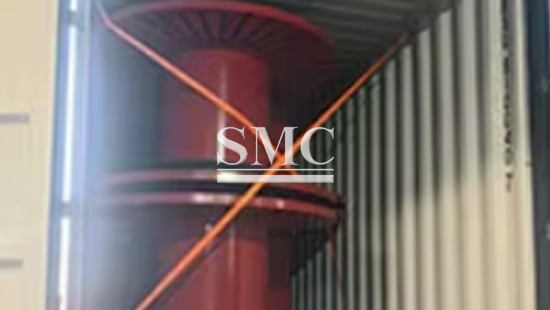

Packaging of Steel Cable Reel:

Shanghai Metal Corporation Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)SMC Standard

2)Customization

packaging
