Material: 3.5Ni, 5Ni, 9Ni

Thickness: 8-50mm

Width x Length: 1.5-4.0m x 6-12m

Product Detail | Technical Information | Packaging

Product Detail

Shanghai Metal Corporation is a professional manufacturer and supplier of Tough and low temperature alloy plate with high quality and reasonable price.

This kind of tough alloy steel has good toughness and high strength at extremely low temperatures. Compared with austenitic stainless steel and aluminum alloys, it has a smaller coefficient of thermal expansion and is more economical. The highest grade 9Ni of these materials, its service temperature can reach as low as -196℃. Since 1960, studies have proven that it can be used safely after welded without stress relief heat treatment, 9Ni steel has become one of the main materials used to manufacture large LNG storage tanks. The main characteristics of steel are high nickel content, high purity, high strength, high low temperature impact toughness, and good welding properties.

If you want to know more about our tough and low temperature alloy plate, please feel free to contact us, we will reply you within 24 hours.

Standard: ASTM A553/ ASTM A353

Manufacture process: Oxygen Converter or Electric furnace smelting + Refining outside the furnace

Material Classification: Killed steel by using aluminum deoxidation.

Delivery State: Normalized, Normalized + Tempered or Quenched + Tempered

1. High strength

2. Excellent low-temperature toughness

3. Good welding performance

1. Tough and low temperature alloy steel is mainly used to manufacture liquefied natural gas(LNG)storage tanks and transportation ships.

2. It is the toughest material used in cryogenic environments.

Technical Information of Tough and Low Temperature Alloy Plate:

Grade	Chemical Components %
Grade	C	Mn	Si	P	S	Ni	Others
LT32-1	≤0.18	0.7-1.60	0.10-0.50	≤0.025	≤0.025	≤0.80	Cu≤0.35
LT32-2							Cr≤0.25
LT36-1							Mo≤0.08
LT36-2							Nb≤0.05
LT40-1							V≤0.10
LT40-2							Als≥0.015
LT32-3	≤0.16						N≤0.015
LT36-3
LT40-3
0.5NiA	≤0.14	0.7-1.50	0.10-0.50	≤0.025	≤0.010	0.15-0.80	Cu≤0.35 Cr≤0.25 Mo≤0.08 Als≥0.015 N≤0.012
0.5NiB	≤0.16	0.85-1.70	0.10-0.50	≤0.025	≤0.010	0.15-0.85
1.5Ni	≤0.14	0.30-1.50	0.10-0.35	≤0.025	≤0.020	1.30-1.70
2.25Ni	≤0.13	0.30-1.50	0.10-0.35	≤0.025	≤0.020	2.00-2.50
3.5Ni	≤0.12	0.30-0.80	0.10-0.35	≤0.025	≤0.020	3.20-3.80
5Ni	≤0.12	0.30-0.90	0.10-0.35	≤0.025	≤0.020	4.70-5.30
9Ni	≤0.10	0.30-0.90	0.10-0.35	≤0.025	≤0.020	8.50-10.0

GB 24510-2009	EN 10028-4-2003	JIS G3127-2005	CCS-2007	ASME
9Ni490	X8Ni9+NT640	SL9N520	9Ni	SA353
9Ni590A	X8Ni9+QT680	SL9N590		SA553-1
9Ni590B	X7Ni9+QT680	SL9N590		SA553-1

Standard	C	Mn	Si	P	S	Ni
ASTM A553	≤0.13	≤0.90	0.15-0.30	≤0.035	≤0.04	8.50-9.50
ASTM A353	≤0.13	≤0.98	0.15-0.45	≤0.040	≤0.035	8.40-9.60
BS1501-509	≤0.10	0.30-0.80	0.10-0.30	≤0.030	≤0.025	8.75-9.75
VDEh680	≤0.10	0.30-0.80	0.10-0.35	≤0.035	≤0.035	8.50-9.50
JIS G3127	≤0.12	≤0.90	≤0.30	≤0.025	≤0.025	8.50-9.50

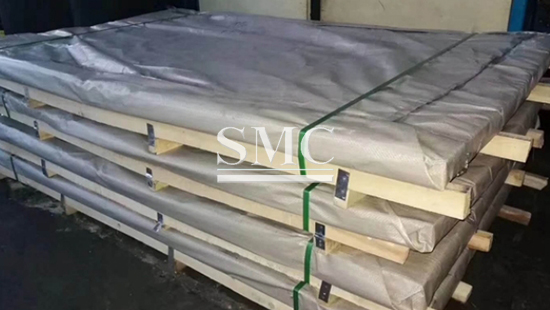

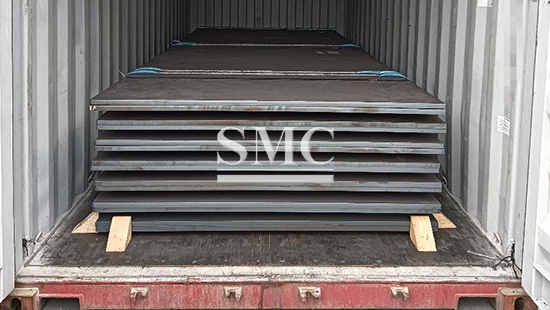

Packaging of Tough and Low Temperature Alloy Plate:

Standard export package or according to client's requirement.
