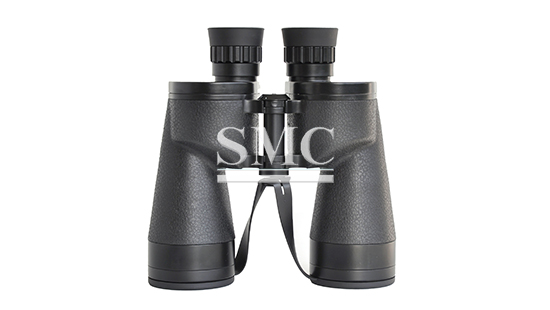

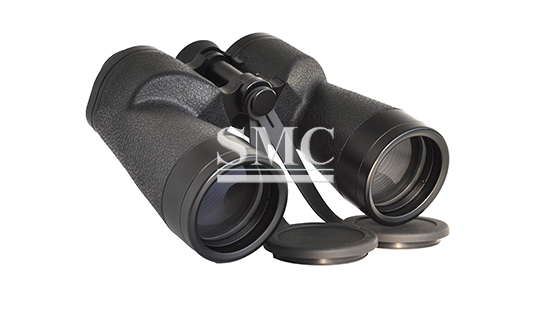

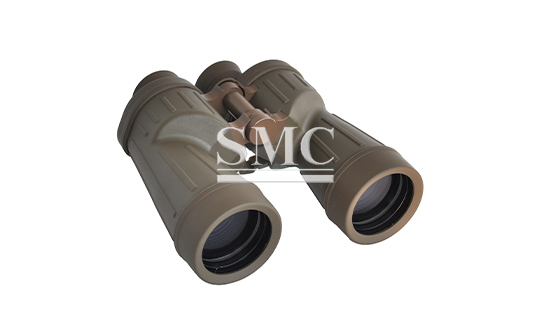

Binoculars
.jpg)
.jpg)
.jpg)
Shanghai Metal Corporation’s general instruments division contains one military optical instruments factory , Yunnan Optical Instruments factory, it is called the "cradle" and "hometown" of China's optical industry.
The products includes military telescope, artillery sight, generation of infrared and low-light night vision instruments, and optical rangefinder were born here. Shanghai Metal Corporation has accumulated more than 20 years of production and scientific research experience and technical strength, it also improves the level of manufacturing technology. In terms of optical testing instruments, it covers all aspects of optical processing and measurement, with measuring accuracy ranging from precision to high precision. The products under measurement range from white light, low light to infrared, forming several series and dozens of varieties.
If you want to know more about Military Binoculars price please feel free to contact us, we will reply you within 24 hours.

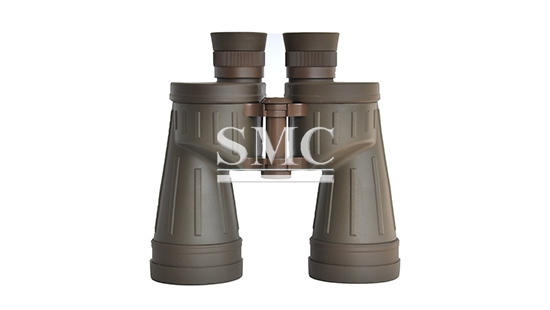

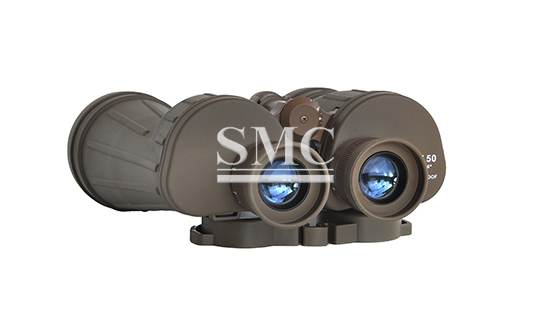

Technical Information of Military Binoculars
|
Product Type |
M12X50 |
M12x50K |
|
|
Magnification |
12x |
12x |
|
|
Body material |
Aluminum |
Aluminum |
|
|
Armor material |
NBR+PVC |
NBR+PVC |
|
|
Color |
Black,khaki and army green |
Black,khaki and army green |
|
|
Objective lens Ø |
Φ50 ± 1mm |
Φ50 ± 1mm |
|
|
Ocular lens Ø |
Φ21.5 ± 1mm |
Φ21.5 ± 1mm |
|
|
Exit pupil Ø |
Φ4.1mm ± 10% |
Φ4.1mm ± 10% |
|
|
Exit pupil distance (mm) |
16mm |
16mm |
|
|
Field of view (°) |
5.2° |
5.2° |
|
|
Field of view (at 1000M) |
91m |
91m |
|
|
Field of view (at 1000yds) |
273ft |
273ft |
|
|
Near focus |
9m |
4m |
|
|
Dioptre system |
Right dioptre ring |
Right dioptre ring |
|
|
Interpupillary distance |
56～74mm |
56～74mm |
|
|
Focus System |
Two eyes modulation |
Two eyes modulation |
|
|
Focusing lens |
Eye. |
Eye. |
|
|
Focusing Adjustment |
-4 To +4 Dioptre |
-4 To +4 Dioptre |
|
|
Prism System |
Paul prism |
Paul prism |
|
|
Prism Glass Material |
BaK4 |
BaK4 |
|
|
Optical Configuration |
Objective lens |
2E1G |
2E1G |
|
Ocular lens |
4E3G |
4E3G |
|
|
Lens Type |
Spherical Lens |
Spherical Lens |
|
|
Optical Material |
All optical glass |
All optical glass |
|
|
Lens coating |
Coating Condition |
The eyepiece and objective lens are coated with single-side wide-band green film, and the rest are blue film |
The eyepiece and objective lens are coated with |
|
Coating Spec. |
420-680nm,R＜0.5%(AVG) 、420-680nm,R＜1.0%(ABS),blue film550nm（MGF2) |
||
|
Prism coating |
Coating Condition |
Blue film |
Blue film |
|
Coating Spec. |
550nm（MGF2) |
550nm（MGF2) |
|
|
Water/Fog-proof |
Yes |
Yes |
|
|
Gas Filled |
▇ Nitrogen □ others |
▇ Nitrogen □ others |
|
|
Eye cup |
Type |
□Twist up ▇Fold down |
□Twist up ▇Fold down |
|
Material |
Rubber(NBR) |
Rubber(NBR) |
|
|
Eye Caps |
Type |
▉ conjoined □ monomer type □ others |
▉ conjoined □ monomer type □ others |
|
Material |
rubber(NBR+PVC) |
rubber(NBR+PVC) |
|
|
Obj. Cover |
Type |
□conjoined ▉monomer type □ others |
□conjoined ▉ monomer type □ others |
|
Material |
Rubber(NBR+PVC) |
Rubber(NBR+PVC) |
|
|
Adapt to tripod |
Yes |
Yes |
|
|
Strap |
Yes |
Yes |
|
|
Soft case |
Type |
Yes |
Yes |
|
Material |
600D Oxford cloth bag |
600D Oxford cloth bag |
|
|
Strap |
Type |
Yes |
Yes |
|
Material |
25mm woven belt |
25mm woven belt |
|
|
Cleaning cloth |
Yes |
Yes |
|
|
Instruction manual |
Yes |
Yes |
|
|
Packaging |
Yes |
Yes |
|
|
Size(Length×Width×Height) |
190x60x177mm |
190x60x177mm |
|
|
Weight approx |
979g |
1045g |
|

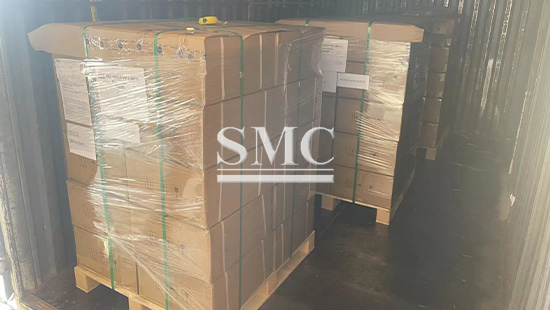

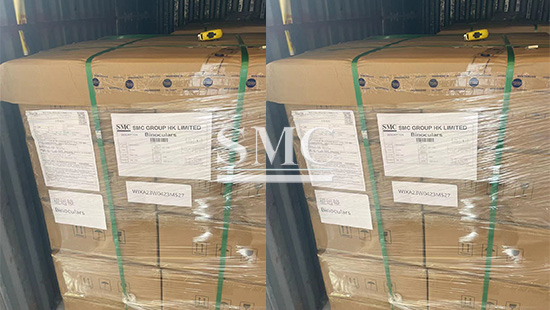

Packaging of Military Binoculars
Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1) Shanghai Metal Standard
2) Customization
Type Details of Military Binoculars
|

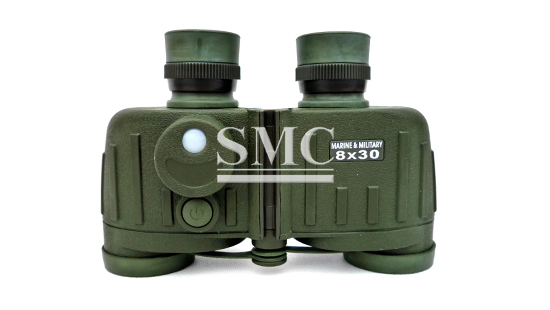

Type |
M8X30 |
Exit pupil distance (mm) |
11.2 |
Net weight(g) |
680 |
|
Magnification |
8 |
Exit pupil Ø (mm) |
3.7 |
Size(cm) |
13X17X5 |
|
Entrance pupil diameter（mm） |
30 |
Nearest focal length(m) |
|
Package Size(mm) |
|
|
Resolution |
≤7″ |
Focus System |
Two eyes modulation |
Pieces per carton/Gross weight |
10/12.6kg |
|
Field of view (°) |
8.5° |
Prism Glass Material |
BaK7 |
Visual adjustment range |
±5 Dioptre |
|
Field of view (at 1000M) |
|
Relative brightness |
14.06 |
Adapt to tripod |
Yes |
|
Battery type： |
None |
Transmittance |
＞90（83） |
|
|
|
The whole set includes: 1 8-fold telescope, a pair of extender lenses, 1 cowhide mirror case, and 1 wipe cloth. |
|||||
|

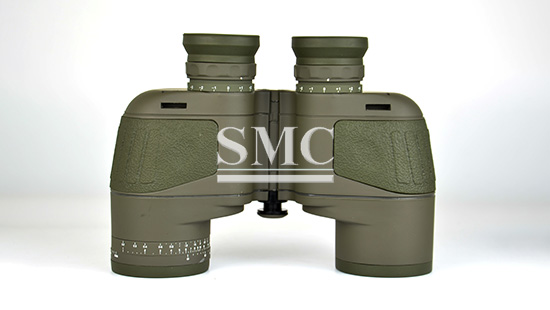

Type |
M10x50 |
Exit pupil distance(mm) |
18 |
Net weight(g) |
850 |
|
Magnification |
10X |
Exit pupil Ø (mm) |
5 |
Size(cm) |
22X8X18 |
|
Entrance pupil diameter（mm） |
50 |
Nearest focal length(m) |
|
Package Size(cm) |
|
|
Resolution |
≤5.6″ |
Focus System |
Two eyes modulation |
Pieces per carton/Gross weight |
6/14kg |
|
Field of view (°) |
6° |
Prism Glass Material |
Bak4 |
Visual adjustment range |
±5 Dioptre |
|
Field of view (at 1000M) |
132 |
Relative brightness |
25 |
Adapt to tripod |
Yes |
|
Battery type（compass） |
AG13 |
Transmittance |
＞90（83） |
|
|
|
The whole set includes: 1 8-fold telescope, a pair of extender lenses, 1 cowhide mirror case, and 1 wipe cloth. |
|||||
|

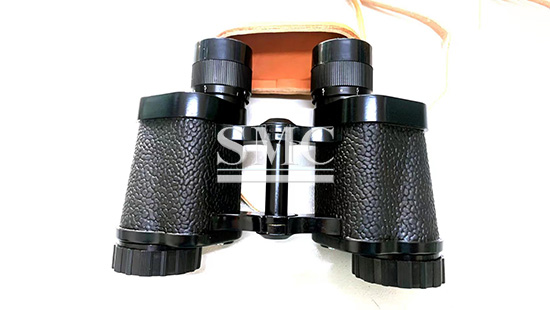

Type |
T62-8X30 |
Exit pupil distance(mm) |
11.2 |
Net weight(g) |
680 |
|
Magnification |
8 |
Exit pupil Ø (mm) |
3.7 |
Size(cm) |
13X17X5 |
|
Entrance pupil diameter（mm） |
30 |
|
|
Package Size(cm) |
|
|
Resolution |
≤7″ |
Focus System |
Two eyes modulation |
Pieces per carton/Gross weight |
10/12.6kg |
|
Field of view (°) |
8.5° |
Prism Glass Material |
BaK7 |
Visual adjustment range |
±5 Dioptre |
|
Field of view (at 1000M) |
|
Relative brightness |
14.06 |
Adapt to tripod |
Yes |
|
Battery type： |
None |
Transmittance |
＞90（83） |
|
|
|
The whole set includes: 1 8-fold telescope, a pair of extender lenses, 1 cowhide mirror case, and 1 wipe cloth. |
|||||
