Oxygen Lance & Thermic Lance

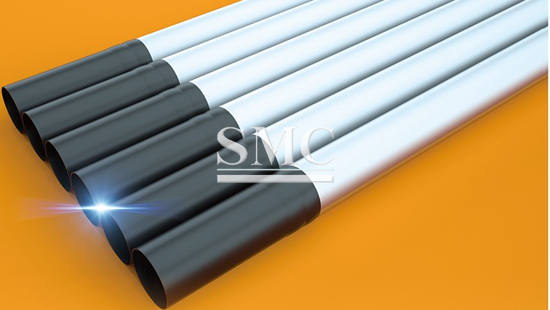

Calorized Oxygen Lance

    In our calorising process, the diffusion layer formed is a mixture of iron and aluminides.

Calorised Steel Pipe is continuously hot dip diffusion coated inner & outer with an aluminum coating according to the standard of GB/Tl8592-2001.The hot dip diffusion process, pio­ neered by Xingrui, provides a tight metallurgical bond between the steel and the coat­ ing,lance pipe lasts five to seven times longer than mid steel pipe in oxygen injection,also shorten the tap-time in the oxygen enrichment operation

In our calorising process, the diffusion layer formed is a mixture of iron and aluminides, de­ pendent on the substrate mater, with an aluminium content of between 30 and 45 wt. % at the surface.The percentage of aluminium gradually decreases through the diffusion zone to that of the substrate material.

This process results in a material with the strength of steel plus the corrosion protection of aluminum, and the synergistic heat protection of an aluminum alloy,high temperature resis­ tance can reach to 600°C .

In any calorising process, components are placed in a steel retort surrounded by a powder mixture containing aluminium, a halide and an inert diluent. The retort is then sealed, placed into a furnace and heated to an elevated temperature, held at temperature and then slowly cooled back to room temperature. After cooling the components are removed from the retorts and cleaned to remove any compound or residues.

Technical Information of Calorized Oxygen Lance:

N  o m i n  a l    S  i z  e

O D  (  m  m )

W T ( m  m )

L ( M )

B  u n  d l e

1S A  (1 /  2  "  )

2 1  .  3

2

2.7 5 /  5 .  5

2  5  0

2 0 A  (3  /  4  ")

2 6  .  7

2  .  5

2.7 5 /   5  .  5

2  0  0

2 5 A (1 " )

3 3  .  4

2  . 5

2.7 5 / 4   /   5  .  5

1 0  0

3 2 A (1-1/ 4 ")

4 2  .  2

2 .  9

2.7 5 /  4 /  5 . 5

9  0

4 0  A (  1 ”1 /  2  "  )

4 8  . 3

3

2.7 5 / 4 /  5 . 5

6  0

Packaging of Calorized Oxygen Lance:

Shanghai Metal Corporation Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)SMC Standard

2)Customization

More of Calorized Oxygen Lance:

Cutting scrap, raising bath temperatures and decarburizing Opening nozzles in tundish and ladles

Injecting carbon and other powders into EAF & LF

Opening the iron notch of a blast furnace

Injecting argon into ladles

Injecting argon and oxygen into the AOD

Injecting flux for degassing in aluminum melting furnaces
