Aluminum Strip

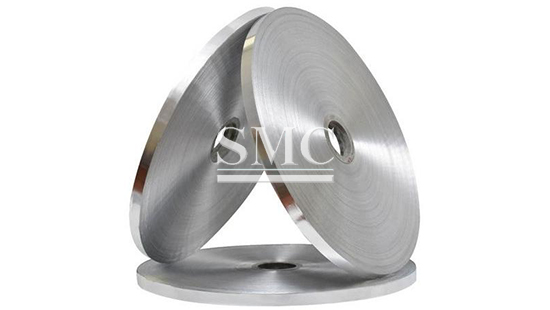

Copolymer Coated Aluminum Tape

    Grade: 1145, 8011



    Thickness: 0.20mm or 0.15mm



    Coating thickness: 0.04mm - 0.06mm

Shanghai Metal Corporation is a leading Copolymer Coated Aluminum Tape manufacturer and supplier.

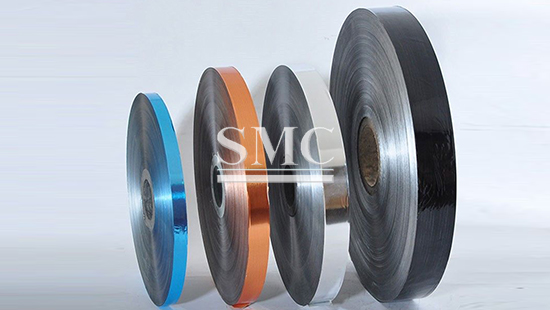

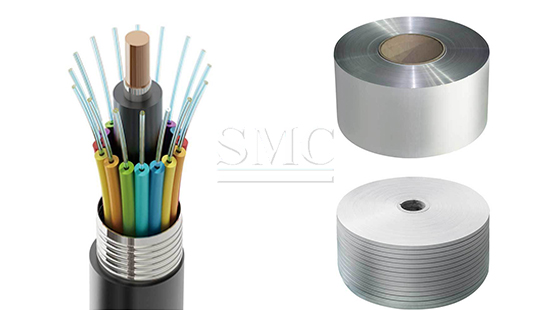

Description: Copolymer coated aluminum tape applies for shielding and moisture barrier for copper pair cables. It consists of an aluminum tape coated on one side or both sides with an adherent ethylene copolymer with clear or blue color. The copolymer provides excellent adhesion to the aluminium substrate and has the chemical resistance and general characteristics of low-density polyethylene and gives excellent bond strength to all types of polyethylene. Aluminum alloys available 1050, 1060, 1200, 1145, 8011 according to customized requirements.

If you want to know more about our Aluminum products or Copolymer Coated Aluminum price please feel free to contact us, we will reply you within 24 hours.


Specifications for Copolymer Coated Aluminum Tape(Aluminum

Copolymer Lamination Tape, EAA-AL-EAA Lamination Tape):
1) Grade: 1145, 8011
2) Aluminum thickness: 0.20mm, 0.15mm, etc.
3) Coating material: ethylene copolymer, EAA
4) Coating thickness: 0.04mm - 0.06mm
5) Width: 15mm - 1000mm
6) Temper: soft
7) Peel strength of lamination: min. 6.13N/cm
8) Length of coil: 1000m - 4000m
9) ID: 76mm, 150mm, 406mm
10) Tensile strength: min. >=58 MPa
11) Elongation: >=15%

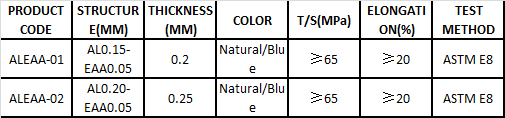

Technical Information of Copolymer Coated Aluminum Tape:

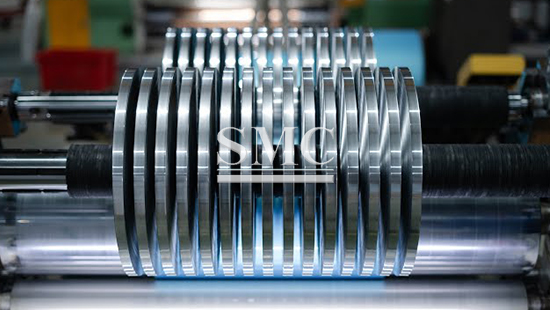

Process Flow of Copolymer Coated Aluminum Tape:

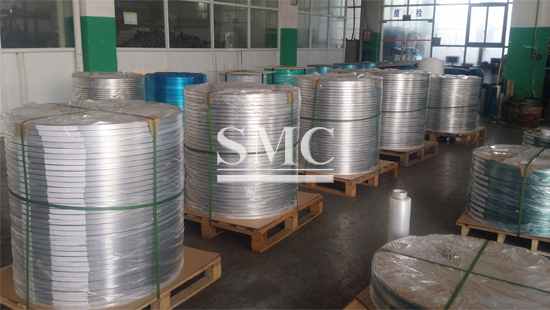

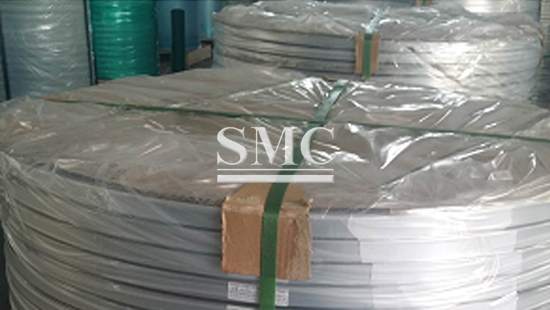

Packing of Copolymer Coated Aluminum Tape:

TYPE

ID

OD

WIDTH

CORE

COLOR

Wooden Case

76/150/406mm

1200mm

10mm-1000mm

Paper/Steel/  plastic

Natural/  blue

STORAGE of Copolymer Coated Aluminum Tape:

Keep the warehouse clean. Avoid exposure to direct sunlight, pollution and all damage cuased by external forces.

HANDLING of Copolymer Coated Aluminum Tape:

Skilled operators should take or lay the materials gently, avoid scrap and crash problems.

REMARK of Copolymer Coated Aluminum Tape:

The above mentioned data sheet should, however, only be regarded as a general guide to product properties and not as a guarantee. Some of the properties can be changed

as a result of our efforts to improve the quality of our products.All listed test method is just for reference, actual test performed according to modified equipment and conditions.
