Size: DN80-DN2600

Standard: ISO2531

Usage: Widely used in connecting various pipelines to convey gas, water, oil and so on

Product Detail | Technical Information | Packaging

Product Detail

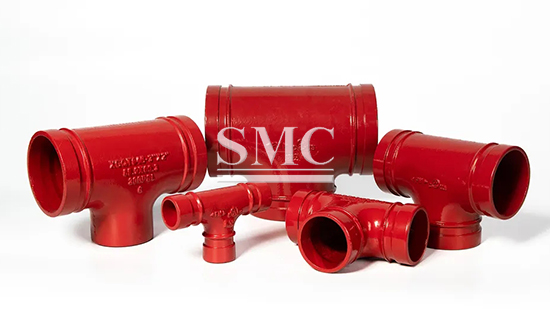

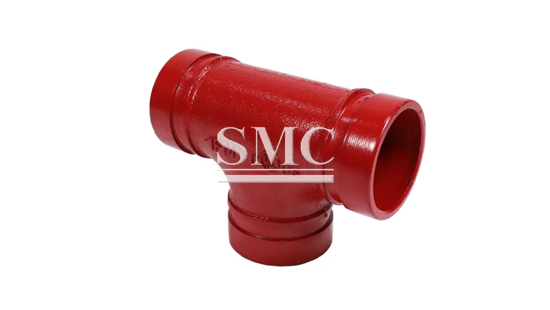

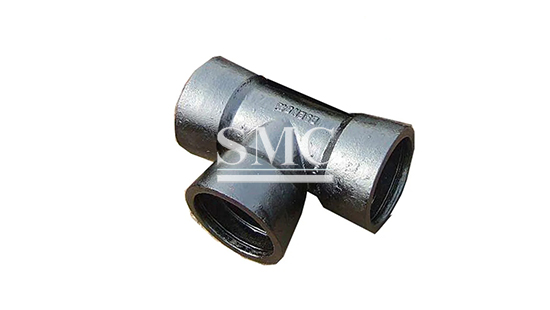

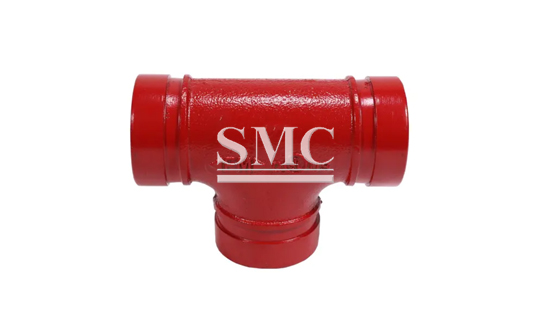

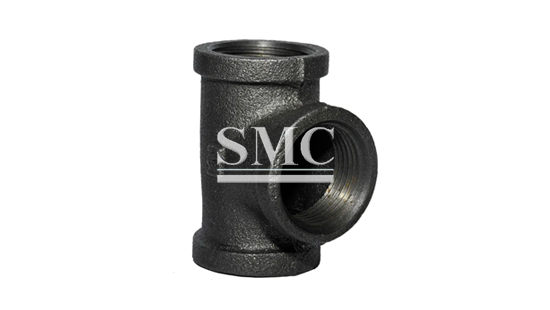

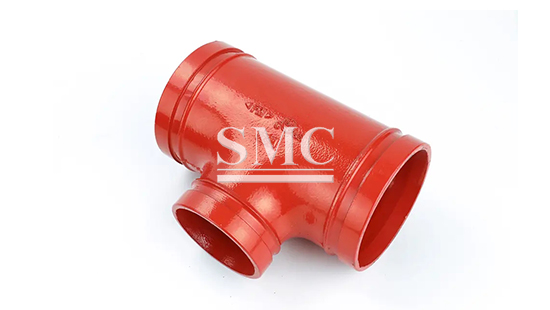

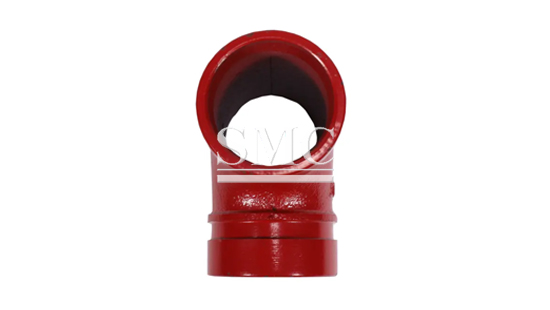

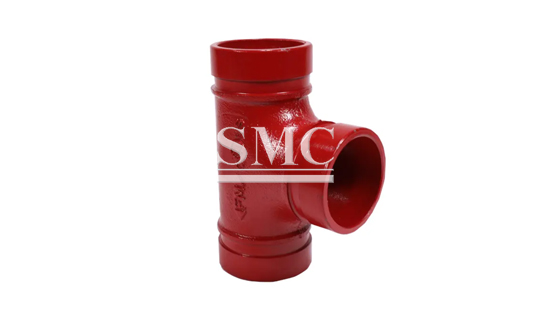

Shanghai Metal Corporation is a leading Ductile Iron Tee manufacturer and supplier.

Ductile iron pipe fittings are made of magnesium or rare earth magnesium combined with gold spheroidizing agent, which is added into molten iron before pouring to spheroidize graphite to reduce stress concentration, so the pipe fittings have high strength, good toughness, high elongation, impact resistance, corrosion resistance and good sealing, as well as convenient installation of flexible interface, strong seismic resistance and low labor intensity.

In this reason, ductile iron pipe fitings can bear high water pressure, resist external load and adapt to the changes of geological conditions. It can be applied to sections with poor geology and cross highways without additional processing of steel pipes. In addition, with strong corrosion resistance, it can be aplied to coastal and saline alkali areas.It is widely used in large-scale underground pipeline engineering.

If you want to know more about our Ductile Iron Tee, please feel free to contact us, we will reply you within 24 hours.

1. Type: Straight tee, reducing tee, Equal diameter side tee

2. Connecting way: Butt welding type, socket type, ferrule type, and threaded type

3. Size: DN80-DN2600

4.Tensile strength≥310Mpa:

5. Elongation≥10%

6. Hardness≤150HB

7. Testing pressure:2.5Mpa

8. Working pressure: 1.6Mpa

9. Surface treatment: Hot dipped galvanized , electric galvanized, baked galvanized, black

10. Edges: Banded, beaded or plain, with ribs or without ribs

11. Color: red, blue, black

1. With high strength, good toughness, high elongation.

2. The product has a long service life and can be installed easily.

3. Strong corrosion resistance.

4. Good sealing.

1.Connect ductile iron pipes from the water source to waterworks or house.

2. It can be involved in the entire water cycle process including drinking water, raw water; Wastewater, or reclaimed water; Srface and groundwater filtration; Seawater desalination, water treatment and storage.

Technical Information of Ductile Iron Tee:

Main Tube			Side Tube			Total Weight(kg)		Standard	Wall Thickness
DN/mm	e/mm	LU/mm	DN/mm	e/mm	LU/mm	T type	K type
80	8.1	170	80	8.1	85	12.4	17.7	ISO2531	K14
100	8.4	170	80	8.1	95	14.8	21.5	ISO2531	K14
125	8.7	170	80	8.1	105	17.6	22.8	ISO2531	K14
150	9.1	170	80	8.1	120	21.5	29.2	ISO2531	K14
200	9.8	175	80	8.1	145	30	37.9	ISO2531	K14
250	10.5	180	80	8.1	170	40.2	43	ISO2531	K14
300	11.2	190	80	8.1	195	59.4	65.4	ISO2531	K14
350	11.9	180	80	8.1	220	63.6	74.5	ISO2531	K14
400	12.6	190	80	8.1	240	76.1	87.1	ISO2531	K14
450	13.3	190	80	8.1	270	101	102.5	ISO2531	K14
500	14	190	80	8.1	290	110	116.8	ISO2531	K14
600	15.4	200	80	8.1	340	165	165	ISO2531	K14
700	16.8	205	80	8.1	390	217	207	ISO2531	K14
800	18.2	210	80	8.1	440	278	254	ISO2531	K14
900	19.6	220	80	8.1	490	349	322	ISO2531	K14
1000	21	220	80	8.1	540	433	434	ISO2531	K14
1100	22.4	230	80	8.1	590	524.1	452.7	ISO2531	K14
1200	23.8	235	80	8.1	640	640.9	530.3	ISO2531	K14
1400	26.6	250	80	8.1	740	988.8	698	ISO2531	K14
1600	29.4	400	200	9.8	860	1551	1122	ISO2531	K14
1800	32.2	410	200	9.8	960	1897	1449	ISO2531	K14
2000	35	420	200	9.8	1060	/	1924	ISO2531	K14
2200	37.8	430	200	9.8	1150	/	2252	ISO2531	K14
2400	40.6	450	200	9.8	1260	/	2959	ISO2531	K14
2600	43.4	460	200	9.8	1360	/	3551	ISO2531	K14

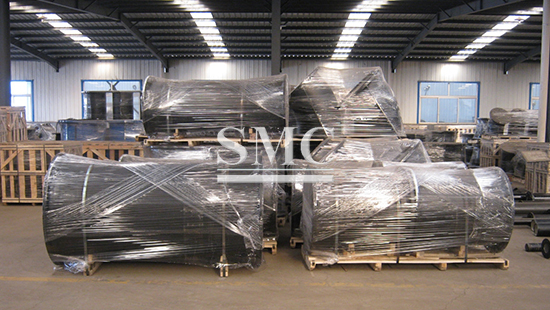

Packaging of Ductile Iron Tee:

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)Shanghai Metal Standard

2)Customization
