Cable material

Electric Insulation Tape

    Thickness: 0.11-0.2mm

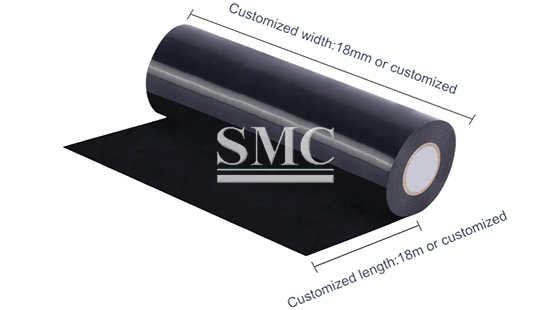

    Width: 9mm ~1250mm, as request


    Length: 9m-35m, as request

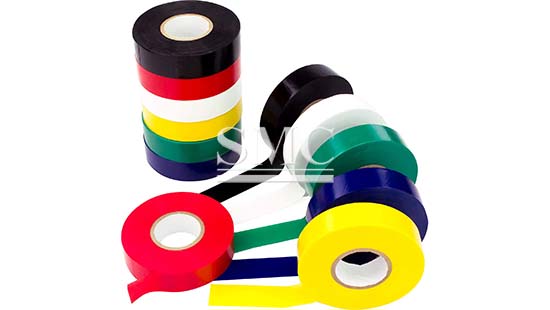

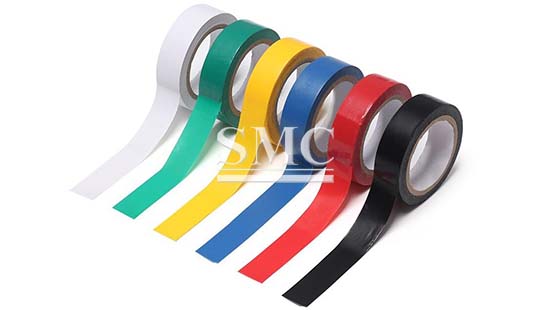

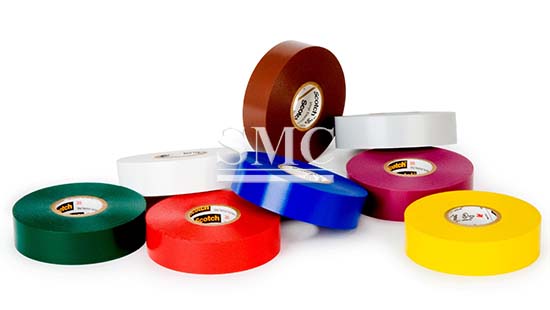

    Color: Black, Green, Blue, Yellow, Red, White, as request




Shanghai Metal Corporation is one of leading pressure sensitive tape producer in China, professionally in serving HVAC industry & markets.

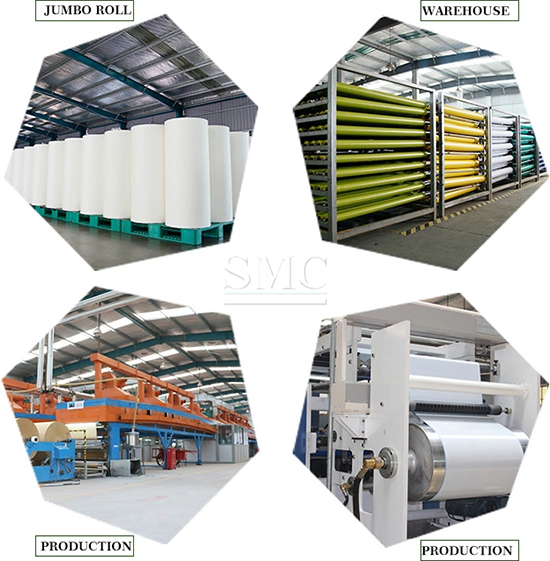

We currently have 5 kinds of PVC tapes, including electrical insulation tape, wire harness tape, pipe wrapping tape, lane marking tape and easy tear tape. We also supply tape jumbo rolls/logs to adhesive tape converters, distributors, wholesalers, retailers.

Our tapes can be applied in HVAC & Refrigeration, ducting, sealing & insulation, building & construction, electronics, packaging, pv solar, automotive industries, etc. To guarantee good quality, we have our own lab to test all the necessary technical data before shipping. We have special quality check department who is executing three inspection processes during production, after finishing products and before loading container. The major inspected aspects are quality, quantity and packing. For instance, we are checking loop tack, static shear, peel adhesion, tensile strength, etc. Apart from this, we also have a very strong research and development team, who is dedicated in developing new formula of adhesives.

If you want to know more about our electric insulation tape or aluminum foil adhesive tape price please feel free to contact us, we will reply you within 24 hours.




    • 1) Material: PVC Film, pressure sensitive rubber

      2) Tensile strength: 32N/cm

      3) Elongation ≥280%

      4) Adhesion to steel ≥4.5N/25mm

      5) Withstand voltage: 600V

      6) Heat resistance: 80℃

      7) 180°Peel Adhesion: 1.6N/cm

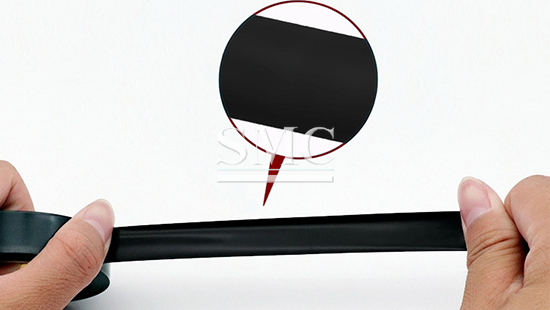

    • 1) Easy un-wind and easy tear

      2) Pressure-resistance

      3) Good performance and aging resistance

      4) Flexible and conformable

      5) Large tensile strength

      6) Weatherability

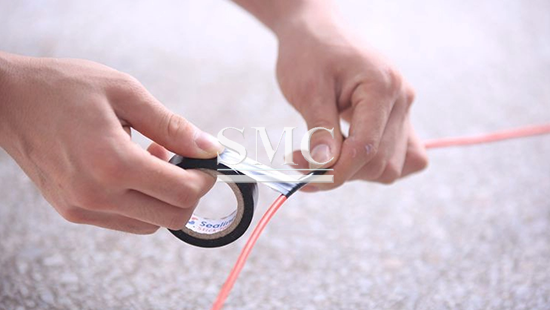

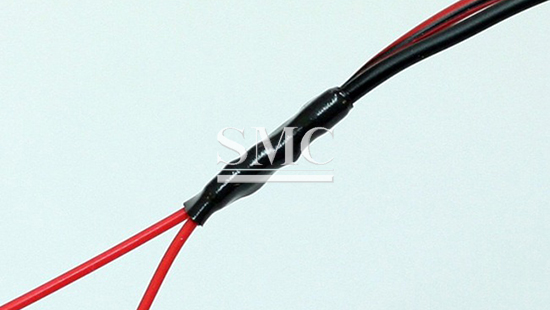

    • 1) Ideal for cables insulation wrapping and splicing

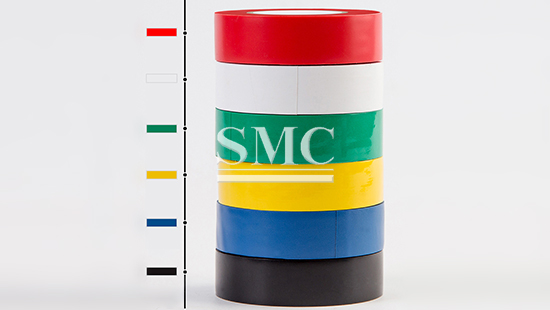

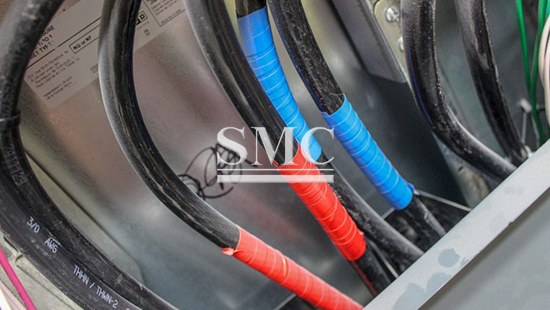

      2) Excellent for cables color marking

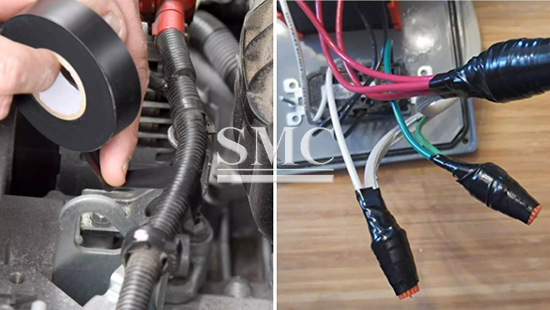

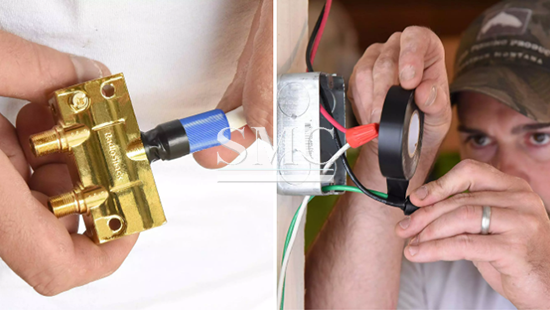

      3) Fixing taping coiled cables or insulating exposed conductors

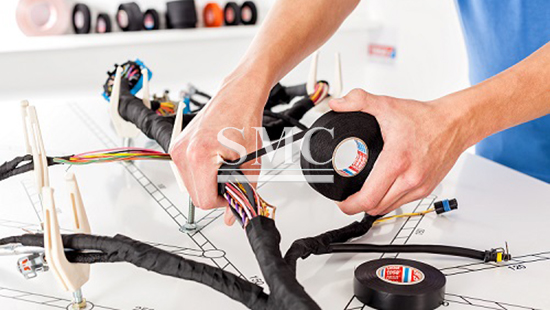

      4) Cable harnessing, insulation, abrasion protection for OEM companies in household appliances market

      5) Electric insulation below 600V

    Technical Information of Electric Insulation Tape:


    A thin premium grade plasticized PVC film coated with an aggressive rubber based adhesive with good characteristics. It is suitable for continuous use at 80°C with good electric flammability and soft property, not influenced by most chemical substances and humidity. It complies with ROHS requirement.



    Total thickness (mm)

    Tensile Strength(N/m)

    Elongation at break(%)

    Adhesion Strength to steel

    Adhesion Strength to backing

    Dielectric(v) breakdown

    Temperature Resistance(°C)

    Flame Resistance(s)

    0.11

    18

    190

    1.5

    1.5

    600

    80

    <2

    0.15

    25

    220

    1.5

    1.5

    600

    80

    <2

    0.165

    25

    220

    1.5

    1.5

    600

    80

    <2

    0.18

    30

    250

    1.5

    1.5

    600

    80

    <2

    0.20

    30

    250

    1.5

    1.5

    600

    80

    <2

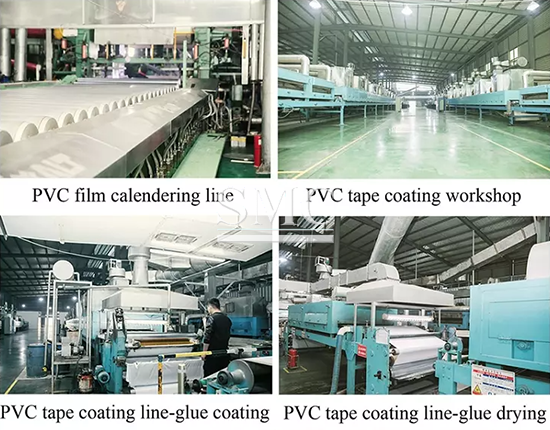

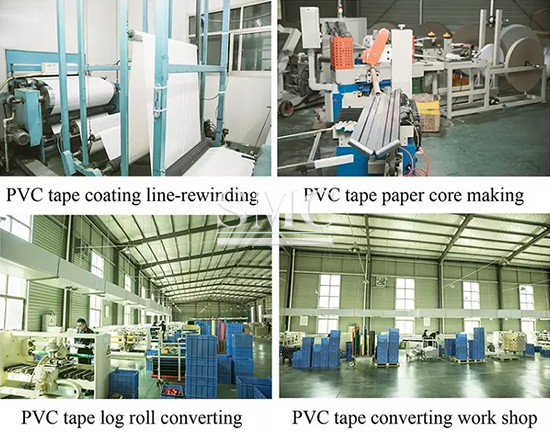

    electric insulation tape workshopelectric insulation tape workshopelectric insulation tape workshop

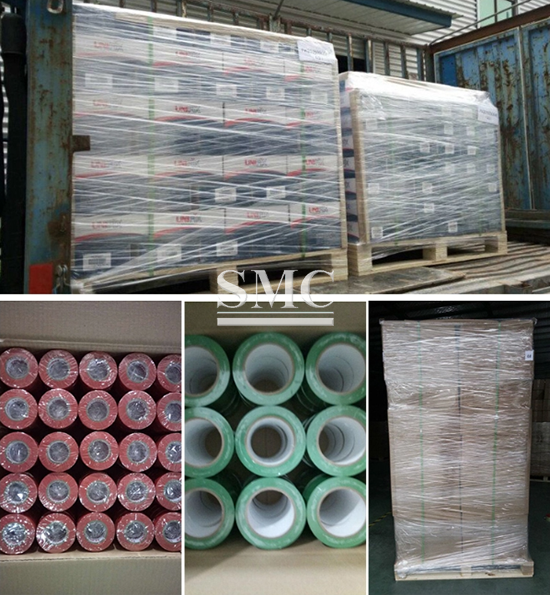

    Packaging of Electric Insulation Tape:


    Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.



    1) Shanghai Metal Standard



    2) Customization



    smc electric insulation tape packing
