Grade: 3204 A, 3204B, FR-4/ G10, G11

Thickness: 0.3mm - 120mm

Product Detail | Technical Information | Packaging

Product Detail

Shanghai Metal Corporation is a professional manufacturer and supplier of Epoxy Resin Board with high quality and reasonable price.

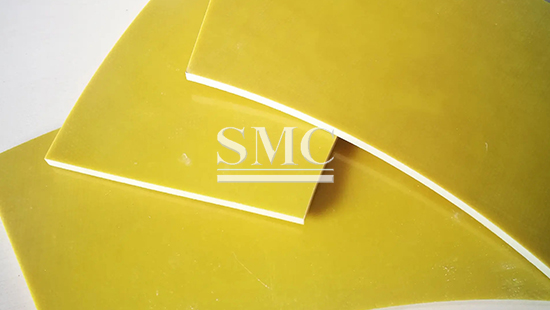

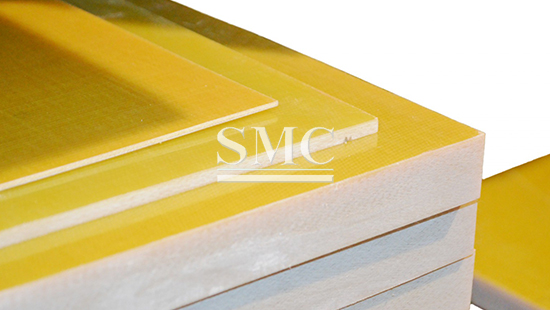

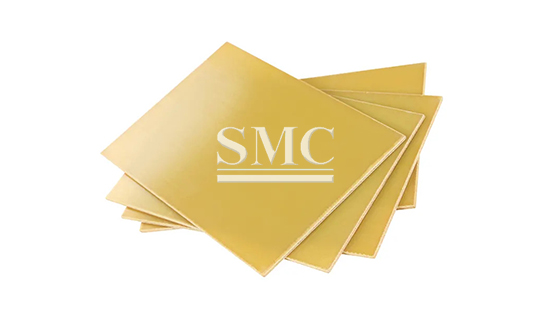

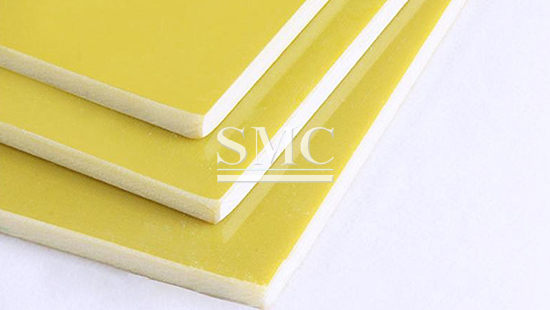

Epoxy Resin Sheet is made of alkali-free E-glass cloth impregnated with epoxy resin and phenolic resin by processing under heat and pressure. It has high mechanical and dielectric properties with thermos ability, moisture resistivity, and good machinability. Suitable for electrical, electronic, motor, and mechanical industries and other industries. It can be processed into various insulation accessories and insulation structural parts of equipment and can be used in humid environments and transformer oil.

If you want to know more about Epoxy Resin Board price please feel free to contact us, we will reply you within 24 hours

Standard: GB-T 1303-2009 - IEC60893-2004 (Refer to 3240-EPGC201)

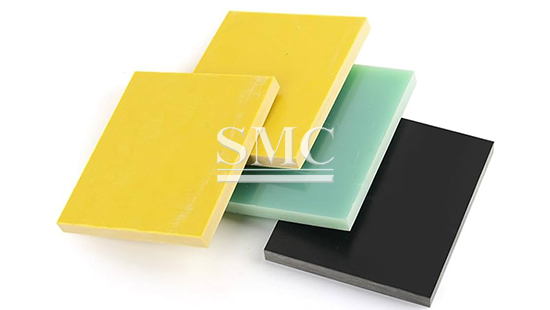

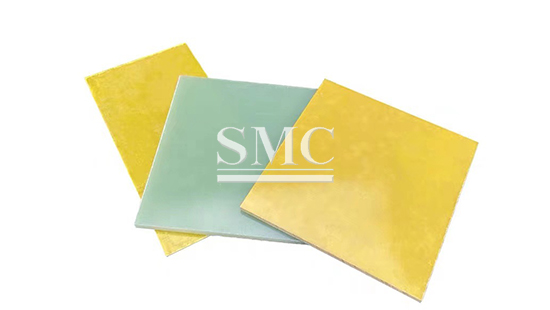

Color: Green, yellow, black, orange and white.

(Special colors can be made based on customer requests.)

Size: 1000mm ×2000mm; 1020mmx1220mm; 1020mm x 2040mm, and more sizes

1. High mechanical properties

2. Water resistance

3. High-temperature resistance

4. High strength

5. Excellent insulation

Epoxy Resin Board is widely used in transformers, electric motors, cabinets, control boxes, electric switches, household appliances, railway, automobile, computers and medical appliance.

1. Test Jig

2. Fixture PCB testing jig

3. Insulation plate

4. Switch insulation plate

5. Polish gear

6. Insulation structural part

Technical Information of Epoxy Resin Board:

Technical Data for 3240 Grade B
NO	TEST ITEMS		UNIT	TEST RESULT	TEST METHOD
1	Density		g/cm3	2.07	GB/T 1303.2-2009
2	Water Absorption		mg	6
3	Bending Strength Perpendicular to Laminations	A	MPa	203
		B		192
4	Modulus of Elasticity in Flexure	A	MPa	2.12*104
		B		2.38*104
5	Parallel Layer Impact Strength	A	KJ/m²	47.4
	(Simply Supported Beam, Gap)	B		35.8
6	Parallel Layer Shear Strength	A	MPa	49.8
		B		52.7
7	Tensile Strength	A	MPa	147
		B		121
8	Compressive Strength Perpendicular to Laminations compressive		MPa	438
9	Insulation Resistance after Soaking		Ω	2.0*109
10	Vertical Layer Breakdown Voltage (90℃ + 2℃ oil, 20s step by step boost)		MV/m	8.6
11	Parallel Layer Breakdown Voltage (90℃ + 2℃ oil, 20s step by step boost)		kV	28
12	Flammability		-	V-1
13	Deflection Temperature under Load	A	℃	＞140
		B		＞140
14	Adhesive Strength		N	6324	GB/T 1303.6-2009
REMARK:
1. NO.2 the sample size is 50mm50mm50mm;
2. NO.8 the sample height is (9.05~9.56) mm;
3. NO.10 the sample thickness is (2.91~2.95)mm;
4. NO.11 the sample size is 100.00mm5.08mm24.10mm;

Packaging of Epoxy Resin Board:

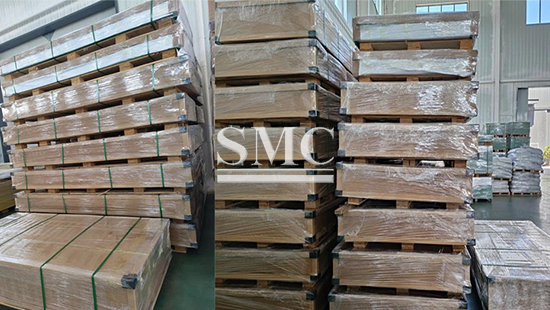

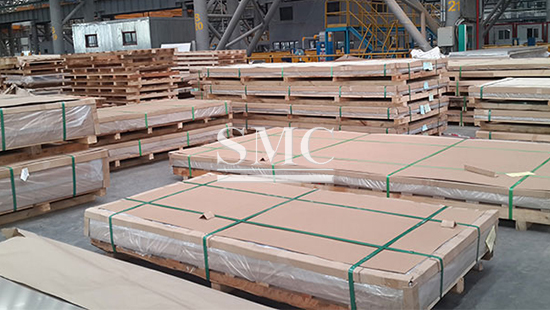

Shanghai Metal Corporation Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)SMC Standard

2)Customization
