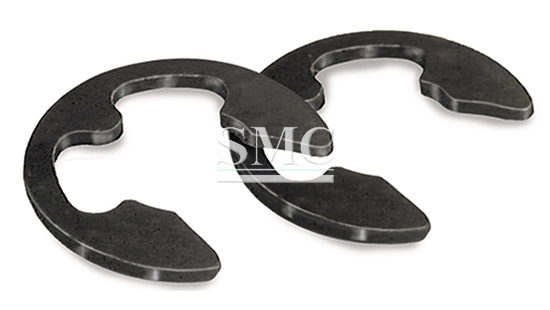

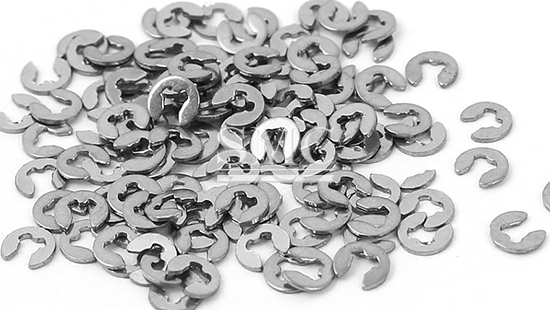

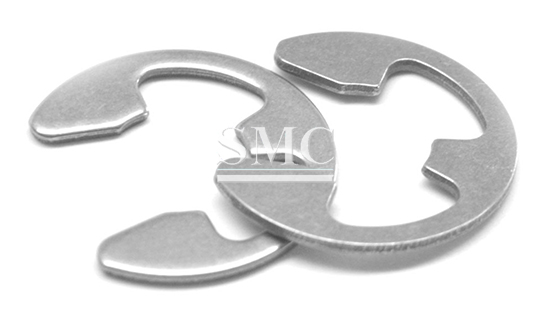

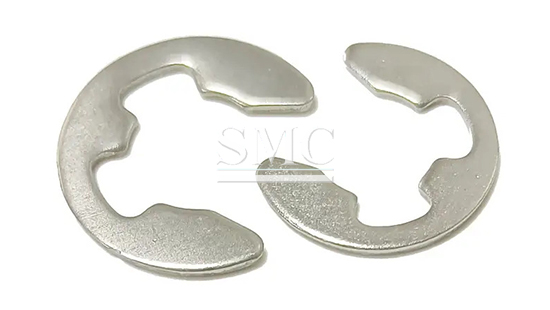

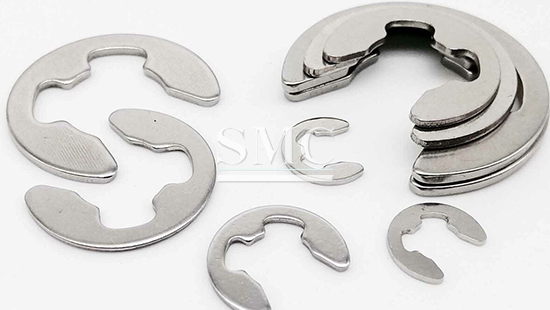

E-type Retaining Ring / E-Clip
Material: Carbon Steel (Spring Steel), SS304, SS316, Phosphated steel
Size Range: 1.5mm to 50mm (or as per customer requirements)
Surface Treatment: Black Oxide, Zinc Plated, Phosphate Coated, or Plain
Standard: DIN 6799, ANSI, JIS, GB
Shanghai Metal Corporation is a leading E-type Retaining Ring manufacturer and supplier.
E-type retaining rings, commonly known as E-clips, are essential mechanical components used to secure parts on shafts or in grooves. Their unique “E” shape allows them to snap into grooves without requiring additional fastening tools, making them highly convenient for quick assembly and disassembly.
If you want to know more about E-type Retaining Ring, please feel free to contact us, and we will reply to you within 24 hours.
Technical Information of E-type Retaining Ring (E-Clip):
|
Size |
Inside diameter |
Outside diameter |
B |
S |
|
M1.2 |
1.06 - 1.2 |
≈3 |
0.82 - 0.98 |
≈0.3 |
|
M1.5 |
1.36 - 1.5 |
≈4 |
1.075 - 1.325 |
≈0.4 |
|
M2 |
1.86 - 2 |
≈5 |
1.575 - 1.825 |
≈0.4 |
|
M2.5 |
2.36 - 2.5 |
≈6 |
2.075 - 2.325 |
≈0.4 |
|
M3 |
2.86 - 3 |
≈7 |
2.375 - 2.625 |
≈0.6 |
|
M3.5 |
3.32 - 3.5 |
≈8 |
2.875 - 3.125 |
≈0.6 |
|
M4 |
3.82 - 4 |
≈9 |
3.35 - 3.65 |
≈0.8 |
|
M5 |
4.82 - 5 |
≈10 |
4.35 - 4.65 |
≈0.8 |
|
M6 |
5.82 - 6 |
≈12 |
5.35 - 5.65 |
≈1 |
|
M7 |
6.82 - 7 |
≈14 |
5.85 - 6.15 |
≈1 |
|
M8 |
7.79 - 8 |
≈16 |
7.32 - 7.68 |
≈1 |
|
M9 |
8.79 - 9 |
≈18 |
7.82 - 8.18 |
≈1 |
|
M10 |
8.79 - 10 |
≈20 |
8.32 - 8.68 |
≈1 |
|
M11 |
8.79 - 11 |
≈22 |
9.32 - 9.68 |
≈1 |
|
M12 |
11.73 - 12 |
≈24 |
10.3 - 11.20 |
≈1.2 |
|
M13 |
12.73 - 13 |
≈24 |
11.8 - 12.20 |
≈1.2 |
|
M15 |
14.73 - 15 |
≈30 |
12.80 - 13.20 |
≈1.5 |

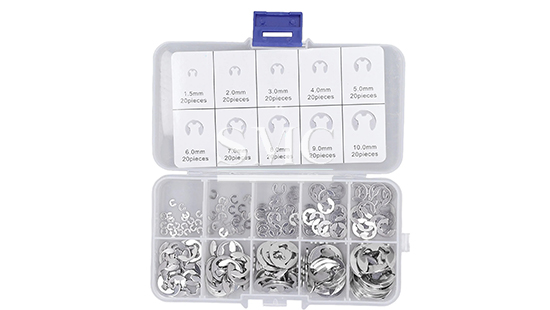

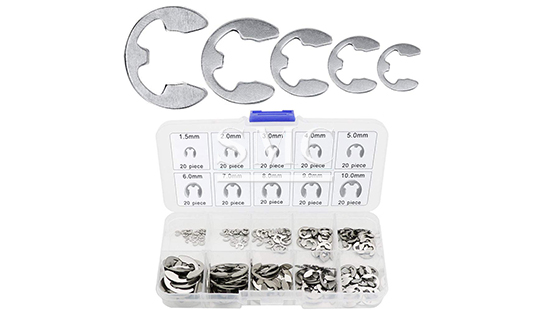

Package For E-type Retaining Ring (E-Clip):
Shanghai Metal Corporation Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1)SMC Standard
2)Customization
here
for
price
