Aluminum Decoration Material

Fluorocarbon Aluminum Veneer

    Thickness: 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm, 4.5mm, etc.


    Maximum size of forming parts: 7500mm*1200mm*2200mm(L*W*H)

Inroduction of Fluorocarbon Aluminum Veneer:

Fluorocarbon aluminum veneer is a type of advanced decorative material which is prevailing and has been widely used in indoor applications as well as external walls in recent years. It is made of a thick aluminum panel which has been sprayed with fluorocarbon on the surface in order to protect it from erosion due to ultraviolet radiation, temperature, and the atmosphere. The veneer body is light, with a convenient installation structure, notable anti-bending strength, and good wind resistance performance. According to the cutting size and the height of building, aluminum veneers with the thickness of 2.0-3.0mm are usually adopted. The material is easy for processing into different forms with fair material pricing, and the application of reinforced bar technology improves the capacity of aluminum veneer to withstand wind load and thus makes it possible to process aluminum veneer into super-normal sizes.

Specifications of baseplate:
Thickness: 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm, 4.5mm, etc.
Maximum size of forming parts: 7500mm*1200mm*2200mm(L*W*H)

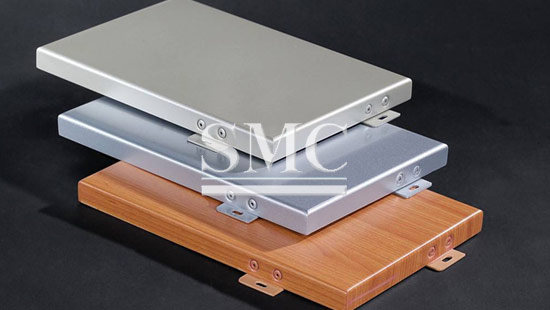

Structure and Material of Aluminum Veneer:

The aluminum veneer mainly consists of faceplate, stiffener, and bracket, etc. On the back side of the aluminum panel, the stiffener and bracket is connected firmly by stud welding which gurantees the flatness and strength. In order to gurantee the product quality, our company inspects all the raw materials selected according to relative international and national standards. Fluorocarbon coatings are all famous brands such as American PPG, Holland Azko Nobel and Korean KCC, etc. Which ensures reliable quality and outstanding quality.

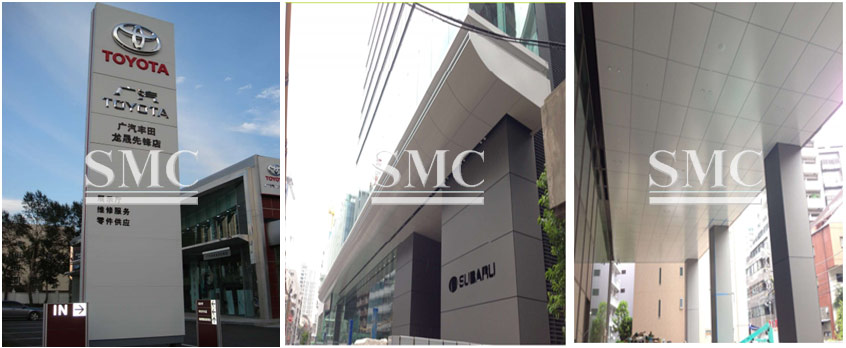

Scope of Application:

Building curtain walls

Indoor decoration





Ceiling of vehicle and ship



Features of Fluorocarbon Aluminum Veneer:

Decoration: Rich colors, diverse styles and strong ornamentality can meet requirements of modern buildings on a variety of colors.

Anti-corrosion: The main component of fluorocarbon polymer coating is fluorocarbon resin Kynar500 with durable binding and stable molecular structure. Fluorocarbon aluminum veneer can be against the erosion of wind, rain, industrial waste gas and acid rain, etc. for a long time and prevent buildings from discoloring, fading, peeling, cracking and chalking, etc. And we gurantee free warranty for outdoors of 15-20years.

Anti-thunder: It can serve as a good conductor of electricity to quickly transfer the huge current of thunderstrike into underground with the ground-ing system of buildings so as to ensure the safety.

Environment friendly: It has low pollution and self-cleaning capacity on the surface which is difficult for pollutants to attach and thus keeps buildings clean for a long time, easy for maintenance and cleaning.

Ease for consitruction: Light dead weight, high strength and quick and convenient installation and construction.
