Thickness: 0.12mm - 3.0mm



    Width: 15 - 600mm, or as per client’s request



    Coil ID: 100/300/400/508/610mm

There are two typical galvanizing ways to obtain a zinc coating: hot dip galvanizing and electrogalvanizing. Hot dip galvanizing is the process that steel is immersed into molten zinc bath to get a zinc coating surface. This not only helps protect steel from rust and corrosion, but also gives the steel a shiny attractive appearance. Electrogalvanizing is the process that uses electrolysis to coat the steel with zinc, which is neither cost-effective nor environmentally friendly. It is hardly to find electrogalvanized steel in our lives nowadays.

Shanghai Metal Corporation is a professional manufacturer and supplier of Hot Dip Galvanized Steel Strip with high quality and reasonable price. If you want to know more about Hot Dip Galvanized Steel Strip products or Hot Dip Galvanized Steel Strip price please feel free to contact us, we will reply you within 24 hours.





  • Coil weight: from 50kg to 7000kg, all available
    Coil ID: 100/300/400/508/610mm
    Zinc coating weight: 30g/m2 - 600g/m2
    Spangle: big spangle, normal spangle, small spangle, non-spangle
    Surface treatment: chemical passivating treatment, oils, passivating + oils




1. Normal grade & application:

Type

Steel Quality

Steel Grade

Standard

Equivelent Steel Grade

Application

low carbon steel and super low carbon steel

commercial quality CQ

DX51D+Z

GB/T 2518-2008
EN10327-2006
EN10326-2006

SGCC

general forming metal products

DX51D+ZF

drawing quality DQ

DX52D+Z

SGCD1

drawing metal products

DX52D+ZF

JAC270C

deep drawing quality DDQ

DX53D+Z

SGCD2

deep drawing metal products

DX53D+ZF

JAC270D

extra-deep drawing quality EDDQ

DX54D+Z

SGCD3

extra-deep drawing products

DX54D+ZF

JAC270E

carbon structural steel and low alloy steel

commercial quality high speed steel CQHSS

S220GD+Z



structural steel

S250GD+Z

SGC340

S280GD+Z

SGC400

S320GD+Z

SGC440

S350GD+Z

SGC590

S550GD+Z







2. Mechnical property:

Steel Grade

Yield strength MPA

Tensile strength MPA

Elongation A80mm%  min

180° Bending Test d=a

DX51D+Z

/

270-550

22

no drop

DX52D+Z

140-300

270-420

26

no drop

DX53D+Z

140-260

270-380

30

no drop

DX54D+Z

120-220

270-350

36

no drop

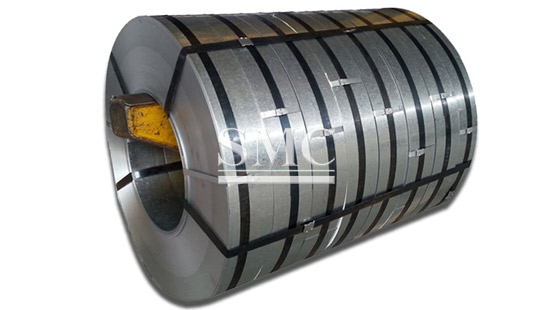

Packaging of Galvanized Steel Strip

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization


Applications of Galvanized Steel Strip:

1) Construction and building: roofing, ventilating duct, handrail, partition panel, etc.

2) Further processing: coating base plate

3) Electric appliance: refrigerator, washing machine, recorder, microwave, etc.



What are the advantages of Galvanized Steel?

Because of permanently and successive zinc/iron alloy layers, galvanized steel offers many benefits:

1) Corrosion Resistance: the zinc coating surface protects the base steel not only by providing barrier to corrosion elements, but also by the sacrificial nature of the coating. Galvanized steel often remains in working order with little maintenance for 40 years or more.

2) Excellent Surface Appearance

3) Formability: it can be simply bend to parts with deep drawing requirements

4) Paintability: it can be painted with different colors

5) Weldability: it is accepted various welding practices



What are the disadvantages of Galvanized Steel?

In spite of many benefits, galvanized steel is not always an ideal choice. Galvanized steel cannot be used underground without being properly covered, which can be inconvenient for many jobs.


Where do we use Galvanized Steel?

It is primarily used in the construction industry, such as roofing, wall cladding, and support beams. It is also used in the automotive industry, due to its enhanced paintability, weldability and corrosion resistance. Moreover, it is an essential material for white goods application, such as refrigerators, air-conditioners, washers, microwaves, vending machines and audio visual systems.
