Diameter: 60mm – 800mm
Grade: UHP (Ultra High Power)

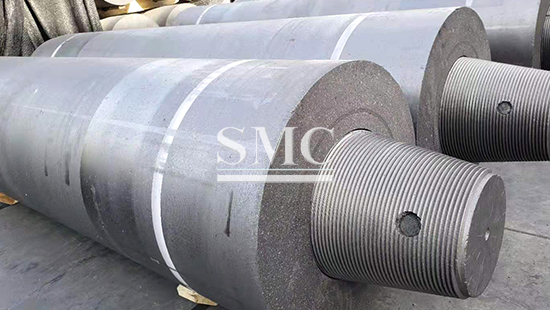

Graphite electrode is an important carbon material that is widely used in industrial production and scientific research due to its unique physical and chemical properties. Shanghai Metal Corporation is a professional manufacturer and supplier of graphite electrode with high quality and reasonable price..
Technical Information of Graphite Electrode:
Name |
Pole diameter |
Pole length |
Pole weight (reference value) |
|||
Diameter x length |
Maximum |
Minimum |
Maximum |
Minimum |
Pole product weight (excluding nipple) |
|
inch |
mm |
mm |
mm |
mm |
mm |
kg |
14×60 |
350×1500 |
357 |
352 |
1550 |
1400 |
253 |
14×72 |
350×1800 |
1875 |
1700; |
304 |
||
14×96 |
350×2400 |
2475 |
2275 |
406 |
||
16×60 |
400×1500 |
409 |
403 |
1550 |
1400 |
334 |
16×72 |
400×1800 |
1875 |
1700 |
395 |
||
16×96 |
400×2400 |
2475 |
2275 |
532 |
||
18×72 |
450×1800 |
460 |
454 |
1875 |
1700 |
496 |
18×96 |
450×2400 |
2475 |
2275 |
665 |
||
18×110 |
450×2700 |
2850 |
2550 |
766 |
||
20×72 |
500×1800 |
511 |
505 |
1875 |
1700 |
614 |
20×84 |
500×2100 |
2175 |
1975 |
715 |
||
20×96 |
500×2400 |
2475 |
2275 |
824 |
||
20×110 |
500×2700 |
2850 |
2550 |
927 |
||
22×84 |
550×2100 |
562 |
556 |
2175 |
1975 |
873 |
22×96 |
550×2400 |
2475 |
2275 |
995 |
||
24×84 |
600×2100 |
613 |
607 |
2175 |
1975 |
1040 |
24×96 |
600×2400 |
2475 |
2275 |
1190 |
||
24×110 |
600×2700 |
2850 |
2550 |
1340 |
||
26×110 |
650×2700 |
663 |
657 |
2850 |
2550 |
1580 |
28×110 |
700×2700 |
714 |
708 |
2850 |
2550 |
1830 |
30×110 |
750×2700 |
765 |
759 |
2850 |
2550 |
2060 |
32×110 |
800×2700 |
816 |
810 |
2850 |
2550 |
2450 |

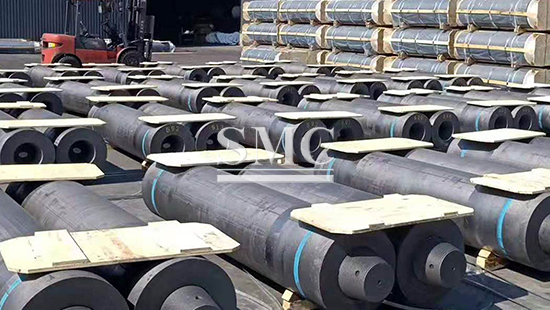

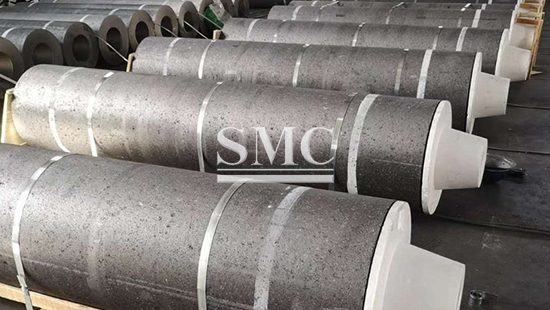

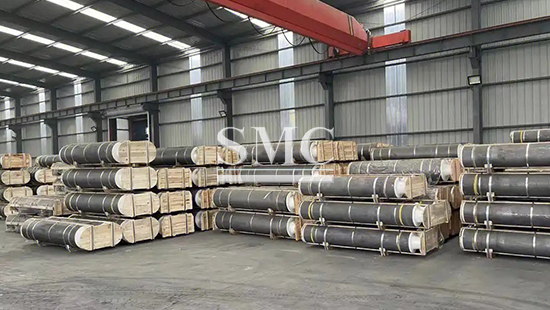

Packaging of Graphite Electrode:
