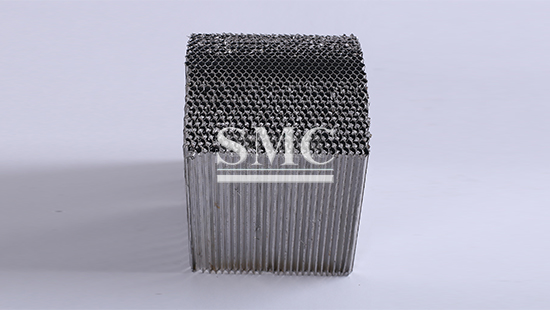

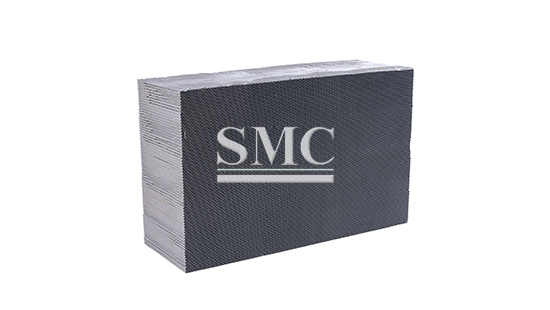

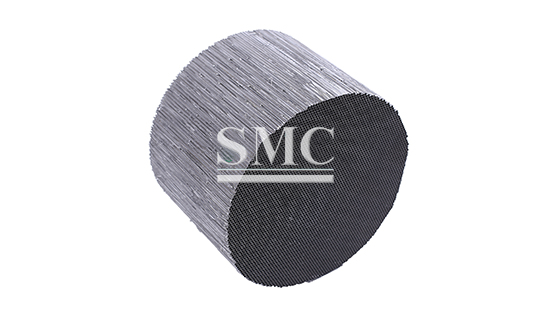

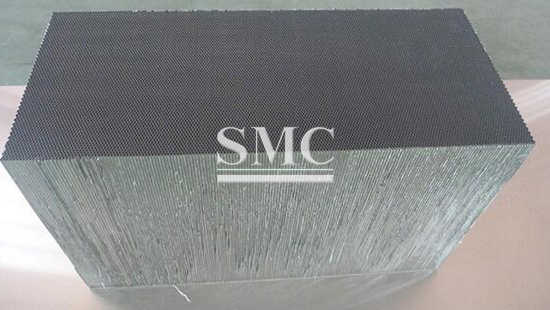

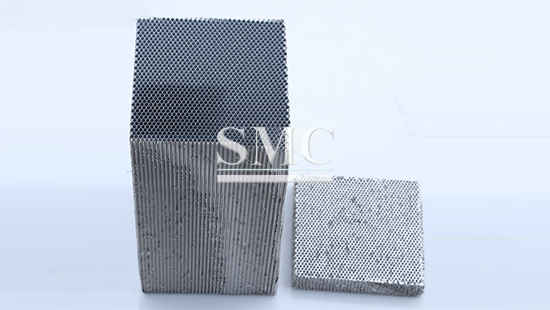

Aluminum Decoration Material

High Strength Energy Absorbing Honeycomb

Aluminum foil model: 3003H18/5052H18/6061 etc.

Honeycomb core cell size: 1~6mm

Specification: 100~1000mm

Honeycomb core thickness: 100~1000mm

Product Detail | Technical Information | Packaging

Product Detail

Shanghai Metal Corporation is a leading High strength energy absorbing honeycomb manufacturer and supplier.

The density of high-strength honeycombs is relatively large. High-strength honeycombs made of carbon steel, stainless steel or alloys can also be called high-density honeycombs. They are generally used in key parts of load-bearing parts or absorbers that have special mechanical properties such as high strength and stiffness. Can be installed. Such as aircraft horizontal tail, canards and rudders, collision energy absorption devices for rail transit and road transportation, etc.

If you want to know more about our High strength energy absorbing honeycomb or other related honeycomb panel products price, please feel free to contact us, we will reply you within 24 hours.

High-strength honeycomb has a larger density and a more complex manufacturing process, so density tolerance control will be much more difficult. The manufacture of high-performance, high-density honeycombs can usually be achieved by changing the cell grid or increasing the wall thickness:
Very small cells: This high-strength honeycomb structure is often called microporous honeycomb, and the side length of the cells is often less than 1mm. According to the calculation of the honeycomb equivalent density formula, it can be concluded that under the same cell conditions, every time the cell side length of the honeycomb is reduced by one-half, the density increases by nearly 2 times. As a result, microporous honeycombs can easily reach the level of medium- and high-density honeycombs.
Extra thick cell walls: Taking aluminum honeycomb as an example, the thickness of honeycomb aluminum foil usually does not exceed 0.2mm, and aluminum foils of 0.04mm, 0.06mm, 0.08mm, 0.10mm and 0.15mm are often used. In order to achieve high strength requirements, thick-walled plates are usually stamped and formed by brazing, laser welding or special bonding. This kind of honeycomb made by forming method has a density of more than 150kg/m3. Using corrugated 301 stainless steel honeycomb with a plate thickness of 0.381mm, the density can reach 2917kq/m3

1. Light weight, thermal insulation, heat insulation and sound insulation;
2. It has high strength and good rigidity, and can withstand 12-13 times the pressure per square meter, up to 50 tons, far exceeding the national standard of 1 ton of pressure per square meter;
3. It is beneficial to environmental protection and protects human health; it protects greening and protects household soil;
4. It can be recycled, reused, biodegradable, and has no secondary pollution;
5. No pests or diseases;
6. Easy to carry and operate, improve transportation efficiency; reduce labor intensity;
7. Not easy to damage, can reduce costs

Can be installed as aircraft horizontal tail, canards and rudders, collision energy absorption devices for rail transit and road transportation, etc.

We can manufacture microporous honeycombs with cell sizes of 1mm or less, as well as stainless steel honeycombs of various sizes. For high-strength honeycombs of other special materials, please consult the salesperson.

Packaging of High strength energy absorbing honeycomb

Shanghai Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Shanghai Metal Standard

2) Customization
