Multi-Core Tube
Material: SS304, SS316, SS316L
Length Standard: 100-300 m, up to 600 m packed on a wooden drum
Tube diameter: 6 - 15 mm (1/4” - 1/2”)
Tube wall thickness: 0.5 - 2.0 mm
Shanghai Metal Corporation is a leading Multi-core tube supplier and manufacturer.

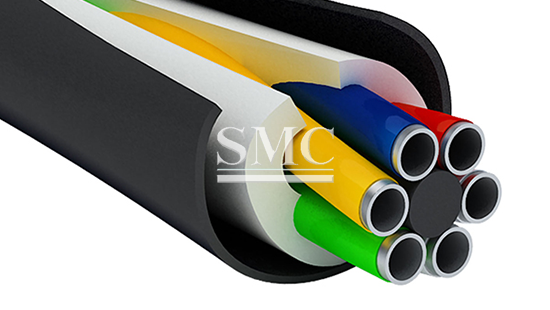

The multi-core tube consists of one to nine stainless steel laid up spirally inside an extruded outer PVC sheath. For easy identification and protection purposes each individual tube is PVC sheathed in a different color. The extruded outer sheath is made of oil and seawater resistant, weatherproof, flame retardant, corrosion and acid resistant PVC.
-
The multi-core tube (outer sheath) is continuously marked at every one meter throughout the entire length for easy installation. Heat shrinkable products provide complete water sealing, abrasion and corrosion protection under all conditions.
All tubing products are certified by major classification agencies including DNV GL, ABS, LRS and BV etc. The multicore tubes are extensively tested, including, eddy current, tensile & hardness, hydro & air pressure, as well as air leak testing.
-
-
-
Reduce installation time and save space by bundled tubings
Dramatically cut down on installation and inspection time
Space-saving and design cost-effective
Tube protection by triplicate sheath and filler system from outside shock
Simply solve tube corrosion problem as economical alternative
-
Valve Remote Control (VRC) Line System
Deck Machinery Remote Control Line System
Fixed Gas Detection Sensing Line
Heat Tracing Line
Pressure Sensing Line
Sampling & Drain Line
Fire Fighting System Control Line
-
If you want to know more about our Multi-core tube products or price please feel free to contact us,we will reply you within 24 hours.

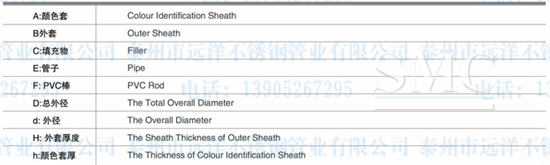

Technical information of muti-core tube:

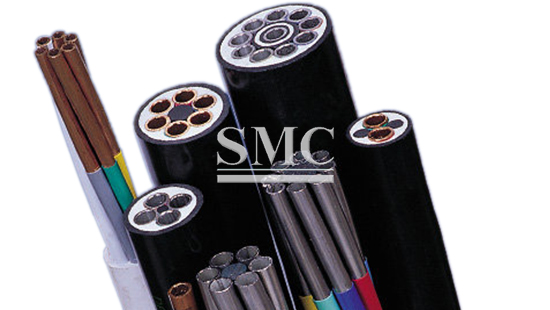

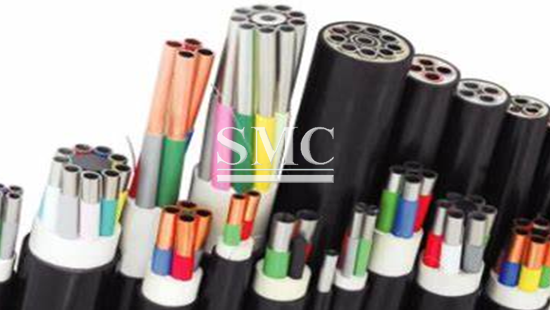

More information of multi-core tube:
Packaging of multi-core tube:
