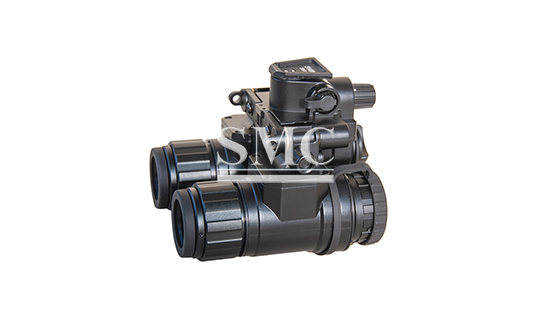

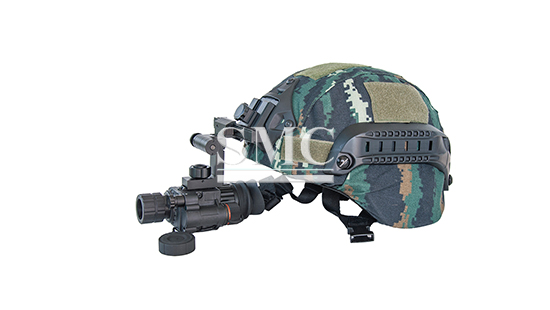

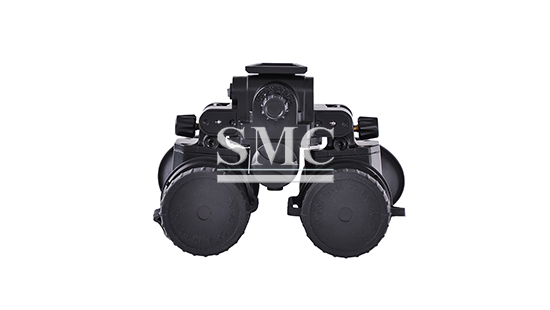

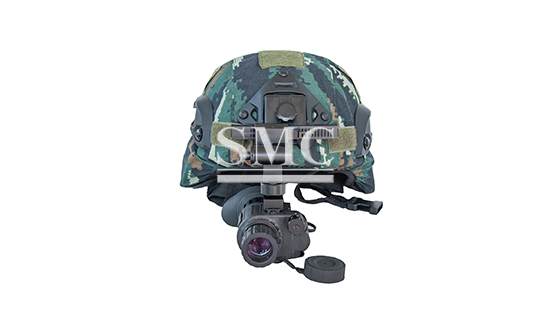

Night-Vision Device
Type: PVS14M, PVS3140, PVS3150
Shanghai Metal Corporation is a professional manufacturer and supplier of Night-Vision Device with high quality and reasonable price.
The products cover all aspects of optical processing and measurement, with measuring accuracy ranging from precision to high precision. The products under measurement range from white light, low light to infrared, forming several series and dozens of varieties. Our night vision has the advantages of small size, light weight, high resolution, change the objective lens can change the magnification, with 1 and 4 times two magnification objectives for you to choose, but also according to user requirements equipped with other focal length digital cameras, camcorders and CCD cameras, can also be used alone.
If you want to know more about Night-Vision Device price please feel free to contact us, we will reply you within 24 hours
Technical Information of Night-Vision Device:
|
Model |
PVS14M |
|
Magnification |
1x |
|
Field of view/FOV |
40 degrees |
|
Exit pupil distance |
26mm |
|
Exit pupil diameter |
7mm |
|
Diopter |
﹣4~+2 |
|
F number |
F1.2 |
|
Image intensifier tube type |
super second generation |
|
Resolution |
57~64 |
|
Continuous working time |
30 hours |
|
Weight |
325g |
|
Dimension |
116x50x60 |
|
Operating temperature |
﹣20~+40℃ |
|
Strong light protection function |
Have |
|
Infrared auxiliary lighting |
Have |
|
Focus range |
250mm~∞ |
|
Waterproof level |
IP65 |
|
Battery type |
1 section CR123 |
|
Model |
PVS3140 |
PVS3150 |
|
Type of product |
Dual tube NVGs |
|
|
Power on/off |
A flip of the switch in one direction |
|
|
Power supply |
1pc CR123A battery/4pcs CR123A battery pack |
|
|
Battery voltage range/Vol |
1.4~4.2V |
|
|
Installation method |
Wilcox/L4G24 mounts |
|
|
Control method |
OFF/ON/IR/AUTO |
|
|
Electricity consumption |
＜0.1W |
|
|
Battery capacity |
800~3200mAh |
|
|
Operating hours |
≥70Hrs |
|
|
Magnification |
1X±2.5% |
|
|
Full field of view/FOV |
40°±2° |
50°±2° |
|
Image intensifier tube/ITF |
Gen2+Gen3 |
|
|
Optical-Distortion |
3%Max |
|
|
Focus Range |
250mm~0 |
|
|
Focus method |
Manual |
|
|
Eye relief |
25mm |
|
|
Exit pupillary diameter |
7mm |
7mm |
|
Diopter |
﹣4~+3 |
﹣5~+3 |
|
Interpupillary adjustment |
54~80mm |
|
|
IR Illuminator |
850nm 20mW |
|
|
Humidity range |
5%~95% |
|
|
Dimension(Eye guard is excluded) |
112x105x86mm |
|
|
Weight(included battery) |
490g |
≤560g |
|
Operating temperature |
﹣40~50℃ |
|
|
IP Rating |
IP67 |
|
Packaging of Night-Vision Device:
